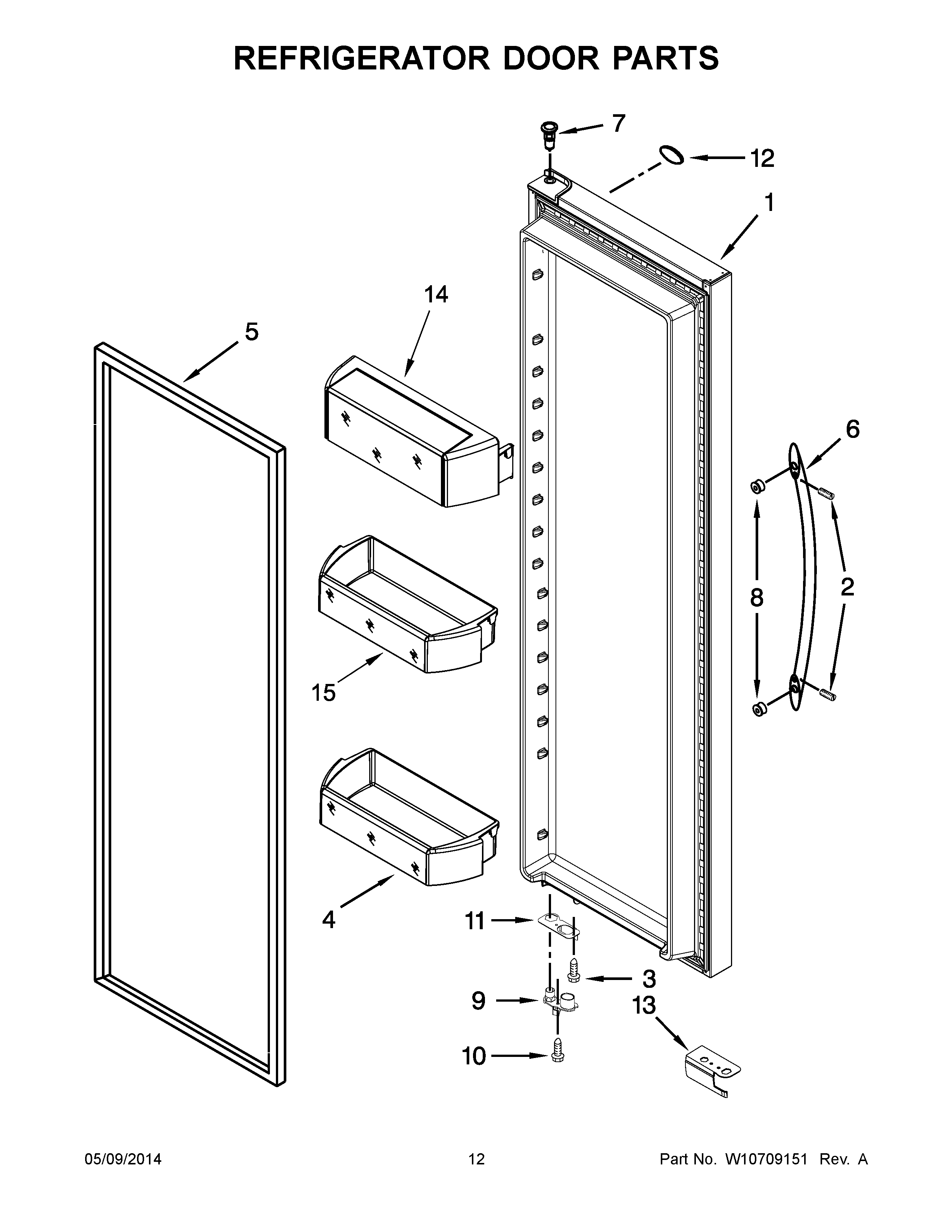

GSC25C6EYY03 07 – REFRIGERATOR DOOR PARTS

GSC25C6EYY03 07 – REFRIGERATOR DOOR PARTS

Written by

in

GSC25C6EYY03 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10637804 Whirlpool Refrigerator Door FIP
2SCREW
3SCREW
4WPW10335220 Whirlpool Refrigerator Cantilever Bin
5W10355588 Whirlpool Refrigerator FIP Gasket
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10511972 Whirlpool Refrigerator Nameplate
13W11661847 Whirlpool Wire Cover
14ASSEMBLY, DOOR COMPARTMENT
15BIN, SHALLOW DOOR
