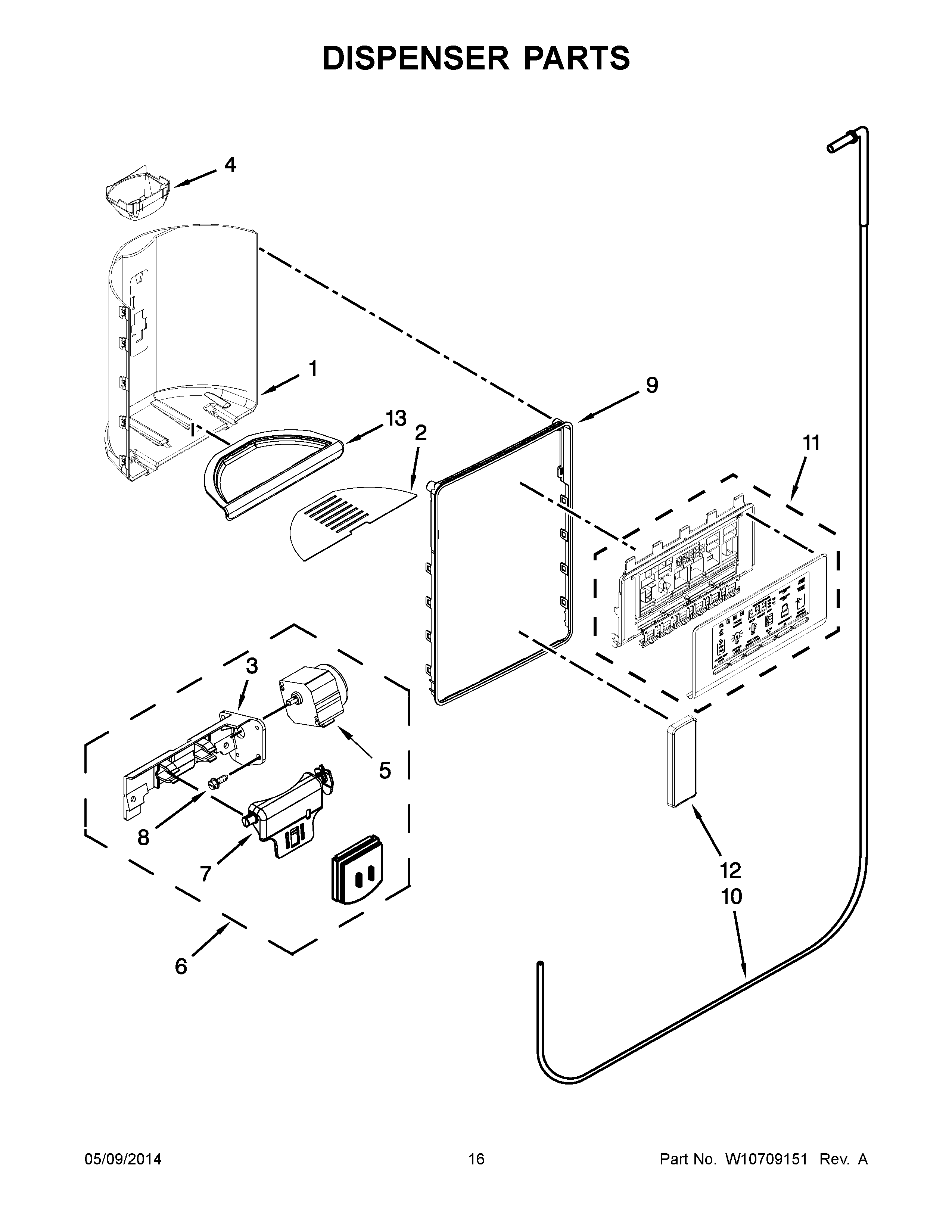

GSC25C6EYY03 09 – DISPENSER PARTS

GSC25C6EYY03 09 – DISPENSER PARTS

Written by

in

GSC25C6EYY03 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10838126 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10448931 Whirlpool Refrigerator Dispenser Trim
10W11619800 Whirlpool Refrigerator Water Tube
11W11027664-includeCORE Whirlpool W11027664 Refrigerator UI Panel with Core
12WPW10370594 Whirlpool Refrigerator Pad
13W10276225 Whirlpool Refrigerator Drip Tray
