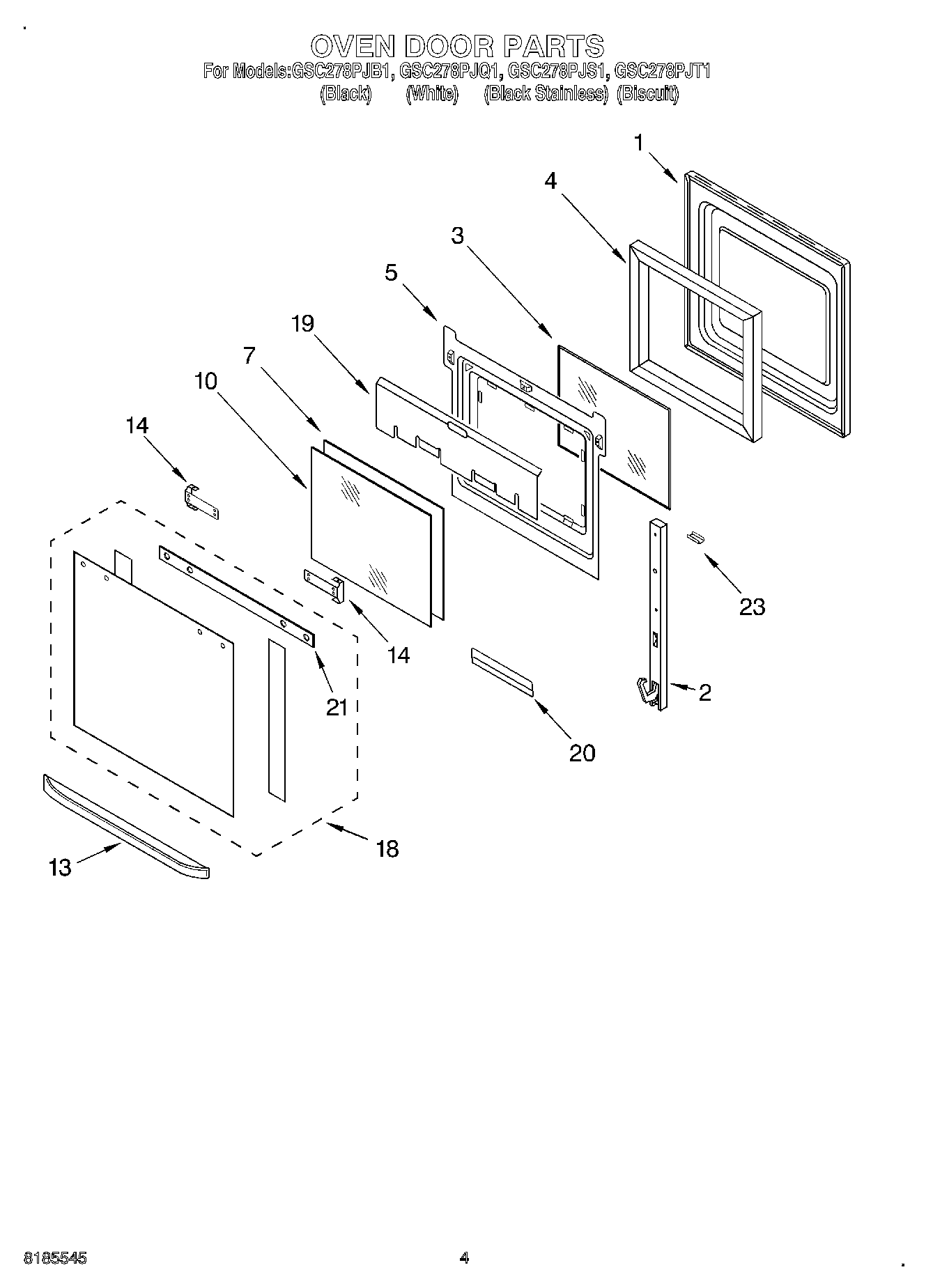

GSC278PJB1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP4449257 Whirlpool Door Glass
13	Door Handle (Biscuit Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Bracket, Handle
14	Screw
18	Door Glass, Assy (White Model)
18	Door Glass, Assy (Black, Stainless Model)
18	Door Glass Assy (Biscuit)
18	Door Glass Assy (Black Model)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
