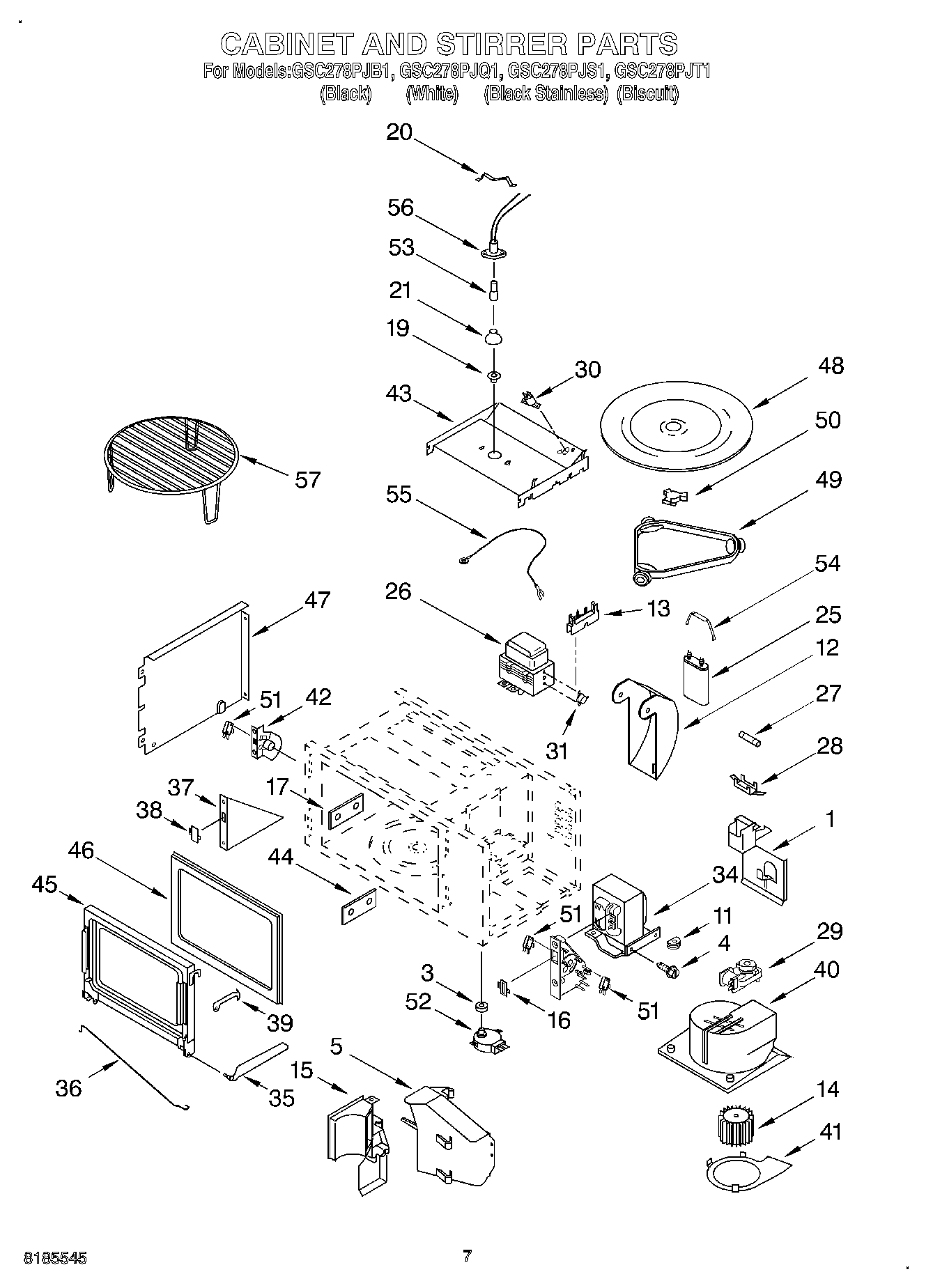

GSC278PJB1 06 – CABINET AND STIRRER

GSC278PJB1 06 – CABINET AND STIRRER

Written by

in

GSC278PJB1 06 – CABINET AND STIRRER

Products

PositionProduct
1Bracket, Capacitor
3Rubber Ring
4Screw
5Air Duct, Magnetron
11Damper
12Duct, Inlet
13Insulation, Switch
14Fan Wheel
15Duct, Air
16Block, Slide
17Cover Plate, Upper
19W11193483 Whirlpool Microwave Lamp Lens
20W10465869 Whirlpool Microwave Spring
21423107022541 Whirlpool Microwave Reflector
25WP4375020 Whirlpool High Voltage Capacitor
26W10245183 Whirlpool Microwave Magnetron
27WP4375321 Whirlpool Microwave Fuse
28W10245194 Whirlpool Microwave Fuse Block
29MOTOR-FAN
30Thermostat
31WP4375079 Whirlpool Microwave Thermostat
34WP4375286 Whirlpool Microwave Transformer
35WP4375324 Whirlpool Microwave Door Hinge
35WP4375323 Whirlpool Microwave Door Hinge
36WP4451008 Whirlpool Microwave Spring
37Bracket, Hinge (Right)
37Bracket, Hinge (Left)
38Inlet
39Plate, Grill
40Fan Cap
41Fan Cap Bottom
42W10727408 Whirlpool Microwave Switch
43Isolation Plate
44Cover Plate
45Plate, Door
46Inner Frame
47Side Plate (Left)
47Side Plate (Right)
48W11373838 Whirlpool Glass Tray
49Ring, Turntable
50WP8183788 Whirlpool Microwave Turn Shaft
51W10211972 Whirlpool Microwave Switch
52W10642989 Whirlpool Microwave Oven Turntable Motor
53WPW10440740 Whirlpool Microwave Light Bulb
54WPW10687786 Whirlpool Microwave Diode
55Cable
56Holder, Lamp
574452220 Whirlpool Microwave Rack
