GSC278PJQ3 01 – OVEN, LITERATURE

GSC278PJQ3 01 – OVEN, LITERATURE

Written by

in

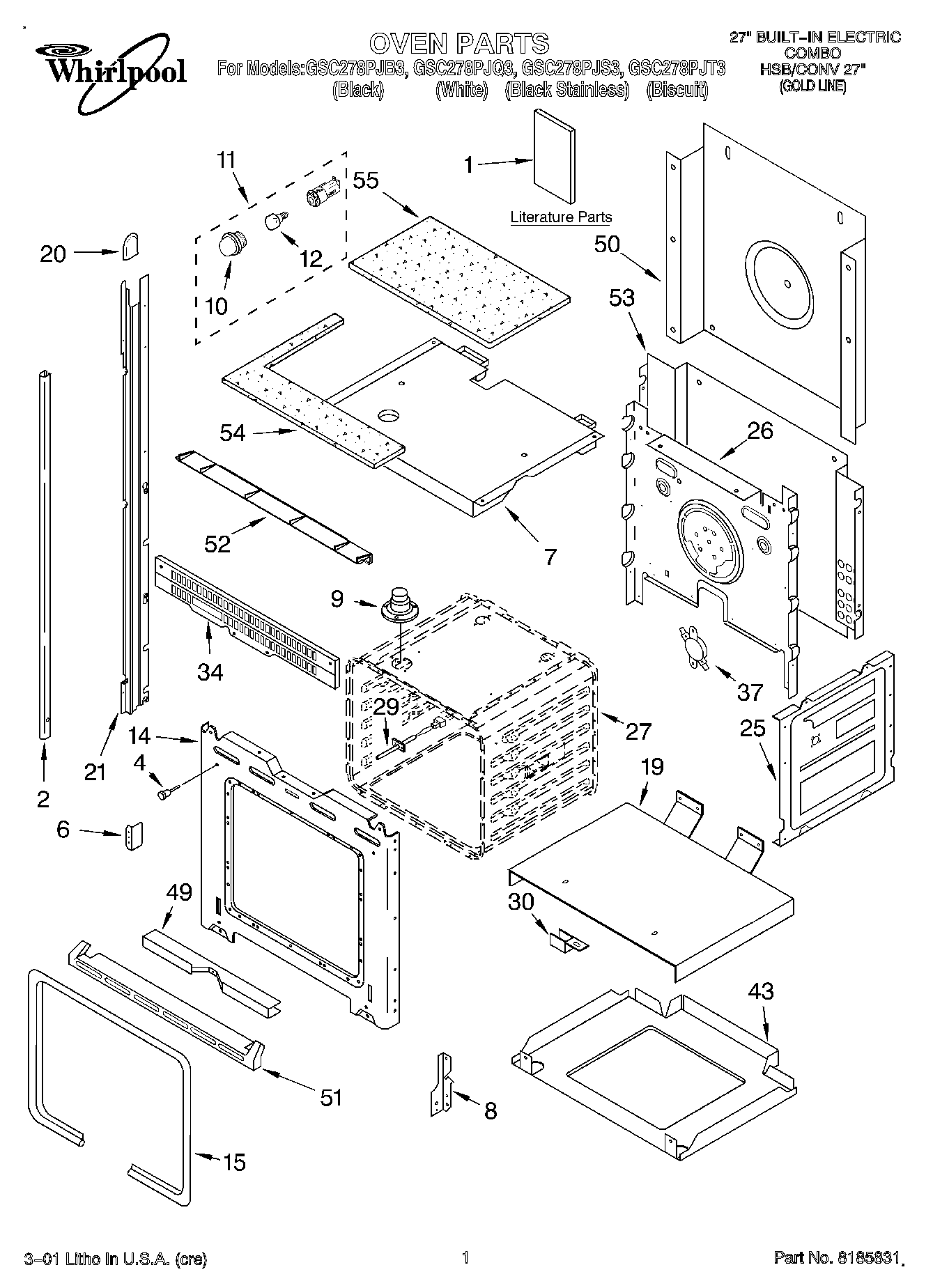

GSC278PJQ3 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (Oven))
1WP3400832 Whirlpool Screw
1Cookbook, T/C Ovens
1Literature Parts (Use & Care Guide) (Microwave)
1Literature Parts (Chart, Speed Cook (Label))
1Literature Parts (Tech Sheet)
2Trim, Side Right Hand (White)
2Trim, Side (RH Stainless Steel)
2Trim, Side (LH Stainless Steel)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (Black)
2Trim, Side Right Hand (Biscuit)
2Trim, Side (White)
2Anchor, Spring (2)
2(Trim, Side Left Hand) (Biscuit)
44448520 Whirlpool Oven Bumper
6Bracket, Support
7Top, Chassis
8Reciever, Hinge (Right Hand)
8Reciever, Hinge (Left Hand)
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
34WP8304106 Whirlpool Oven Vent
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WP8281236 Whirlpool Screw
51WPL 4455146
51WPL 4455446
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (White)
51Trim, Bottom (Black)
52Vent, Control Panel (Stainless Steel Model)
53WPL 4451755
54WPL 4452492
55WPL 4452491
55WPL 4449315
55WPL 4450364
