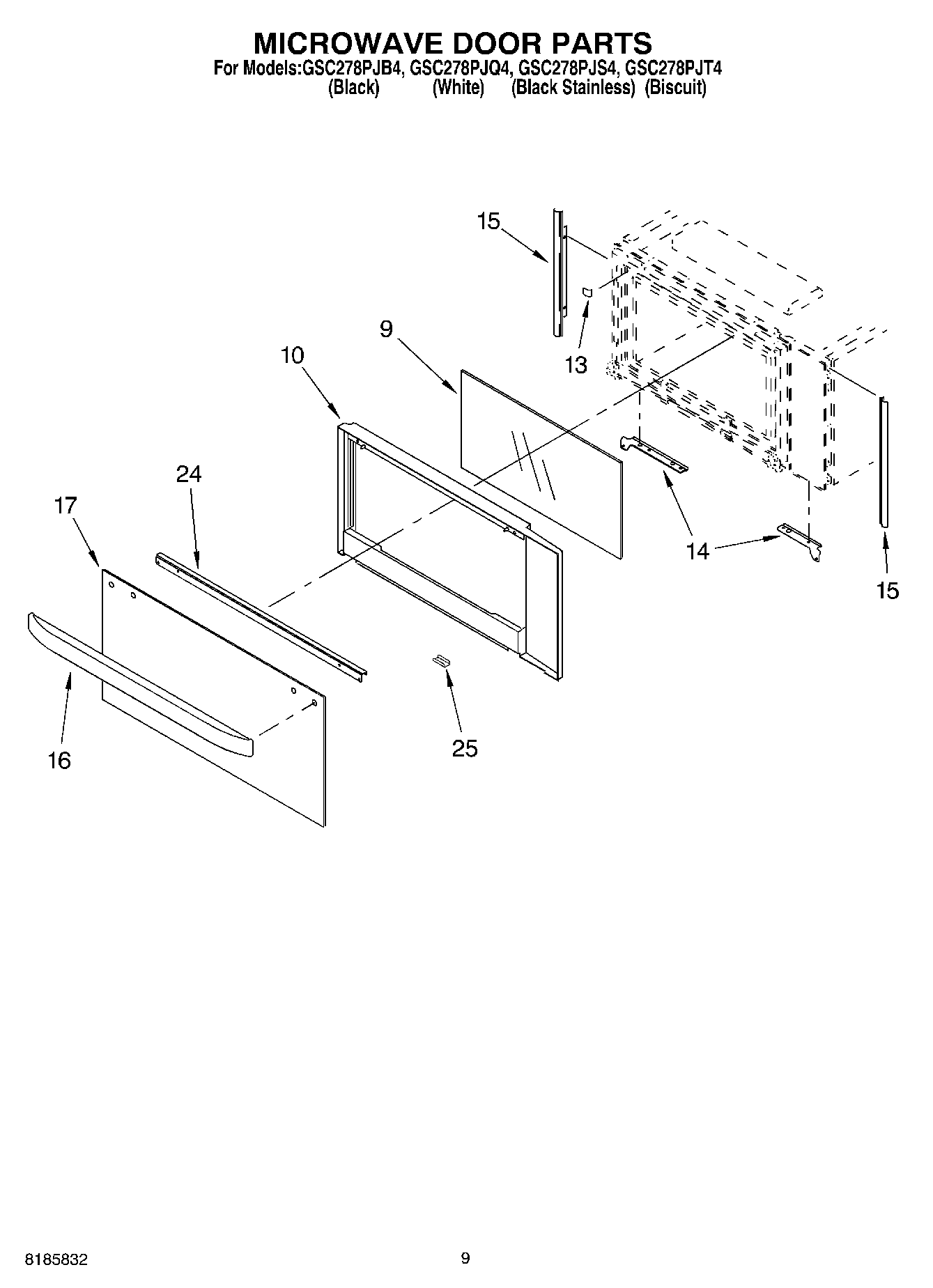

GSC278PJT4 07 – MICROWAVE DOOR

Products

Position	Product
9	Glass, Middle
10	Frame, Door
13	Tape, Foam
14	Bracket, Mounting (Left Side)
14	Bracket, Mounting (Right Side)
15	Filler, Side
15	WP4449809 Whirlpool Screw
16	Handle, Door (White Model)
16	Handle, Door (Black Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (Black Stainless)
24	Bracket, Handle
24	Screw
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
