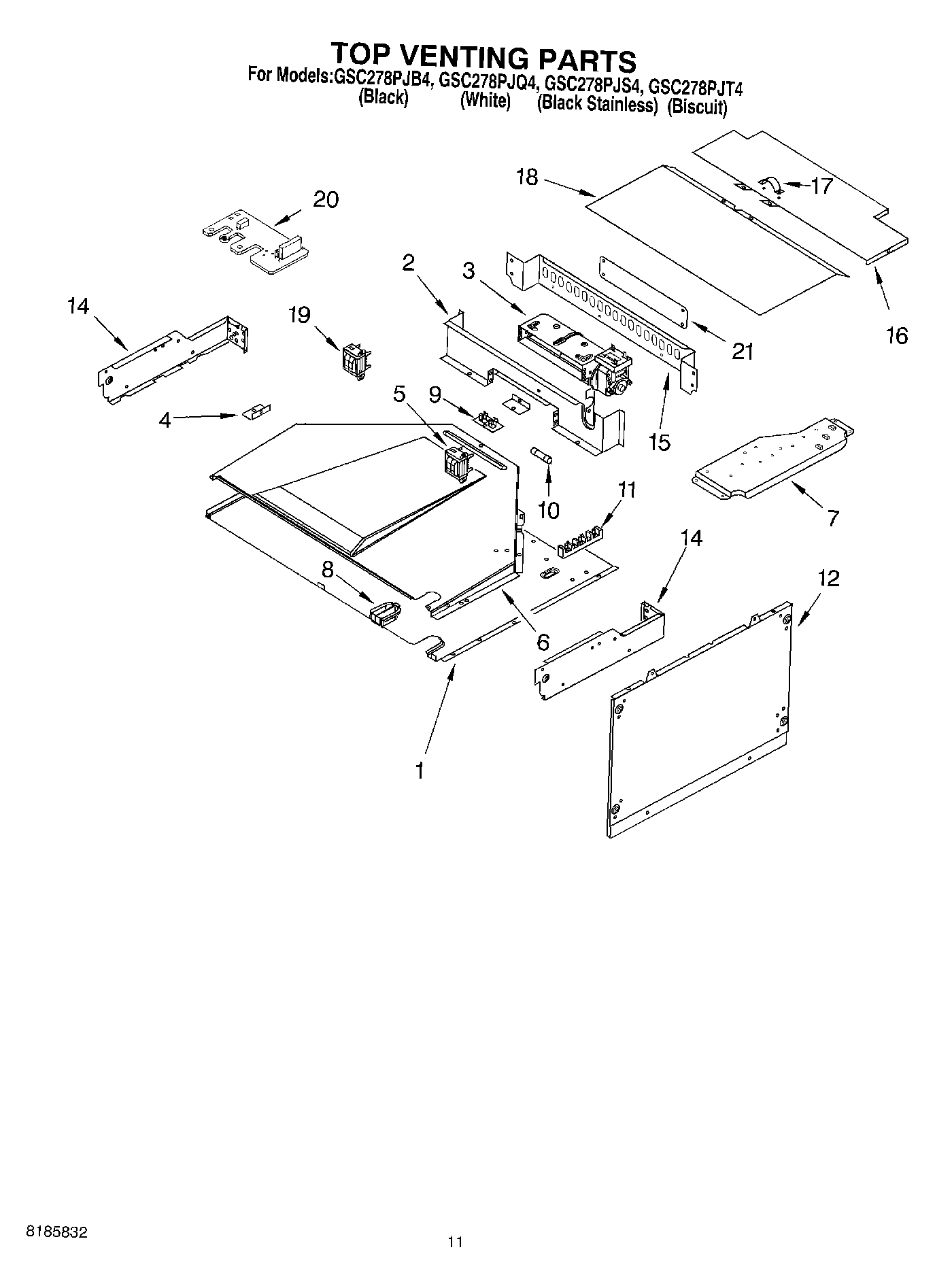

GSC278PJT4 09 – TOP VENTING, OPTIONAL

GSC278PJT4 09 – TOP VENTING, OPTIONAL

Written by

in

GSC278PJT4 09 – TOP VENTING, OPTIONAL

Products

PositionProduct
1Cover, Top
1WP4450118 Whirlpool Nut
2Baffle, Blower
3489392 Whirlpool Refrigerator Screw
3Blower
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8WP112432 Whirlpool Nut Assembly
8Grommet
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
12Side, Combo
12WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control Panel
20Suppressor
2118 Ga. 80~c Rating (Red)
21Wire (14 Ga. 150 c Green)
21Harness, Mai
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Yellow)
21261900 Whirlpool Microwave Spray
21Wire (14 Ga. 200 c Brown)
21Wire (12 Ga. 150 c Black)
21WPL 591014
211
214450950 Whirlpool Oven Conduit
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
2172032 Whirlpool Touch Up Paint Black
21285006 Whirlpool Spray
21WPW10339879 Whirlpool Wire Tie
214450800 Whirlpool Oven Screw
21350930 Whirlpool White Spray Paint
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21WP4449809 Whirlpool Screw
21WP482338 Whirlpool Refrigerator Adhesive
21814381 Whirlpool Pin
21WP4448950 Whirlpool Screw
21242831 Whirlpool Oven Wire
21Spacer, Harness
21Plate, Cover
2116515 Whirlpool Clip
214452400 Whirlpool Microwave Wire Harness
21WPL 4452239
21Ground (M/W)
21Filler Kit (WH)
21Filler Kit (BL)
2172017 Whirlpool Appliance Touch-Up Paint White
