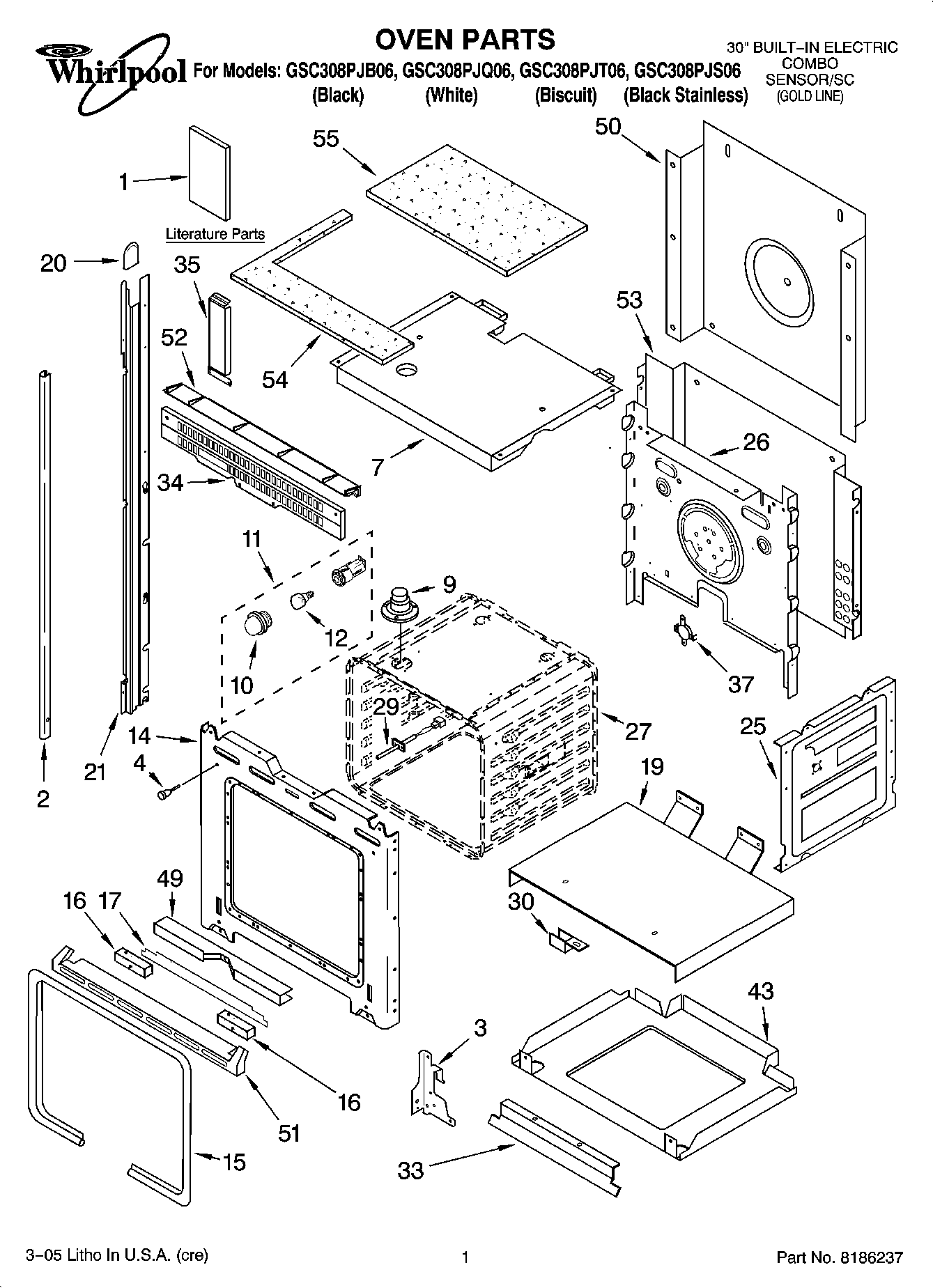

GSC308PJQ06 01 – OVEN PARTS

GSC308PJQ06 01 – OVEN PARTS

Written by

in

GSC308PJQ06 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide Microwave (English)
1Cookbook, WP Conv.
1Safe Cooking Tips
1Use & Care Guide Oven (English)
1Oven
1Tech Sheet (Oven)
1Installation Instructions
2Trim, Side Right Hand (Black)
2Trim, Side (RH Stainless Steel)
2(Trim, Side Left Hand) (Biscuit)
2Trim, Side Right Hand (Biscuit)
2WP694091 Whirlpool Screw
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Black)
2Trim, Side (LH Stainless Steel)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34Vent, Center
34WP4450038 Whirlpool Screw
35Extension Filler
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Screw)
51WPL 4455447
51WPL 4455445
51WPL 4455443
51WPL 4455147
52Vent-Cntrl Panel
53WPL 4451756
534452152 Whirlpool Oven Mounting Bracket
54WPL 4452492
55WPL 4452491
55W11684730 Whirlpool Insulation
55WPL 4450365
55WPL ARI72044A4
