GSC308PJQ4 01 – OVEN, LITERATURE

GSC308PJQ4 01 – OVEN, LITERATURE

Written by

in

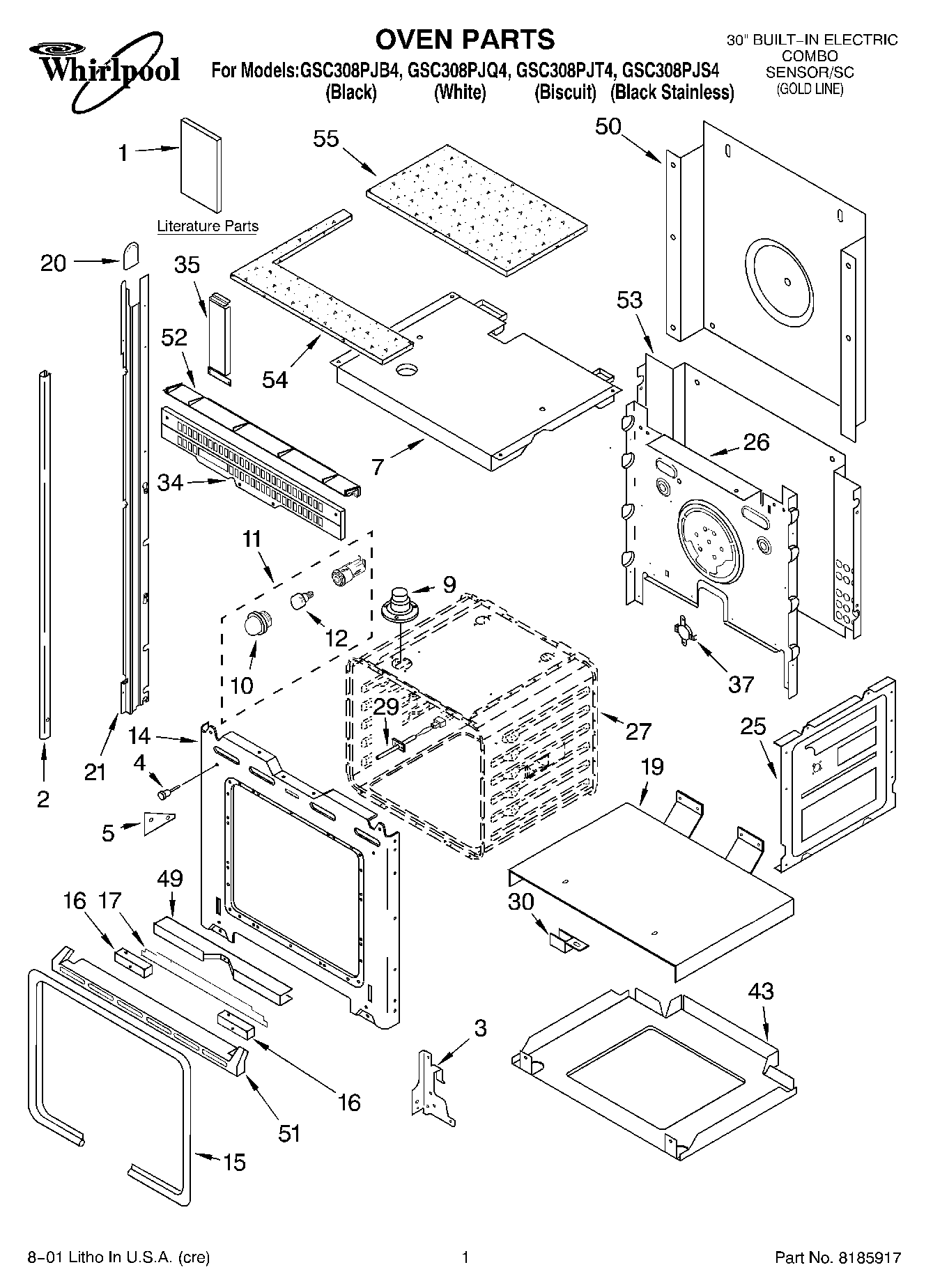

GSC308PJQ4 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Cookbook, T/C Ovens
1Literature Parts (Chart, Speed Cook (Label))
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide) (Microwave)
1Literature Parts (Microwave)
1Literature Parts (Use & Care Guide) (Oven Cooking Guide (Label))
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
2Trim, Side (LH Stainless Steel)
2Trim, Side (RH Stainless Steel)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (Biscuit)
2WP694091 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
34WPL 4451667
34WP4450038 Whirlpool Screw
35Extension Filler
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4455447
51WPL 4455445
51WPL 4455443
51WPL 4455147
51Trim, Bottom (Screw)
52Vent-Cntrl Panel
534452152 Whirlpool Oven Mounting Bracket
53WPL 4451756
54WPL 4452492
55WPL 4450365
55WPL 4452491
55W11684730 Whirlpool Insulation
