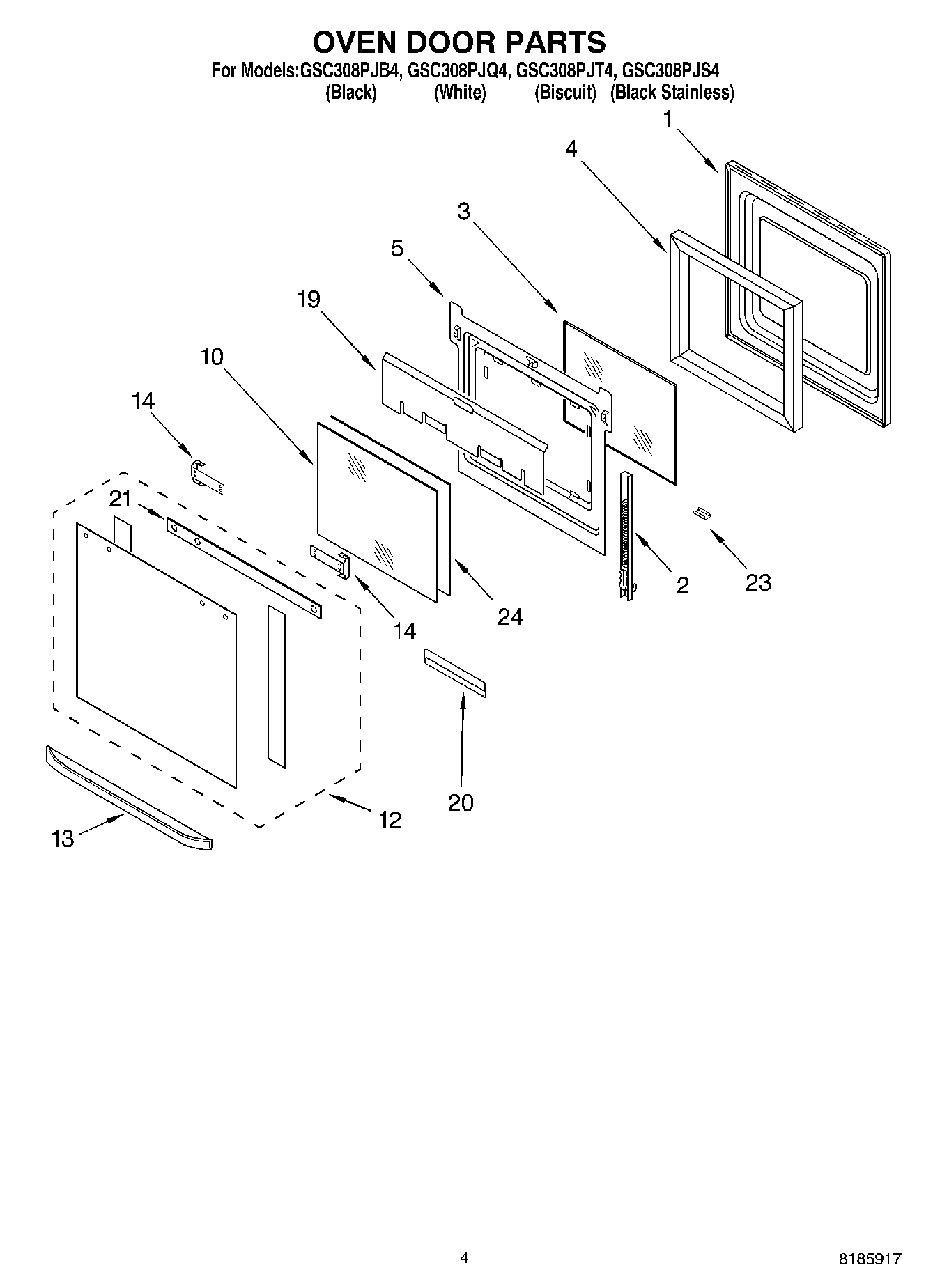

GSC308PJQ4 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	Hinge, Door (R.Side)
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760572 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
10	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy (White Model)
12	WP9759641 Whirlpool Outer Door Glass
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
