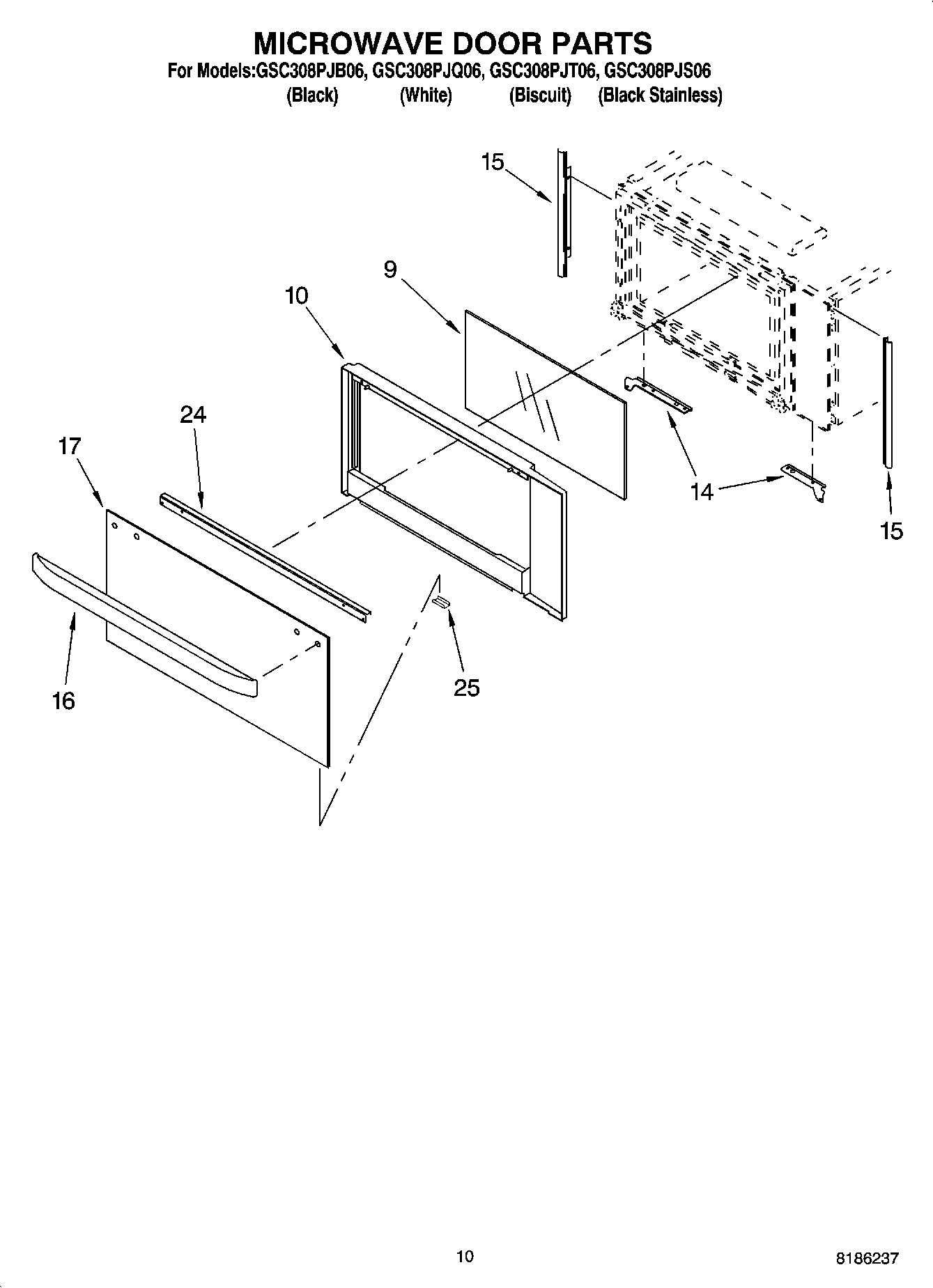

GSC308PJS06 08 – MICROWAVE DOOR PARTS

GSC308PJS06 08 – MICROWAVE DOOR PARTS

Written by

in

GSC308PJS06 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
9Glass, Middle
10WP8303556 Whirlpool Microwave Door Frame
10WP4450038 Whirlpool Screw
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15Filler, Side (Left Side)
15WP4449809 Whirlpool Screw
15Filler, Side
16Door Handle (Black Model)
16Door Handle (Almond Model)
16Door Handle (White Model)
17Glass, Outer (Black Stainless)
17Glass, Outer (White)
17Glass, Outer (Black)
17Glass, Outer (Biscuit)
24Bracket, Handle
24Screw
25Retainer, Glass-Clip (Stainless Steel)
25Clip, Retainer (White Model)
25Clip, Retainer (Black Model)
