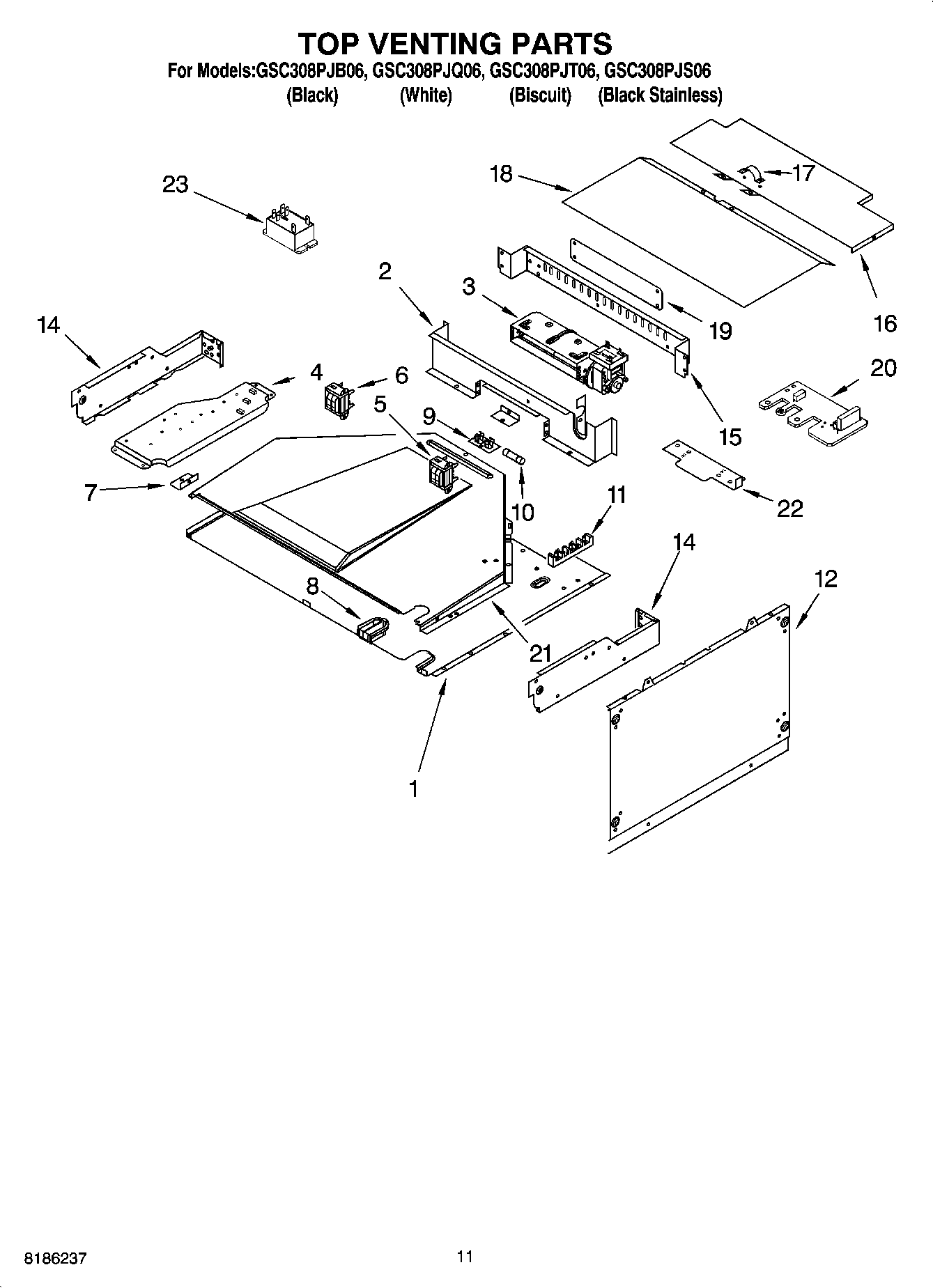

GSC308PJS06 09 – TOP VENTING PARTS, OPTIONAL PARTS

GSC308PJS06 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GSC308PJS06 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI72063A8
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
18 Ga. 80~c Rating (Red)
1
WPL 591014
WPL ARI72062A2
WPL ARI72061A2
WPL 8301921
Filler Kit (Al)
Filler Kit (Wh)
Filler Kit (Bl)
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI72064A8
4450950 Whirlpool Oven Conduit
16515 Whirlpool Clip
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
814381 Whirlpool Pin
72032 Whirlpool Touch Up Paint Black
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Ground (M/W)
285006 Whirlpool Spray
WP4449809 Whirlpool Screw
WPW10339879 Whirlpool Wire Tie
72017 Whirlpool Appliance Touch-Up Paint White
4452400 Whirlpool Microwave Wire Harness
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
1Cover, Top
1WP4450118 Whirlpool Nut
2Baffle, Blower
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Transformer, Control Panel
7Bracket, Duct
8WP112432 Whirlpool Nut Assembly
8Grommet
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
11WP4449154 Whirlpool Screw
12Side, Combo
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Plate, Cover
20Suppressor
21Exhaust Duct
224455191 Whirlpool Oven Mounting Plate
23WP9752759 Whirlpool Relay
