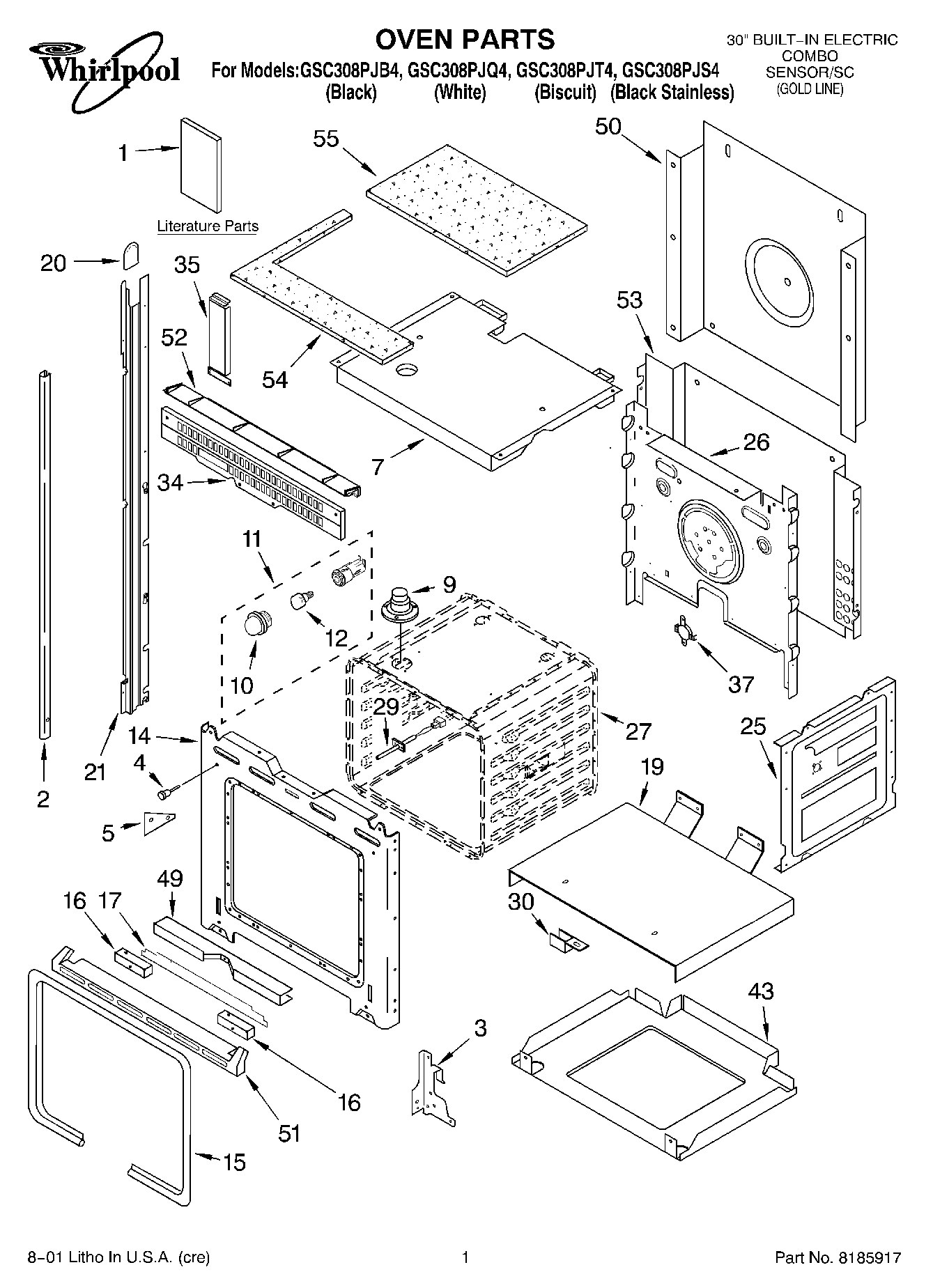

GSC308PJT4 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide) (Oven Cooking Guide (Label))
1	Cookbook, T/C Ovens
1	Literature Parts (Chart, Speed Cook (Label))
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide) (Microwave)
1	Literature Parts (Microwave)
1	Literature Parts (Installation Instructions)
2	Trim, Side Right Hand (White)
2	Trim, Side Right Hand (Black)
2	Trim, Side (LH Stainless Steel)
2	Trim, Side (RH Stainless Steel)
2	(Trim, Side Left Hand) (White)
2	Trim, Side Right Hand (Biscuit)
2	(Trim, Side Left Hand) (Biscuit)
2	(Trim, Side Left Hand) (Black)
2	WP694091 Whirlpool Screw
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
16	Spacer, Foam
17	Insulation Bottom Vent
19	Support, Insulation
20	Cap, Spacer
21	814376 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814375 Whirlpool Oven Rail Mount
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WPL 4449845
34	WP4450038 Whirlpool Screw
34	WPL 4451667
35	Extension Filler
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4455445
51	WPL 4455443
51	WPL 4455147
51	Trim, Bottom (Screw)
51	WPL 4455447
52	Vent-Cntrl Panel
53	4452152 Whirlpool Oven Mounting Bracket
53	WPL 4451756
54	WPL 4452492
55	WPL 4452491
55	WPL 4450365
55	W11684730 Whirlpool Insulation
