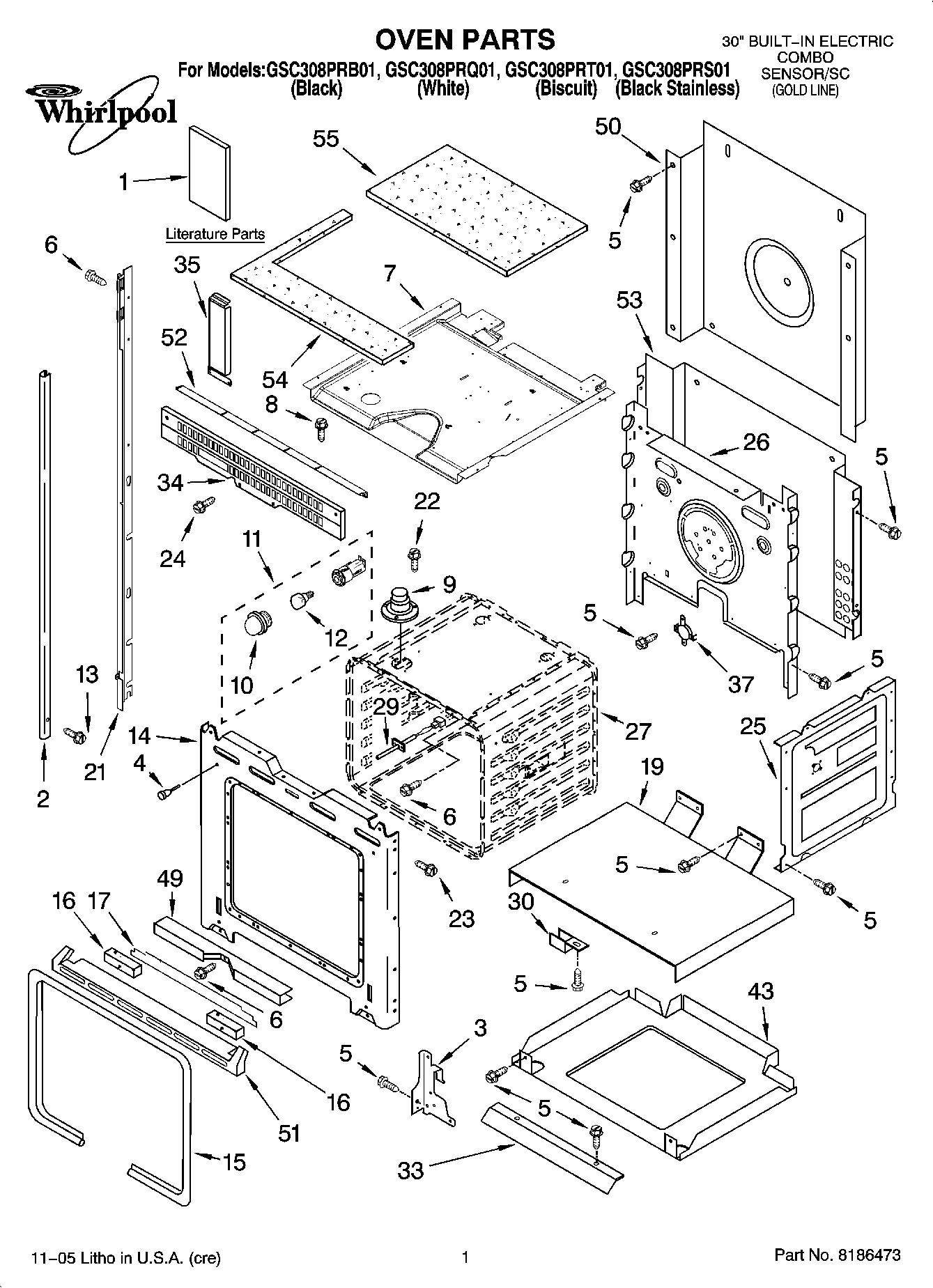

GSC308PRB01 01 – OVEN PARTS

GSC308PRB01 01 – OVEN PARTS

Written by

in

GSC308PRB01 01 – OVEN PARTS

Products

PositionProduct
1Microwave
1Tech Sheet (Oven)
1Cookbook, WP Conv.
1Oven Cooking Guide (Label)
1Oven
1Use & Care Guide Microwave (English)
1Installation Instructions
1Safe Cooking Tips
1Safe Cooking Tips (French)
2Trim, Side (LH White)
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (LH S.Steel)
2Trim, Side (RH S.steel)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5WP4449809 Whirlpool Screw
6WP4449154 Whirlpool Screw
7Top Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP3400832 Whirlpool Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
21WP4448444 Whirlpool Grommet
21Rail, Side (Left Side)
21Rail, Side (Right Side)
22SCREW
23Screw
24WP4450038 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35Extension Filler
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPW10207689 Whirlpool Trim Kit
51Trim, Bottom (S.Steel)
52WPL 8303502
534452152 Whirlpool Oven Mounting Bracket
53WPL 4451756
54WPL 4452492
55WPL 4452491
55W11684730 Whirlpool Insulation
55WPL 4450365
55WPL ARI72091A8
