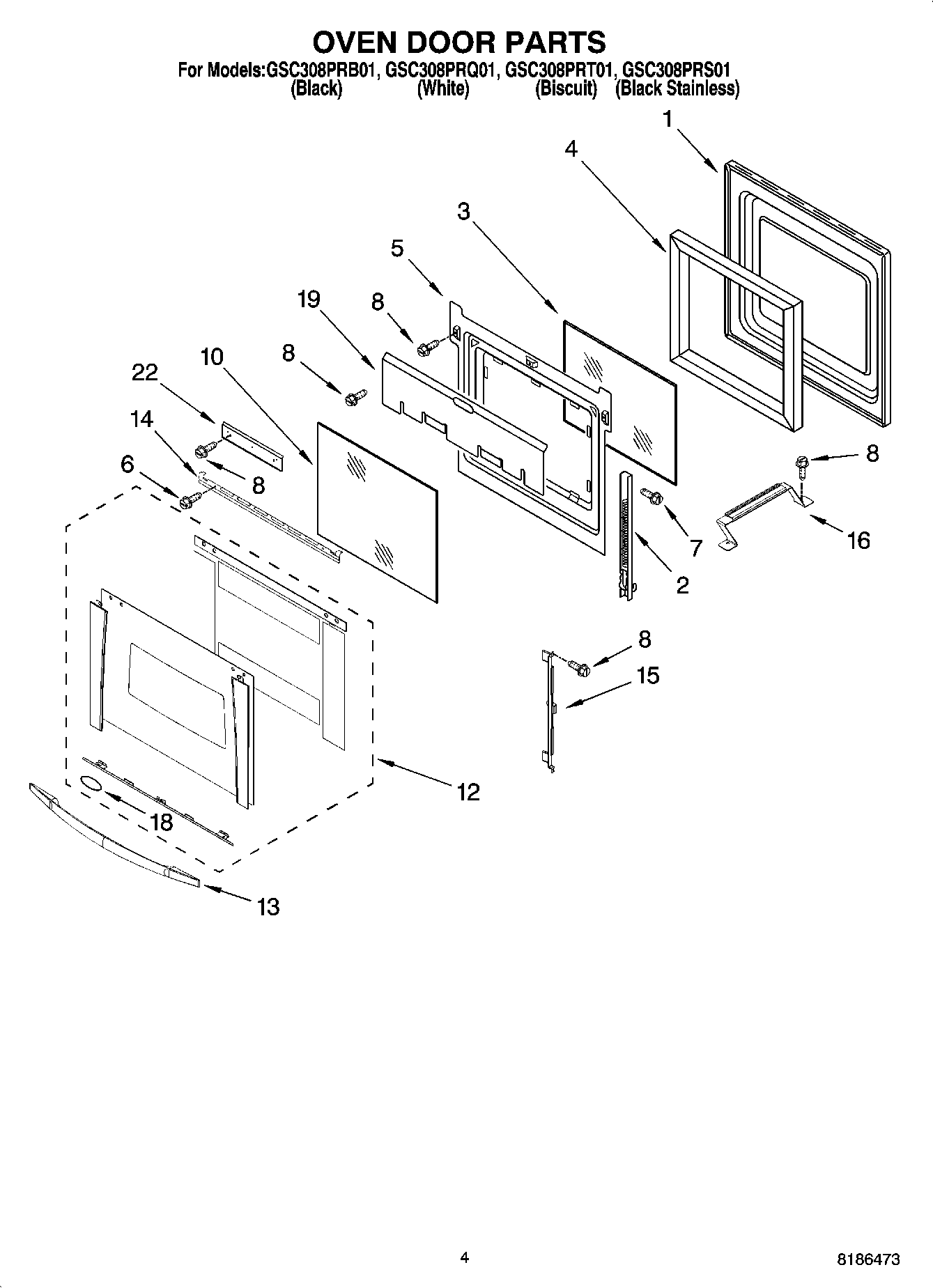

GSC308PRB01 03 – OVEN DOOR PARTS

GSC308PRB01 03 – OVEN DOOR PARTS

Written by

in

GSC308PRB01 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760577 Whirlpool Oven Right Door Hinge
2WP9760578 Whirlpool Oven Left Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6Screw
7WP4449743 Whirlpool Screw
8WP4449809 Whirlpool Screw
10WP9759225 Whirlpool Inner Door Glass
12Door Glass Assy (Lower) (Black)
12Door Glass Assy (Lower) (Biscuit)
12Door Glass Assy (Lower) (S.Steel)
12Door Glass Assy (Lower) (White)
13Door Handle (S.Steel)
13Door Handle (White)
13Door Handle (Black)
13Door Handle (Biscuit)
14Bracket, Handle
15WP9759229 Whirlpool Mounting Bracket
16Bracket (3rd Glsss)
18Name Plate
19Shield, Heat
224457114 Whirlpool Oven Heat Shield
