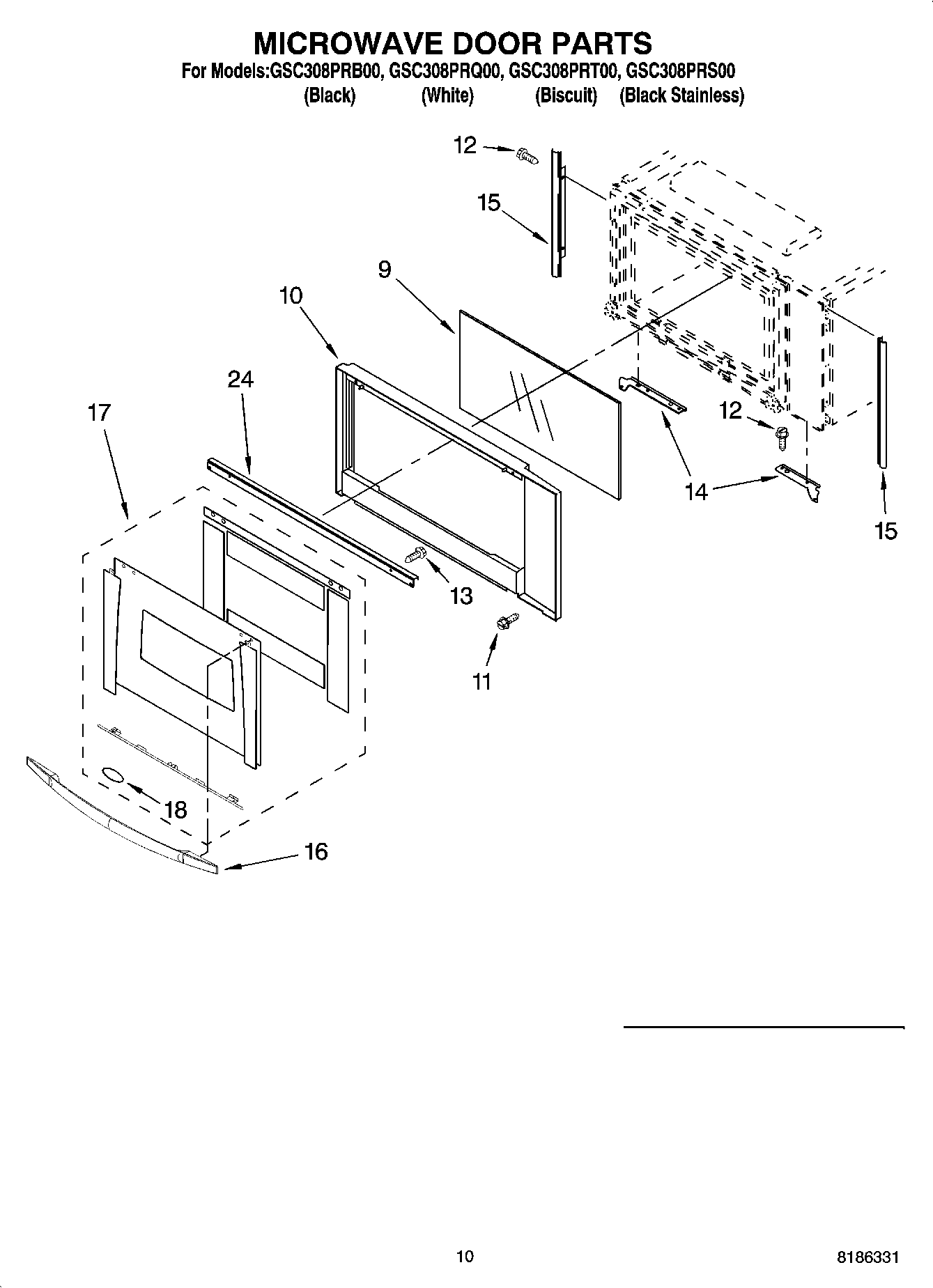

GSC308PRQ00 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
9Glass, Middle
10WP8303556 Whirlpool Microwave Door Frame
11WP4450038 Whirlpool Screw
12WP4449809 Whirlpool Screw
13Screw
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15Filler, Side (Left Side)
15Filler, Side
16Door Handle (Black)
16Door Handle (White)
16Door Handle (S.Steel)
16Door Handle (Biscuit)
17Glass, Outer (Biscuit)
17Glass, Outer (Stainless Steel)
17Glass, Outer (Black)
17Glass, Outer (White)
18Name Plate
24Bracket, Handle
