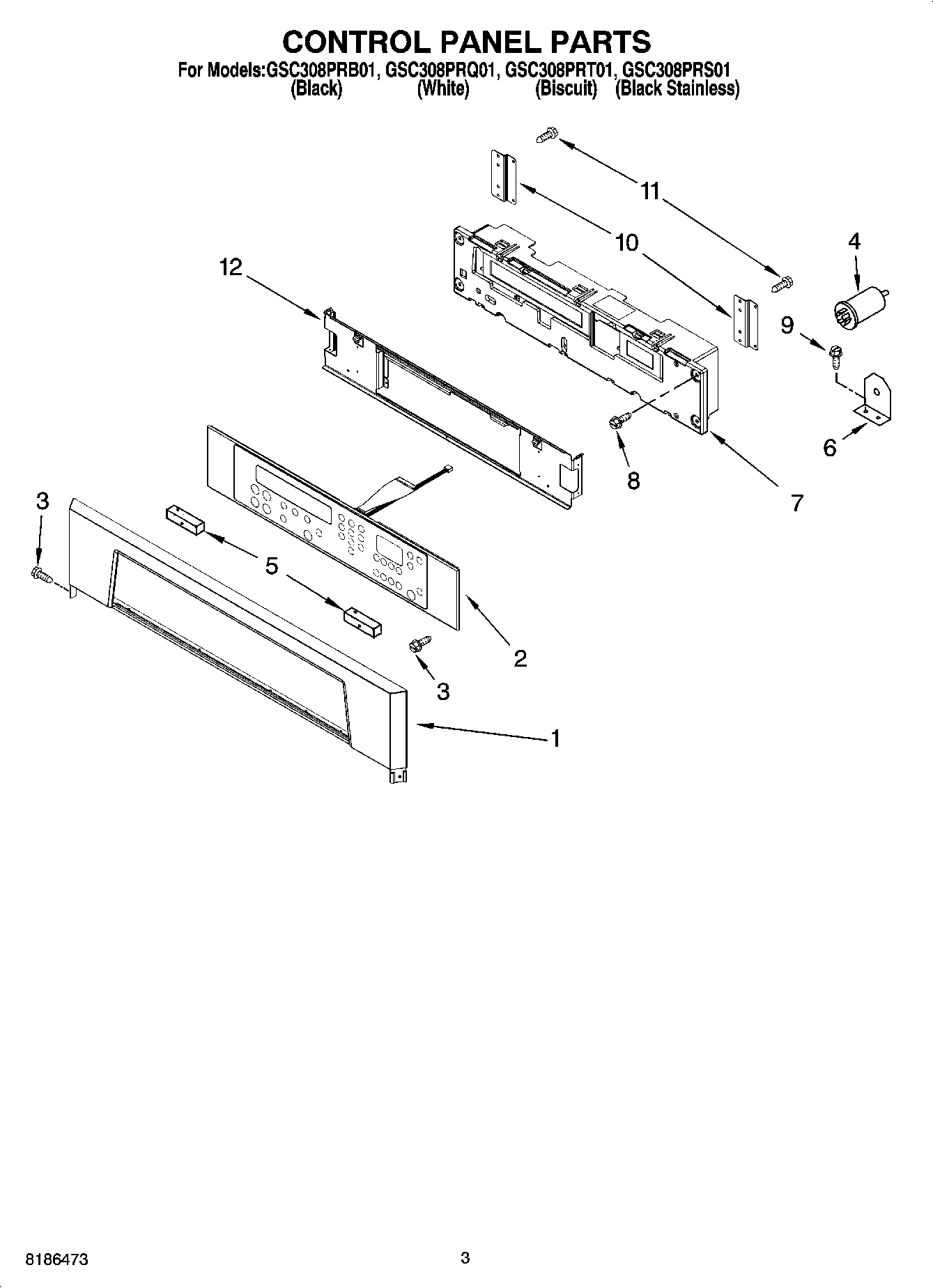

GSC308PRQ01 02 – CONTROL PANEL PARTS

GSC308PRQ01 02 – CONTROL PANEL PARTS

Written by

in

GSC308PRQ01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302849 Whirlpool Control Panel
1Control Panel (Biscuit)
1WPW10172165 Whirlpool Trim Panel
1WP8302848 Whirlpool Control Panel
2Assy, Membrane (White)
2Assy, Membrane (Biscuit)
2Assy, Membrane (Black)
4Filter
5Spacer, Foam
6Bracket, Filter
7Assy, Control
8WP4449745 Whirlpool Screw
9WP4449809 Whirlpool Screw
10BRACKET SISTER BOARD
11WP3400832 Whirlpool Screw
12Backer, Control
