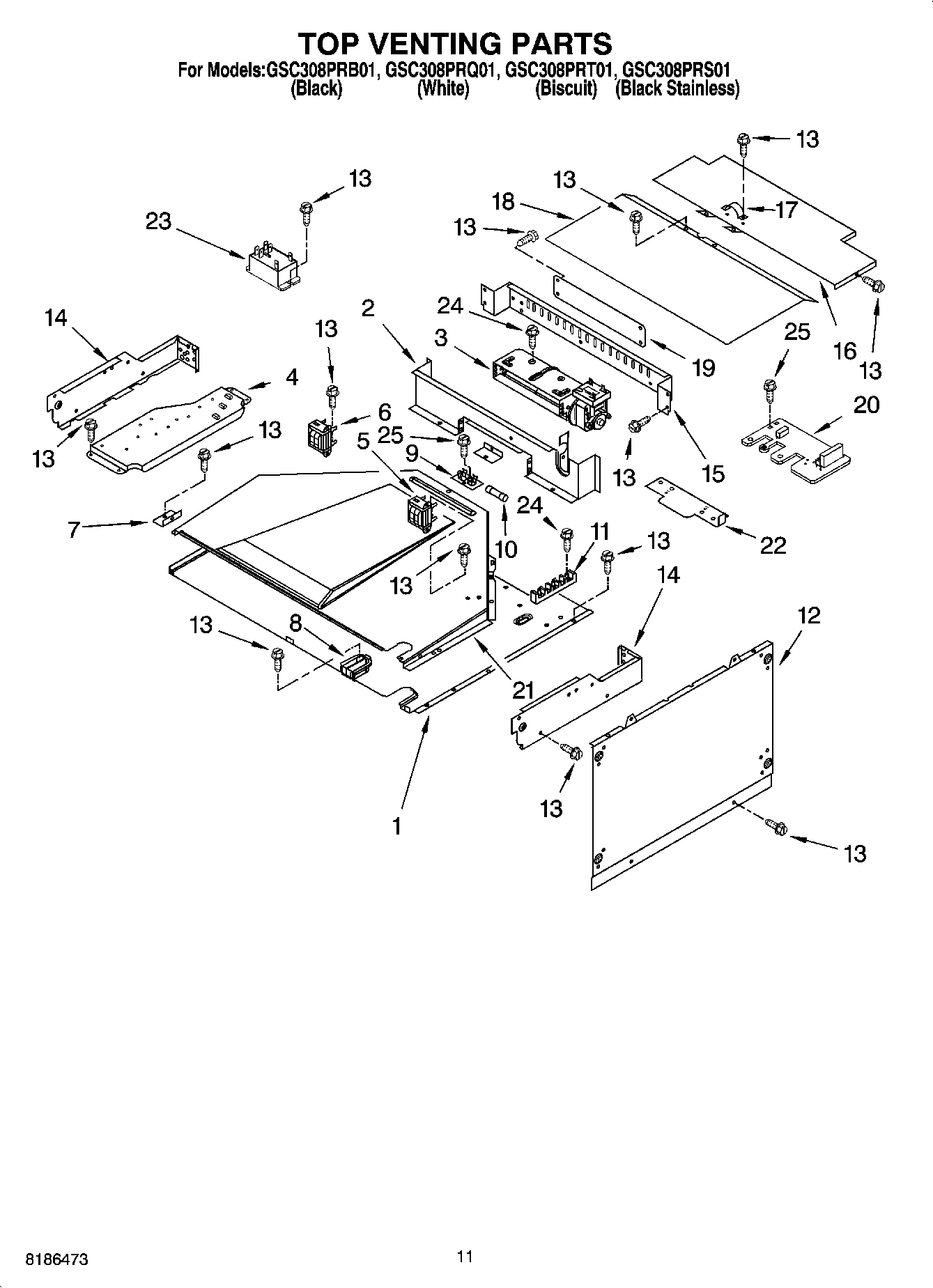

GSC308PRQ01 09 – TOP VENTING PARTS, OPTIONAL PARTS

GSC308PRQ01 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GSC308PRQ01 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI72106A4
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
8301909 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
18 Ga. 80~c Rating (Red)
1
WPL 591014
WPL ARI72105A8
WPL ARI72104A9
WPL 8301921
Filler Kit (Al)
Filler Kit (Wh)
Filler Kit (Bl)
8303838 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI72107A2
4450950 Whirlpool Oven Conduit
16515 Whirlpool Clip
Wire (14 Ga. 200 c Brown)
4452400 Whirlpool Microwave Wire Harness
72032 Whirlpool Touch Up Paint Black
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Ground (M/W)
4450800 Whirlpool Oven Screw
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
1Cover, Top
2Baffle, Blower
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Transformer, Control Panel
7Bracket, Duct
8Grommet
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
12Side, Combo
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Plate, Cover
20Suppressor
21Exhaust Duct
224455191 Whirlpool Oven Mounting Plate
23WP9752759 Whirlpool Relay
24489392 Whirlpool Refrigerator Screw
25WP4449154 Whirlpool Screw
