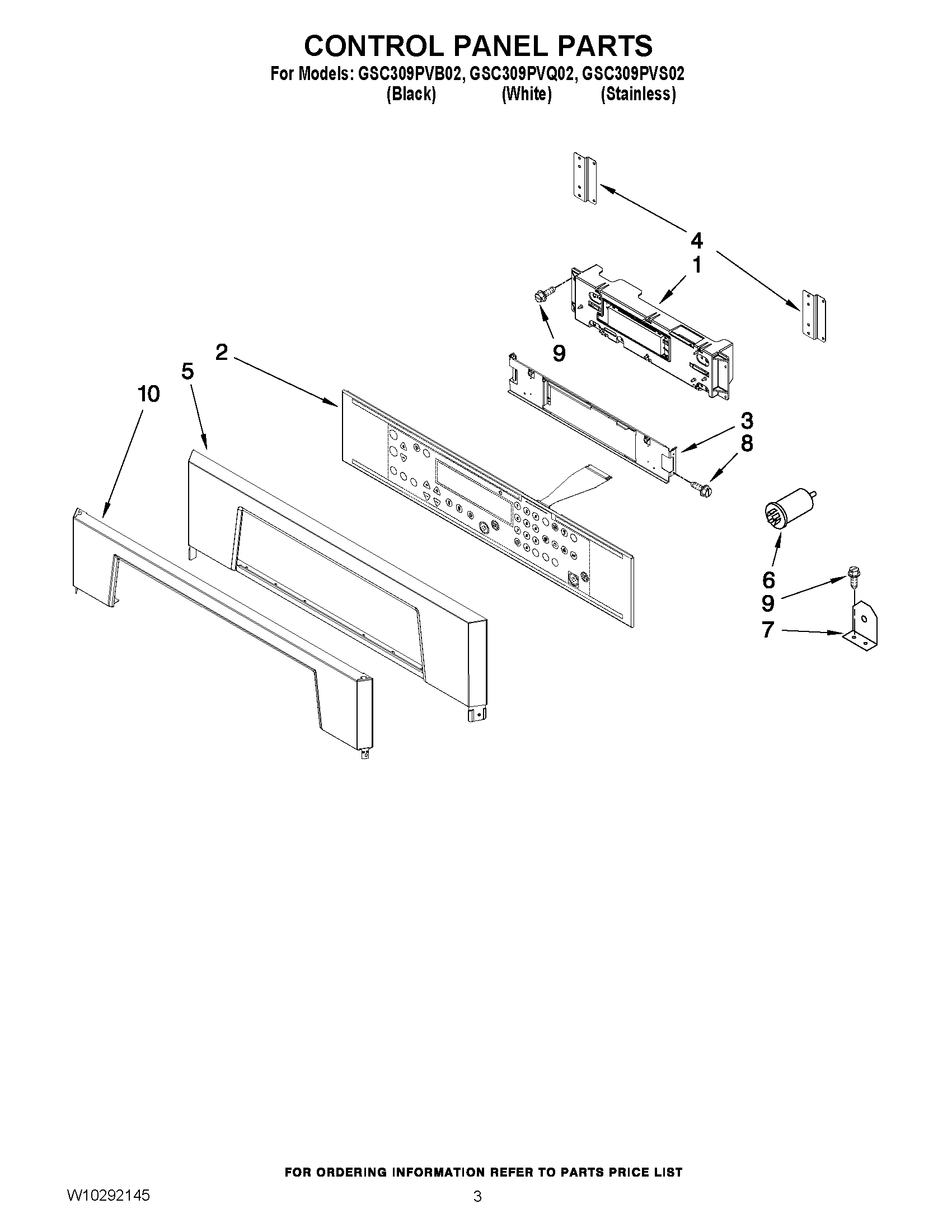

GSC309PVB02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Assy, Control
2	Assembly, Switch (White)
2	Assembly, Switch (Black)
3	BACKER, CONTROL PANEL
4	BRACKET SISTER BOARD
5	WP8302849 Whirlpool Control Panel
5	WP8302848 Whirlpool Control Panel
6	Filter
7	Bracket, Filter
8	WP4449745 Whirlpool Screw
9	WP4449809 Whirlpool Screw
10	WPW10172167 Whirlpool Trim Panel
10	Trim, Control Panel (White)
10	WPW10172165 Whirlpool Trim Panel
