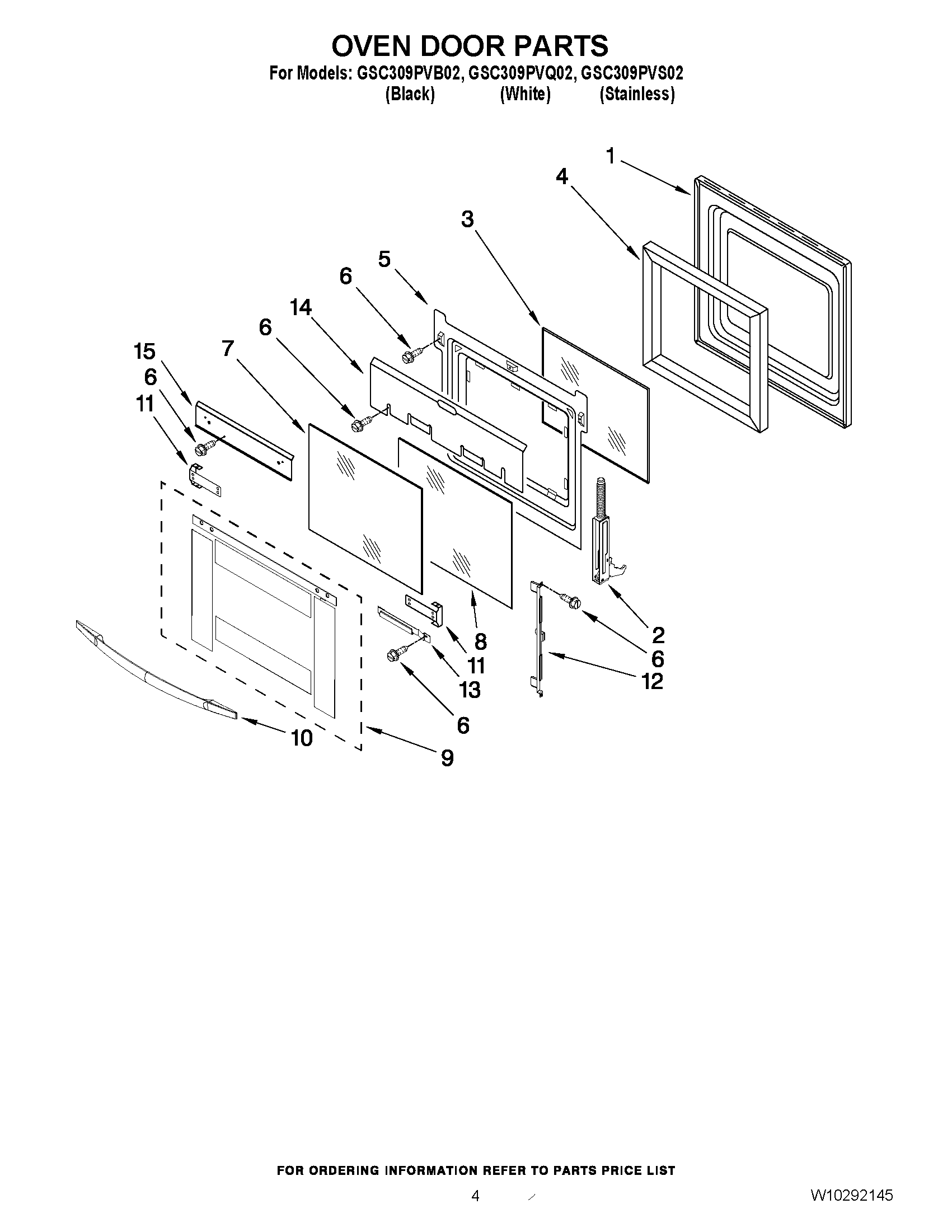

GSC309PVB02 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760576 Whirlpool Door Hinge (Left)
2HINGE-DOOR
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6WP4449809 Whirlpool Screw
7WP9759225 Whirlpool Inner Door Glass
8Glass, Inner
9Assembly, Door Glass (White)
9Assembly, Door Glass (Black)
9W10401225 Whirlpool Oven Outer Door Glass
10Door Handle (Stainless)
10Door Handle (Black)
10Door Handle (White)
11Bracket, Handle (L.Hand)
114455803 Whirlpool Oven Bracket
12WP9759229 Whirlpool Mounting Bracket
13Bracket (3rd Glsss)
14SHIELD, HEAT TOP
154457114 Whirlpool Oven Heat Shield
