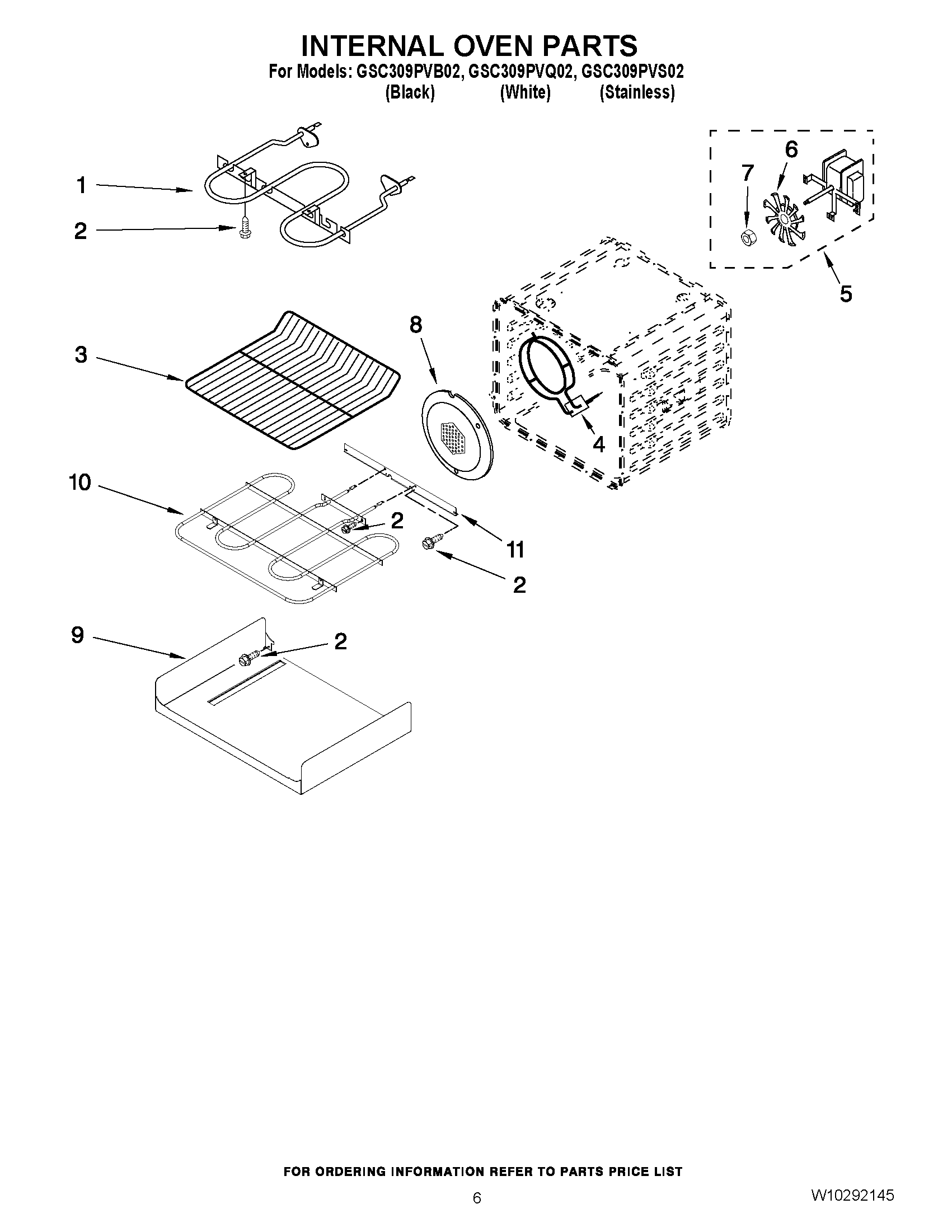

GSC309PVB02 05 – INTERNAL OVEN PARTS

GSC309PVB02 05 – INTERNAL OVEN PARTS

Written by

in

GSC309PVB02 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10207400 Whirlpool Broil Element
2WP4449154 Whirlpool Screw
3WPW10179152 Whirlpool Rack Oven
4WP9760769 Whirlpool Element Assembly
5W10794022 Whirlpool Oven Cooktop Fan Motor
6W10758272 Whirlpool Convection Fan
7WPW10116349 Whirlpool Nut
8WPW10160821 Whirlpool Fan Cover
9Tray, Hidden Bake
10ELMNT-BAKE
114450039 Whirlpool Oven Access Cover
