GSC309PVB02 08 – MICROWAVE DOOR PARTS

GSC309PVB02 08 – MICROWAVE DOOR PARTS

Written by

in

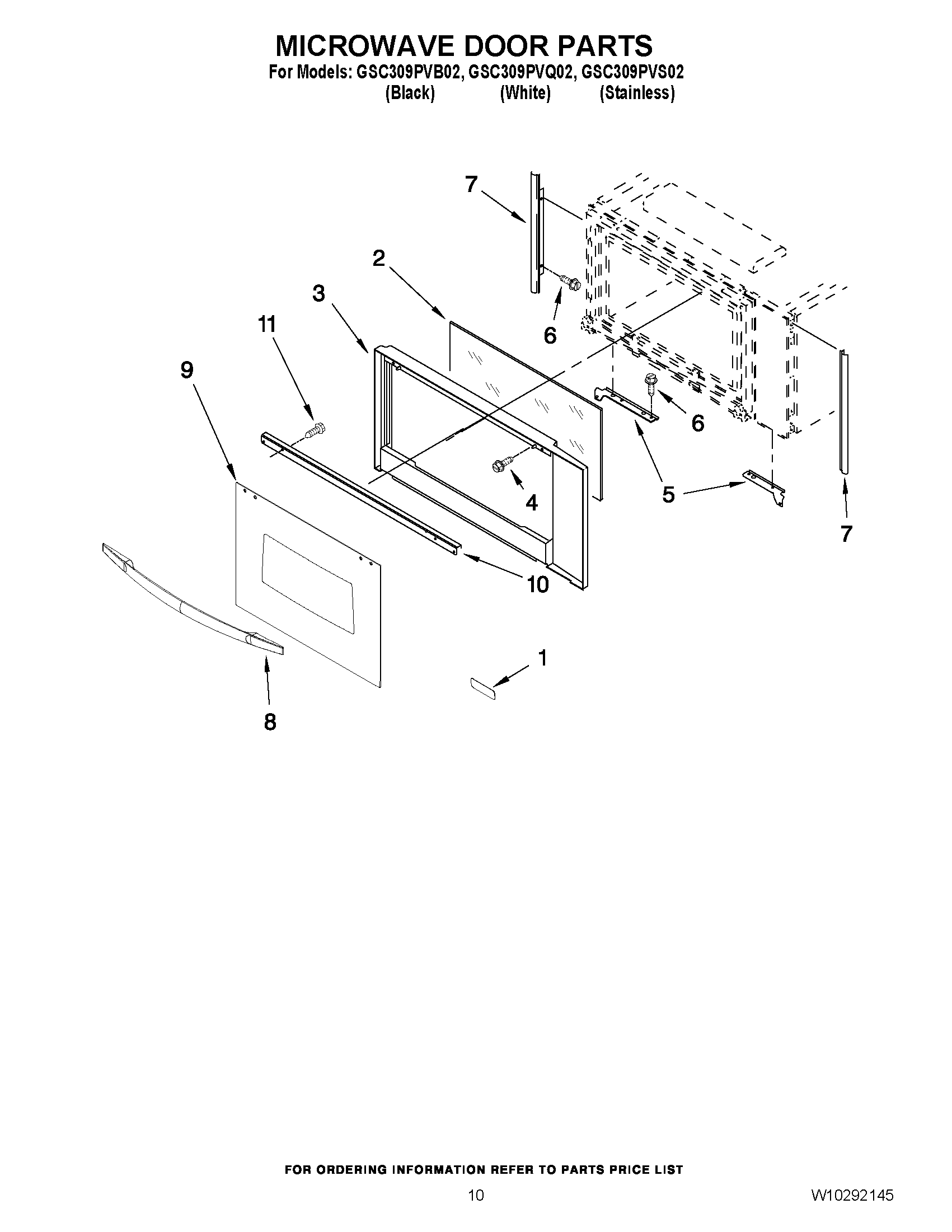

GSC309PVB02 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
1NAMEPLATE
2Glass, Middle
3WP8303556 Whirlpool Microwave Door Frame
4WP4450038 Whirlpool Screw
5Bracket, Mounting (Right Side)
5Bracket, Mounting (Left Side)
6WP4449809 Whirlpool Screw
7Filler, Side (Left Side)
7Filler, Side
8Door Handle (Stainless)
8Door Handle (Black)
8Door Handle (White)
9GLASS, OUTER (STAINLESS)
9WPW10199428 Whirlpool Door Glass Assembly
9GLASS, OUTER (WHITE)
10Bracket, Handle
11Screw
