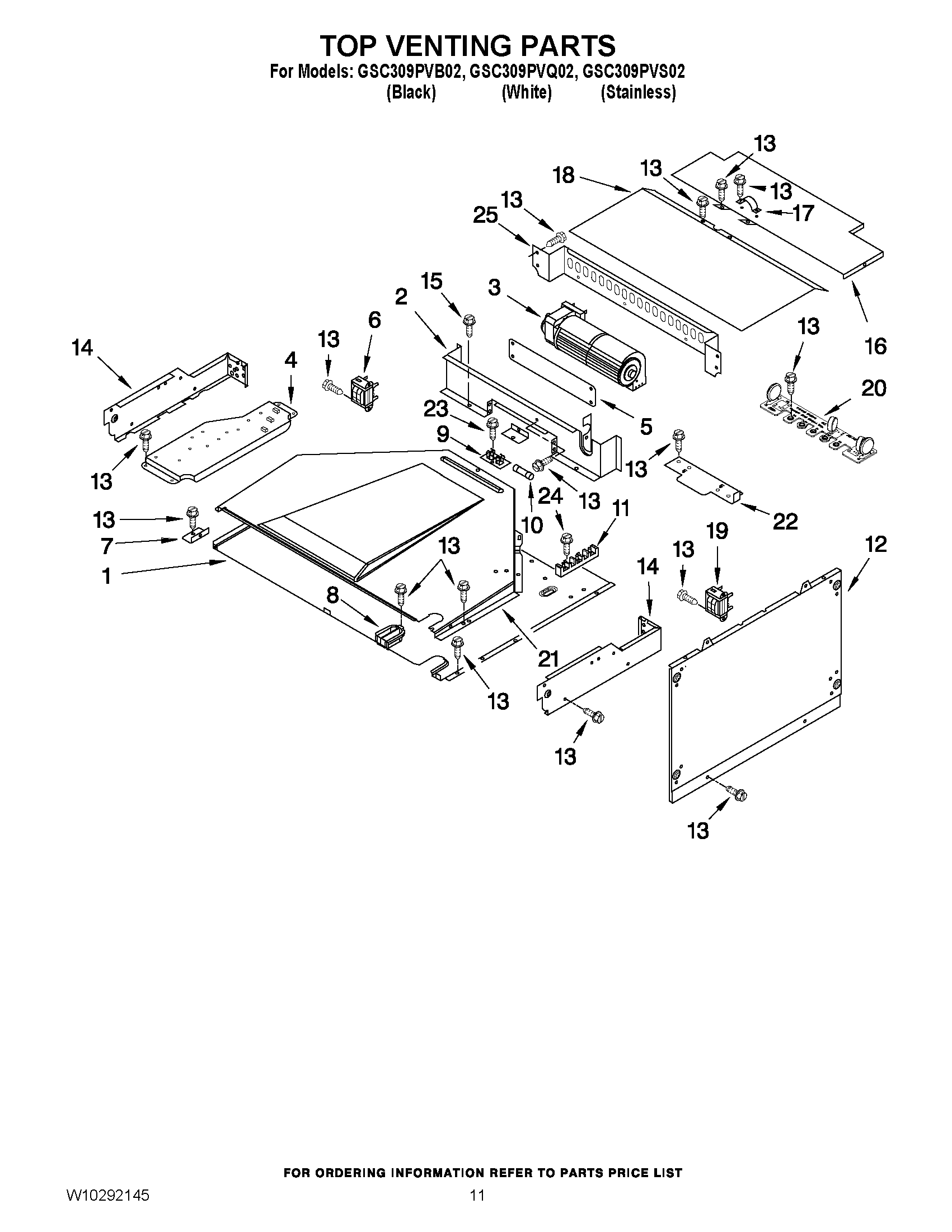

GSC309PVB02 09 – TOP VENTING PARTS

Products

Position	Product
1	Cover, Top
2	Baffle, Blower
3	WPW10016550 Whirlpool Blower Cooling Fan
3	Blower
4	Plate, Mounting
5	Plate, Cover
6	Transformer, Control
7	Bracket, Duct
8	Grommet
9	4454949 Whirlpool Oven Fuse Block
10	WPW10017410 Whirlpool Fuse
11	BLOCK, TERMINAL
12	Side, Combo
13	WP4449809 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	489392 Whirlpool Refrigerator Screw
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
19	WP9760588 Whirlpool Transformer
20	Suppressor
21	Exhaust Duct
22	4455191 Whirlpool Oven Mounting Plate
23	WP4449154 Whirlpool Screw
24	Screw
25	COVER, COMPARTMENT BACK
