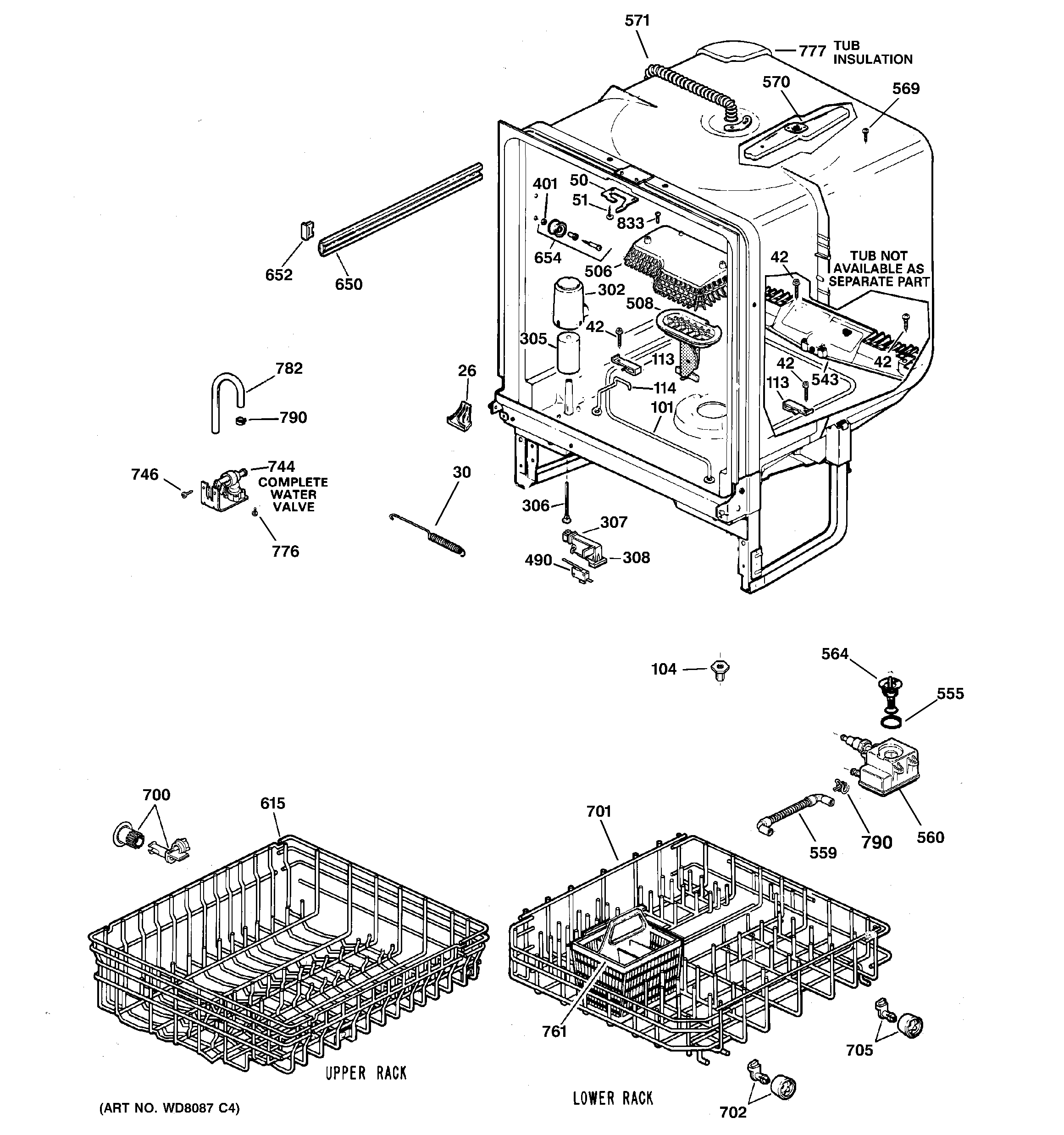

GSC3200J01WW BODY PARTS

Products

PositionProduct
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
26WD8X227 GE Dishwasher Right Hand Corner Seal
30SPRING DOOR
30GEN WD2M205
42SCREW #8-3/4 L HX HD SS
50WD13X67 GE Dishwasher Latch Keeper
51GEN WZ02X0492
101GEN WD5M6
104WD01X10070 GE Dishwasher Nut
113WD01X10086 GE Dishwasher Support Calrod Assembly
114WD1X1472 GE Dishwasher Heater Support
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
490WD21X479 GE Dishwasher Switch
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
543GEN WD22X0149
555GEN WD8X219
559GEN WD24X10015
560GEN WD22X10018
564WD24X10018 GE Assembly Piston and Nut
569WD02X10061 GE Dishwasher Screw 8-18 PL
570WD28X10103 GE Spray Arm Assembly
571GEN WD24X0214
615WD28X31820 GE Dishwasher Upper Final Rack Assembly
650GEN WD12M77
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701WD28X31819 GE Dishwasher Lower Rack
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
744GEN WD10M0010
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
776GEN WZ05X0222
777GEN WD01X1498
782WD18X202 GE Dishwasher Fill Hose
790WH1X2036 GE UNIX Clamp
833WD2X295 GE Refrigerator Screw
