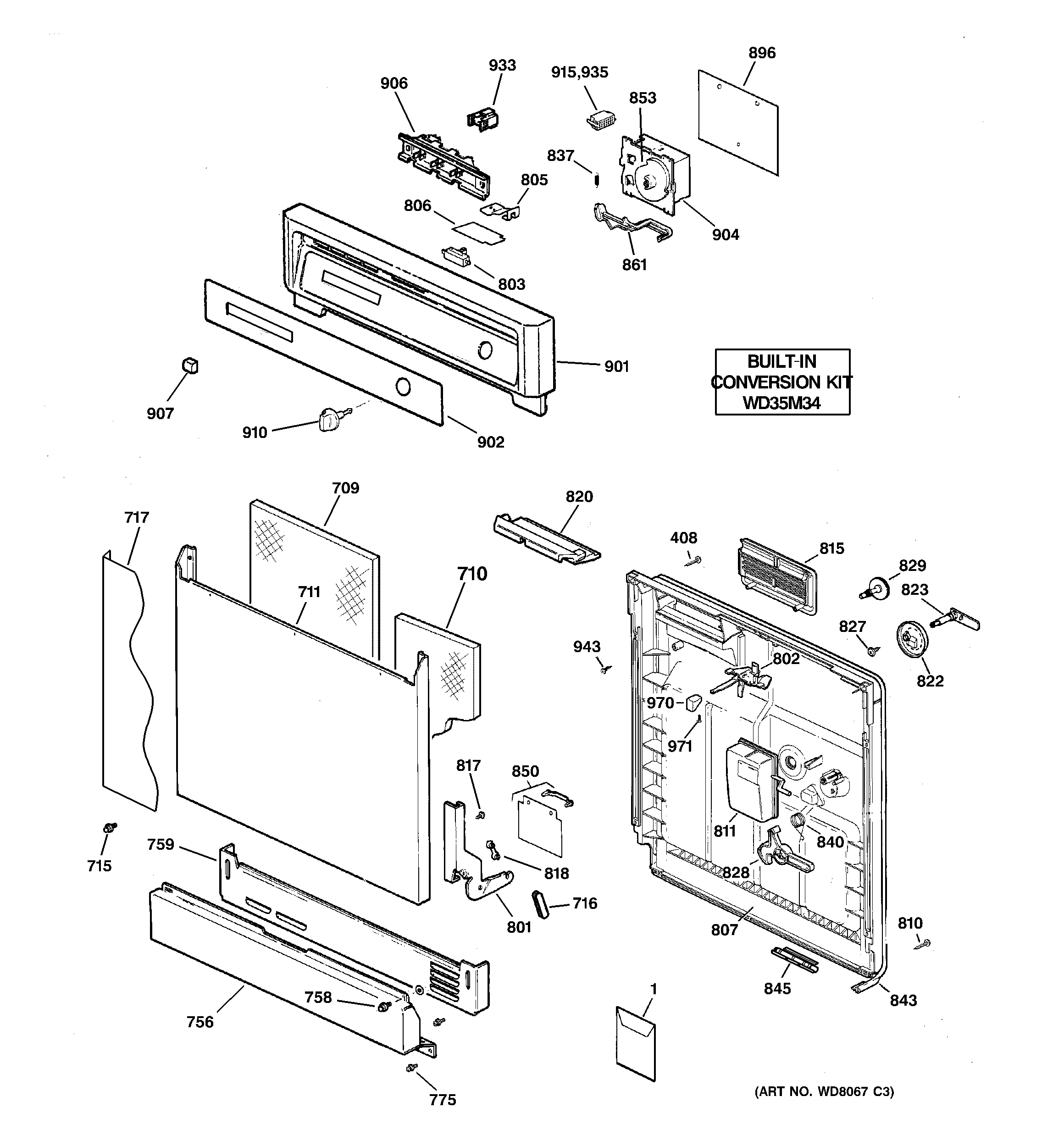

GSC3200J01WW ESCUTCHEON & DOOR ASSEMBLY

GSC3200J01WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC3200J01WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1MANUAL USE & CARE
1GEN 31-30130
1GEN 31-31013
408GEN WD02X0296
709GEN WD01X10083
710GEN WD01X10084
711WD31X10025 GE Dishwasher Front Panel
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
756WD27X10225 GE Dishwasher Finished Access Panel
758GEN WD2M202
758GEN WD02X0323D
759WD27X10066 GE Dishwasher Toe Panel Kit
759GEN WD27M255
759WD02X10057 GE Dishwasher Screw 10-16 x 1
801GEN WD14M11
801GEN WD14M12
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X0338
853GEN WD16X10007
861WD12X324 GE Dishwasher Lever
896GEN WD2M197
901GEN WD34X10392
902GEN WD34X10718
904GEN WD21X10201
906WD35X10014 GE Dishwasher Switch Kit
907GEN WD21X10088
910WD09X10025 GE Dishwasher Timer Control Knob
915GEN WD01X1432
933WD12X10016 GE Dishwasher Insulation Cover
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
