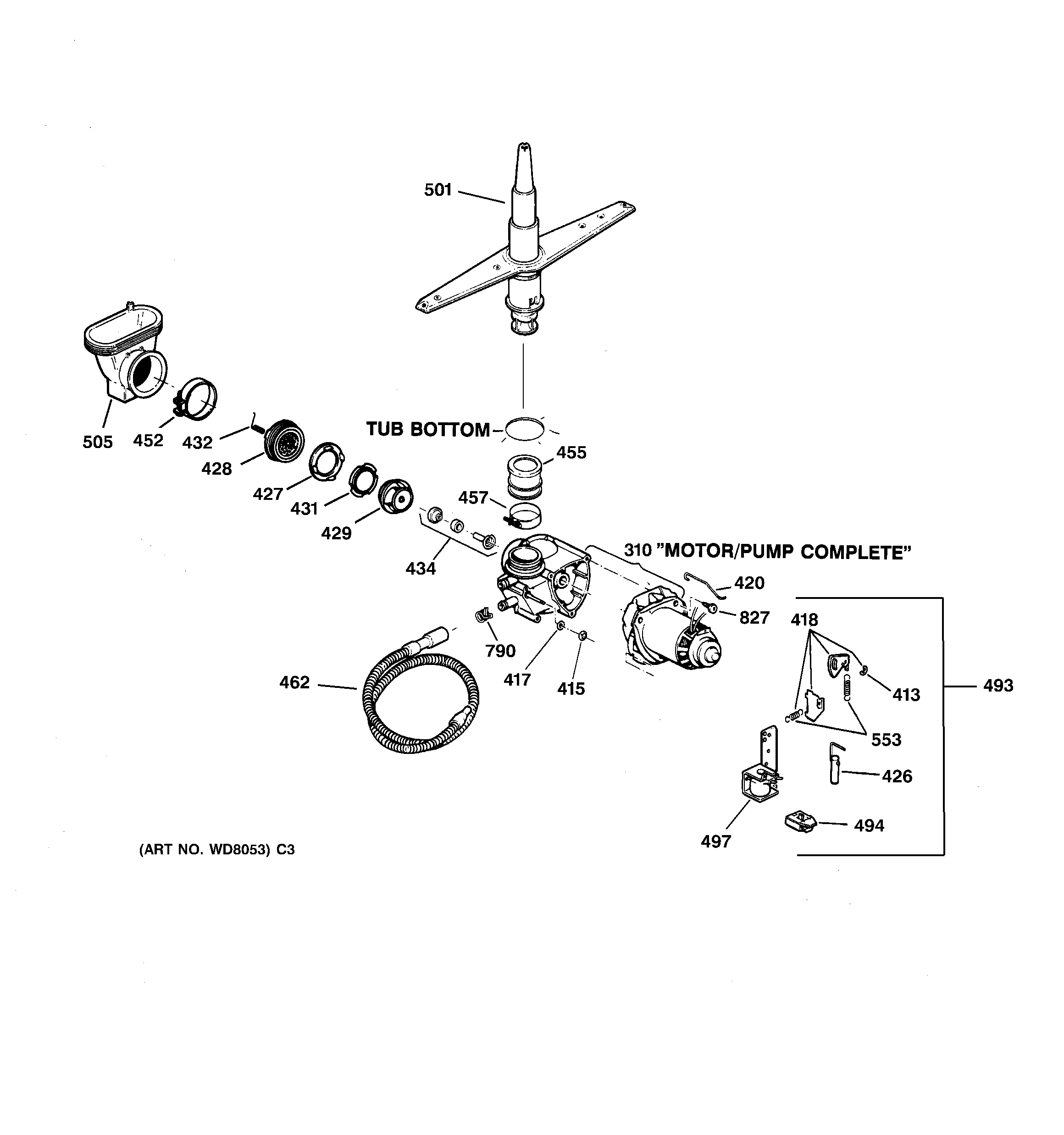

GSC3200Z03BL MOTOR-PUMP MECHANISM

GSC3200Z03BL MOTOR-PUMP MECHANISM

Written by

in

GSC3200Z03BL MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10013 GE Dishwasher Motor and Pump Assembly
413WD3X487D GE Dishwasher Retainer Package
415WR2X7054 GE Refrigerator Push-On Nut
417WD8X181 GE Dishwasher Pump Gasket
418GEN WD35X0192
420GEN WD01X1455
426ARMATURE&LNK
427GEN WD12X0354
428GEN WD12X0378
429GEN WD19X0060
431GEN WD01X1341
432GEN WD01X1487
434GEN WD19X10001
452WD1X1392 GE Dishwasher Sump Clamp
455WD18X214 GE Dishwasher Pump to Wash Arm Rubber Connector
457WD1X1376 GE Dishwasher Clamp
493WD21X10060 GE Dishwasher Drain Solenoid Kit and Bracket
494WD1X1459 GE Dishwasher Insulation Housing
497BRACKET & SOLENOID
501WD22X10008 GE Dishwasher Lower Spray Arm Assembly
505WD18X213 GE Dishwasher Inlet Sump Housing
553WD3X721 GE Dishwasher Spring Set
790WH1X2036 GE UNIX Clamp
827GEN WD02X0425
