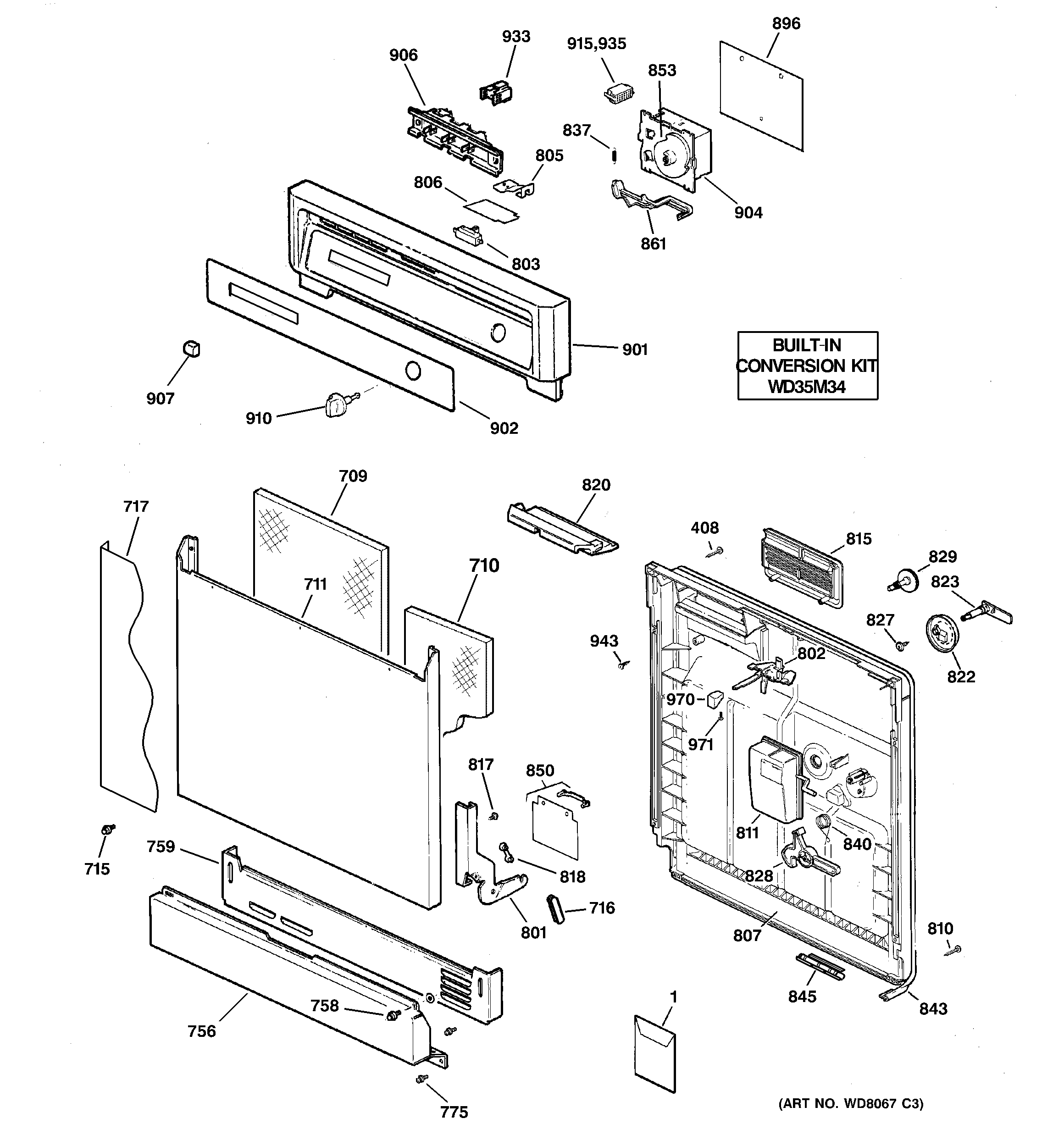

GSC3230F00WW ESCUTCHEON & DOOR ASSEMBLY

GSC3230F00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC3230F00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-31007
1GEN 31-30130
1GEN WD1M270
408GEN WD02X0296
710GEN WD01X10019
711PANEL FRONT
715WD2X433 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10044
756WD27X10225 GE Dishwasher Finished Access Panel
758GEN WD2M202
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0255
775WD2X5166 GE Dishwasher Screw
775SCREW 10-16X5/8 HXP WH
801GEN WD14M10
801GEN WD14M9
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X0338
853GEN WD16X10007
861WD12X324 GE Dishwasher Lever
896GEN WD2M197
901GEN WD34X10392
902GEN WD34X10415
904GEN WD21X10079
906WD35X10014 GE Dishwasher Switch Kit
907GEN WD21X10088
907GEN WD09X0355
910WD09X10025 GE Dishwasher Timer Control Knob
915GEN WD01X1432
933COVER SWITCH
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
