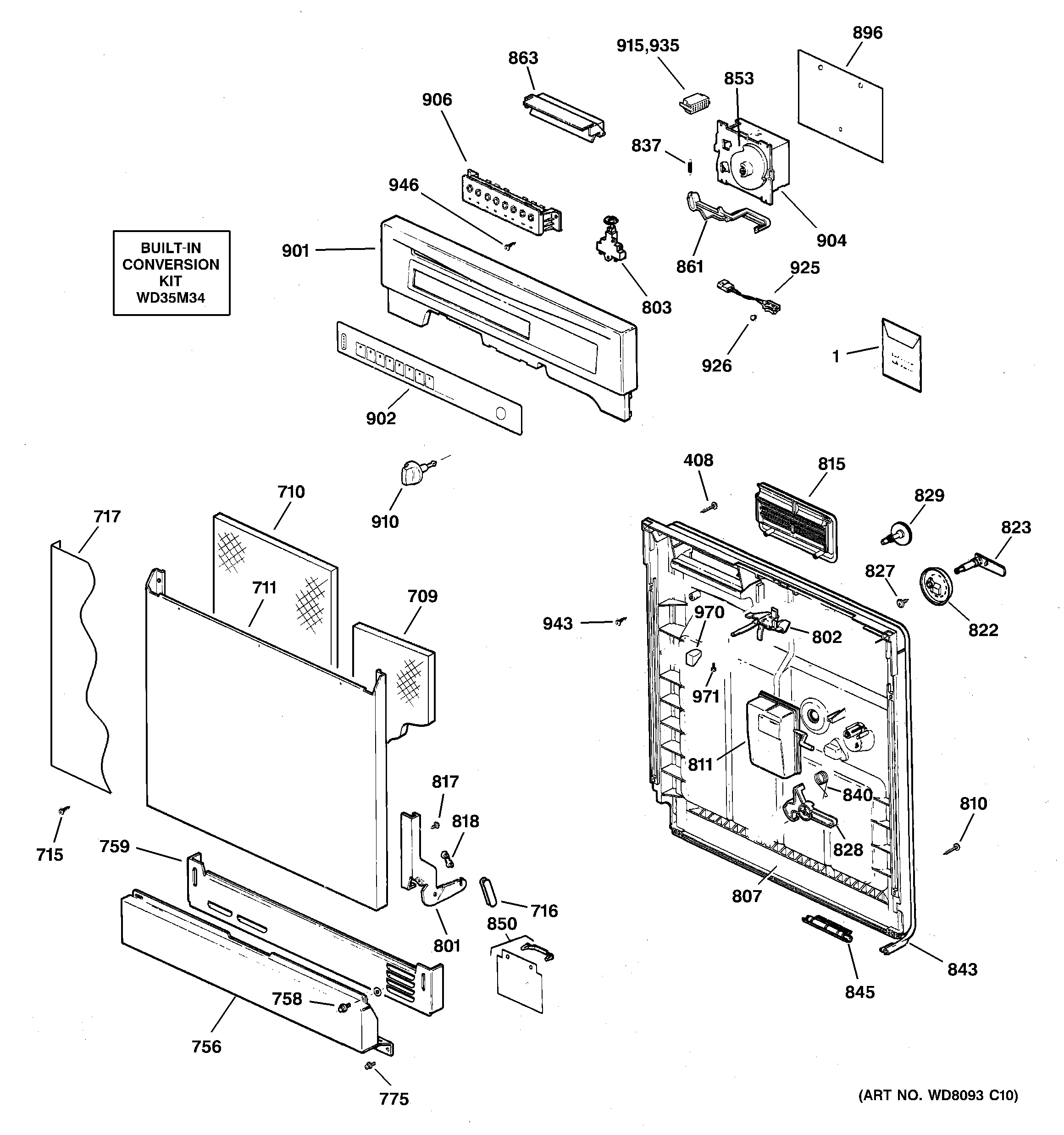

GSC3400J00WW ESCUTCHEON & DOOR ASSEMBLY

GSC3400J00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC3400J00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1MANUAL USE & CARE
1GEN 31-31014
1GEN 31-30130
408GEN WD02X0296
709GEN WD01X10084
710GEN WD01X10083
711WD31X10025 GE Dishwasher Front Panel
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
756WD27X10225 GE Dishwasher Finished Access Panel
758WD2X323D GE Dishwasher Screw Package
759WD27X10066 GE Dishwasher Toe Panel Kit
759GEN WD27M255
759WD02X10057 GE Dishwasher Screw 10-16 x 1
801GEN WD14M12
801GEN WD14M11
802WD13X10003 GE Dishwasher Latch Assembly
803GEN WD06X10003
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X0338
853GEN WD16X10008
861WD12X324 GE Dishwasher Lever
863VENT ASM
896GEN WD2M197
901GEN WD34X10308
902GEN WD34X10934
904WD21X10200 GE Dishwasher Timer
906GEN WD21X10182
910WD09X10023 GE Knob Timer White
915GEN WD01X1432
925GEN WD06X10004
926GEN WD01X10069
935GEN WD01X1434
943WZ5X219D GE Screw Package
946GEN WD01X10020
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
