GSC3400ZZ0BL ESCUTCHEON & DOOR ASSEMBLY

GSC3400ZZ0BL ESCUTCHEON & DOOR ASSEMBLY

Written by

in

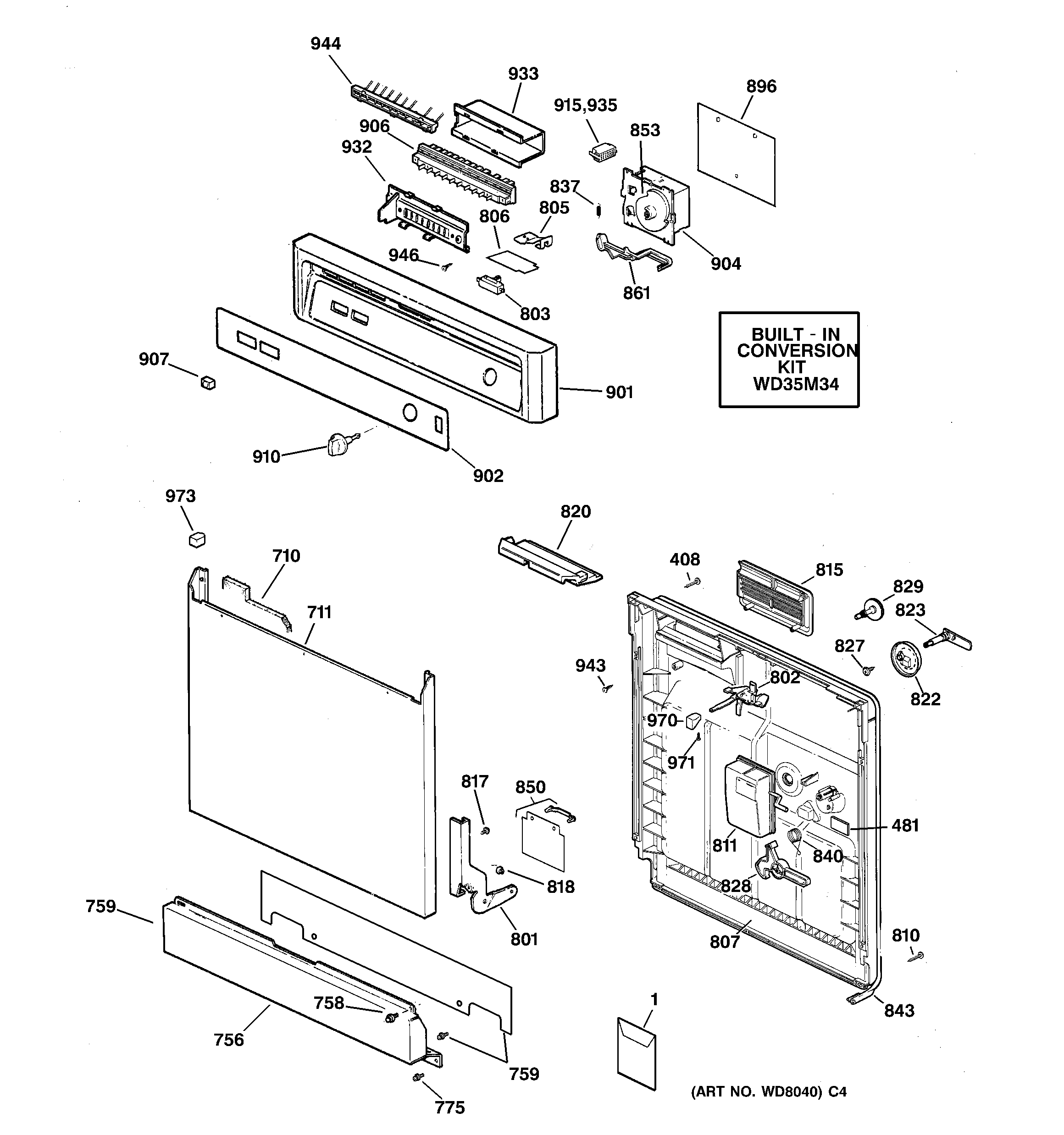

GSC3400ZZ0BL ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30130
1GEN 49-5823
1GEN 31-3086
408GEN WD02X0296
481GEN WD01X10016
615WD28X31818 GE Dishwasher Rack Service Kit
710GEN WD01X10019
711GEN WD31X10010
756WD27X10223 GE Dishwasher Access Panel Finished Black
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0255
759GEN WD2M202
775WD2X5166 GE Dishwasher Screw
801GEN WD14M10
801GEN WD14M9
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10001
861WD12X324 GE Dishwasher Lever
896GEN WD2M197
901GEN WD34X10085
902GEN WD34X10087
904GEN WD21X10027
906GEN WD21X10028
907GEN WD09X0354
910WD9X349 GE Dishwasher Timer Knob
915GEN WD01X1432
932GEN WD12X432
933COVER SWITCH
935GEN WD01X1434
943WZ5X219D GE Screw Package
944GEN WD6M13
946GEN WD01X10020
970WD9X351 GE Latch Knob
971GEN WZ02X0045
973GEN WD12X10017
