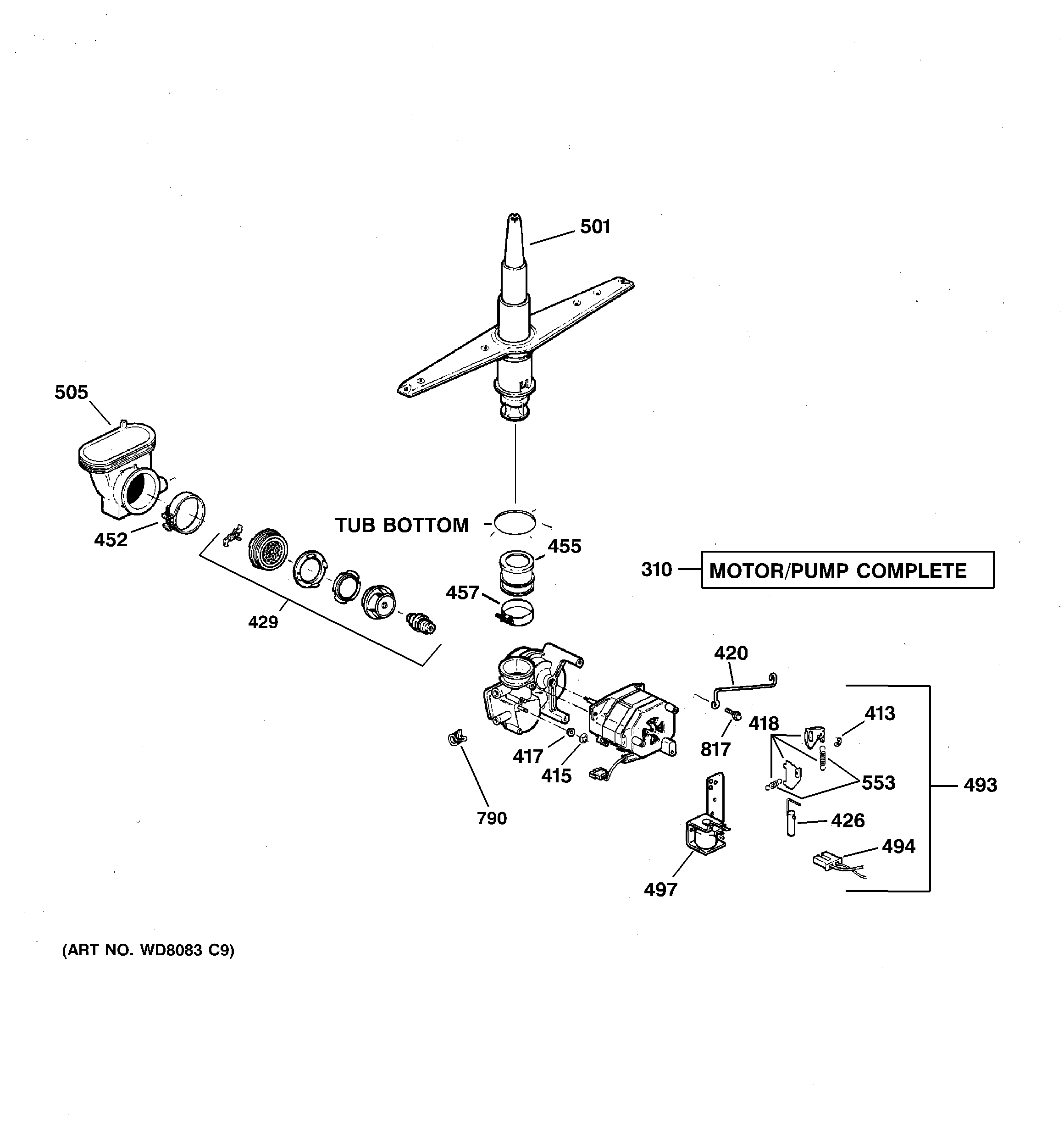

GSC3430F00WW MOTOR-PUMP MECHANISM

GSC3430F00WW MOTOR-PUMP MECHANISM

Written by

in

GSC3430F00WW MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10013 GE Dishwasher Motor and Pump Assembly
413WD3X487D GE Dishwasher Retainer Package
415WR2X7054 GE Refrigerator Push-On Nut
417WD8X181 GE Dishwasher Pump Gasket
418GEN WD35X0192
420GEN WD01X1455
426ARMATURE&LNK
429GEN WD19X0060
452WD1X1392 GE Dishwasher Sump Clamp
455WD18X214 GE Dishwasher Pump to Wash Arm Rubber Connector
457WD1X1376 GE Dishwasher Clamp
493WD21X802 GE Dishwasher Drain Solenoid
494WD1X1459 GE Dishwasher Insulation Housing
497GEN WD01X1439
501WD22X154 GE Dishwasher Wash Arm Assembly
505WD18X213 GE Dishwasher Inlet Sump Housing
553WD3X721 GE Dishwasher Spring Set
790WH1X2036 GE UNIX Clamp
817WD1X550 GE Dishwasher Screw
