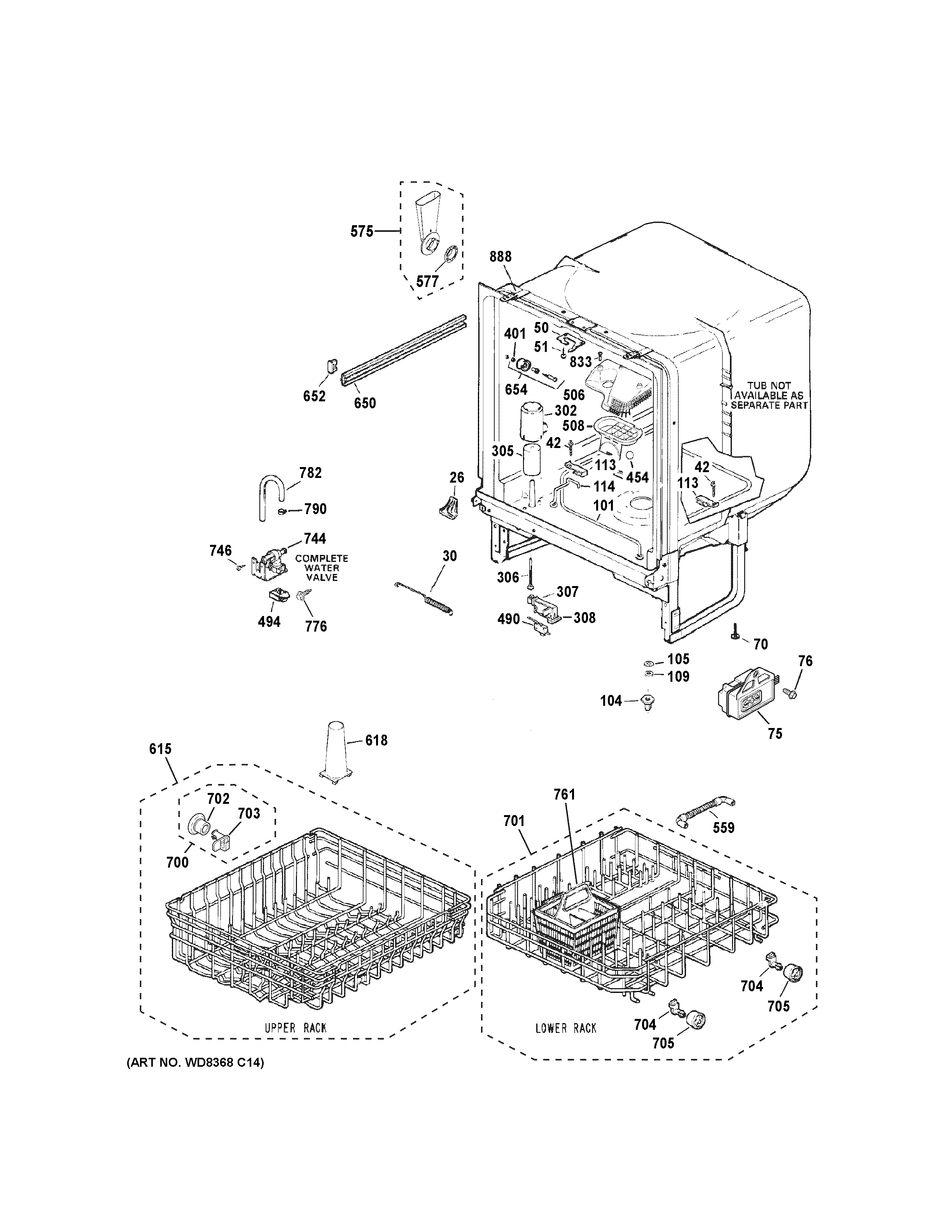

GSC3500D55WW BODY PARTS

GSC3500D55WW BODY PARTS

Written by

in

GSC3500D55WW BODY PARTS

Products

PositionProduct
26WD8X227 GE Dishwasher Right Hand Corner Seal
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
30WD03X10006 GE Dishwasher Door Spring
42SCREW #8-3/4 L HX HD SS
50WD13X67 GE Dishwasher Latch Keeper
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
75WD21X23836 GE Dishwasher Control Module Assembly
76WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
101WD05X26780 GE Dishwasher Heating Element Assembly
104WD01X10070 GE Dishwasher Nut
105GEN WD01X1168
109GEN WD08X0225
113WD01X10086 GE Dishwasher Support Calrod Assembly
114WD1X1472 GE Dishwasher Heater Support
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
454WD12X10408 GE Range Filter Cartridge
490WD21X479 GE Dishwasher Switch
494WD21X10355 GE Dishwasher Water Valve Housing Special
506WD12X10356 GE Dishwasher Inlet Cover
508WD12X10358 GE Dishwasher Sump Cap
559WD24X10041 GE Dishwasher Pump Hose
575WD49X23818 GE Dishwasher Funnel Service Kit
577WD08X23817 GE Dishwasher O-Ring
615WD28X31820 GE Dishwasher Upper Final Rack Assembly
618WD28X10367 GE Dishwasher Upper Rack Tower
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
701WD28X31819 GE Dishwasher Lower Rack
704WD35X21039 GE Dishwasher Upper Rack Kit
705WD12X23419 GE Dishwasher Lower Rack Roller
744WATER VALVE
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
776WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
782WD24X27658 GE Dishwasher Fill Funnel Hose
790WH1X2036 GE UNIX Clamp
833WD02X10195 GE Dishwasher Stainless Steel Screw 8-16 AB 1HXW 1.25
888WD35X200 GE Dishwasher Mounting Kit
