GSC3500N10BB ESCUTCHEON & DOOR ASSEMBLY

GSC3500N10BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

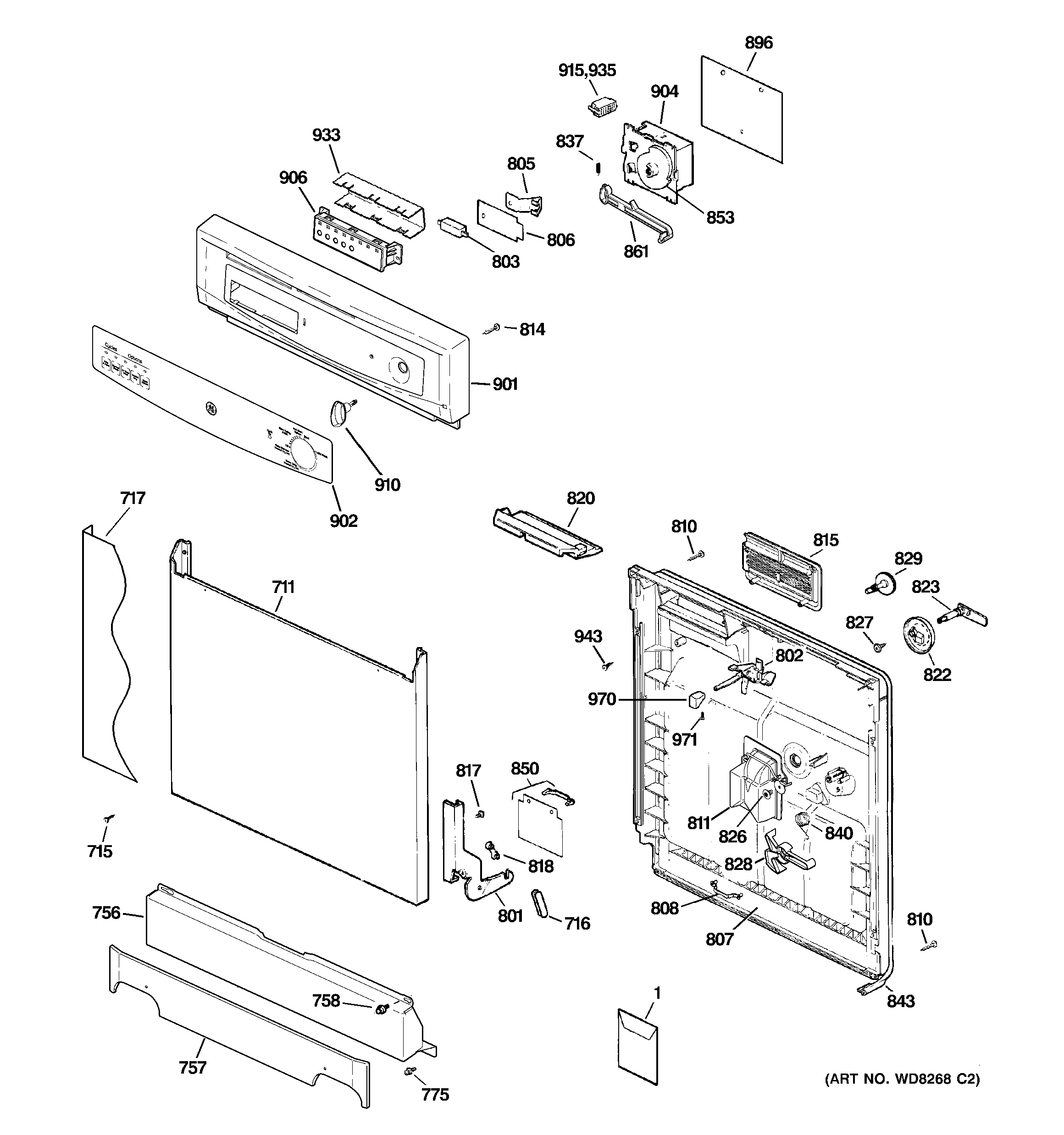

GSC3500N10BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55034-1
1GEN 31-30234
1GEN 31-30487-1
711WD31X10024 GE Dishwasher Black Front Panel
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10255 GE Dishwasher Long Front Cover
756WD27X10223 GE Dishwasher Access Panel Finished Black
757WD27X10231 GE Dishwasher Toe Kick
758WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
775GEN WD02X10127
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810GEN WD02X0296
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10264 GE Dishwasher Rinse Aid Tank Assembly
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10010
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X11328
901WD34X11307 GE Dishwasher Insert and Escutcheon Assembly
902GEN WD34X11349
904WD21X33638 GE Dishwasher Timer
906WD21X10266 GE Dishwasher Push Button Switch
910WD09X10024 GE Dishwasher Timer Control Knob
915WD01X10349 GE Dishwasher Housing Terminal
933WD12X10154 GE Dishwasher Switch Cover
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
971GEN WZ02X0045
