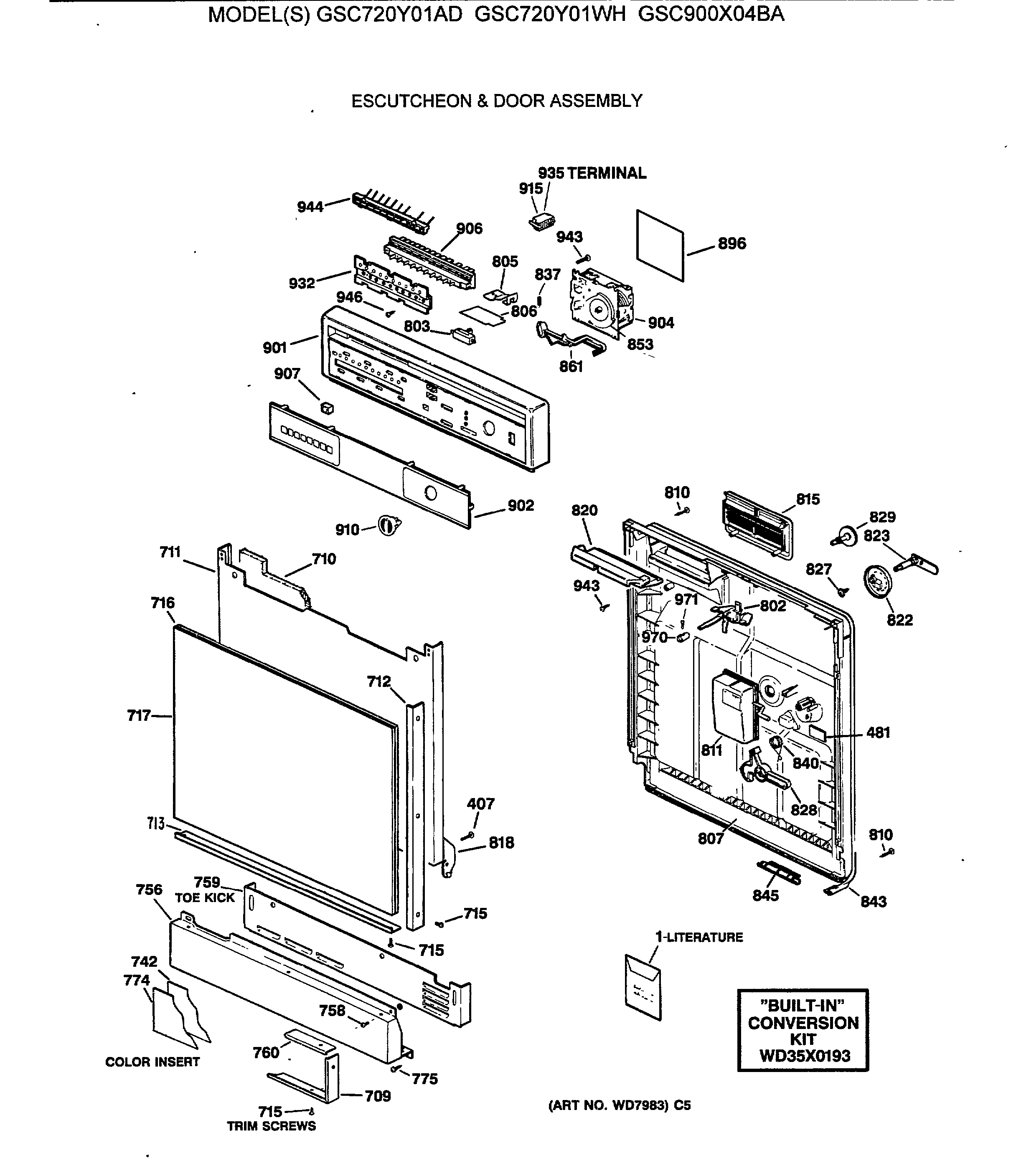

GSC720Y01WH ESCUTCHEON & DOOR ASSEMBLY

GSC720Y01WH ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC720Y01WH ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5755
1GEN 31-3009
407GEN WD03M0062
481GEN WD01X1348
711GEN WD27M0270
756PANEL ACCESS & SCR WH
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0255
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818ARM HINGE RH
818ARM HINGE LH
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
853GEN WD16X0317
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X1216
902GEN WD34X1298
904GEN WD21X0787
906GEN WD21X0732
906GEN WD21X0786
907GEN WD09X0354
910WD9X349 GE Dishwasher Timer Knob
915HOUSING TERMINAL (BLACK)
930GEN WD21X0692
932GEN WD02M0190
935GEN WH01M0937
943WZ5X219D GE Screw Package
944GEN WD06X0239
946GEN WD02X0437
970WD9X351 GE Latch Knob
971GEN WZ02X0045
