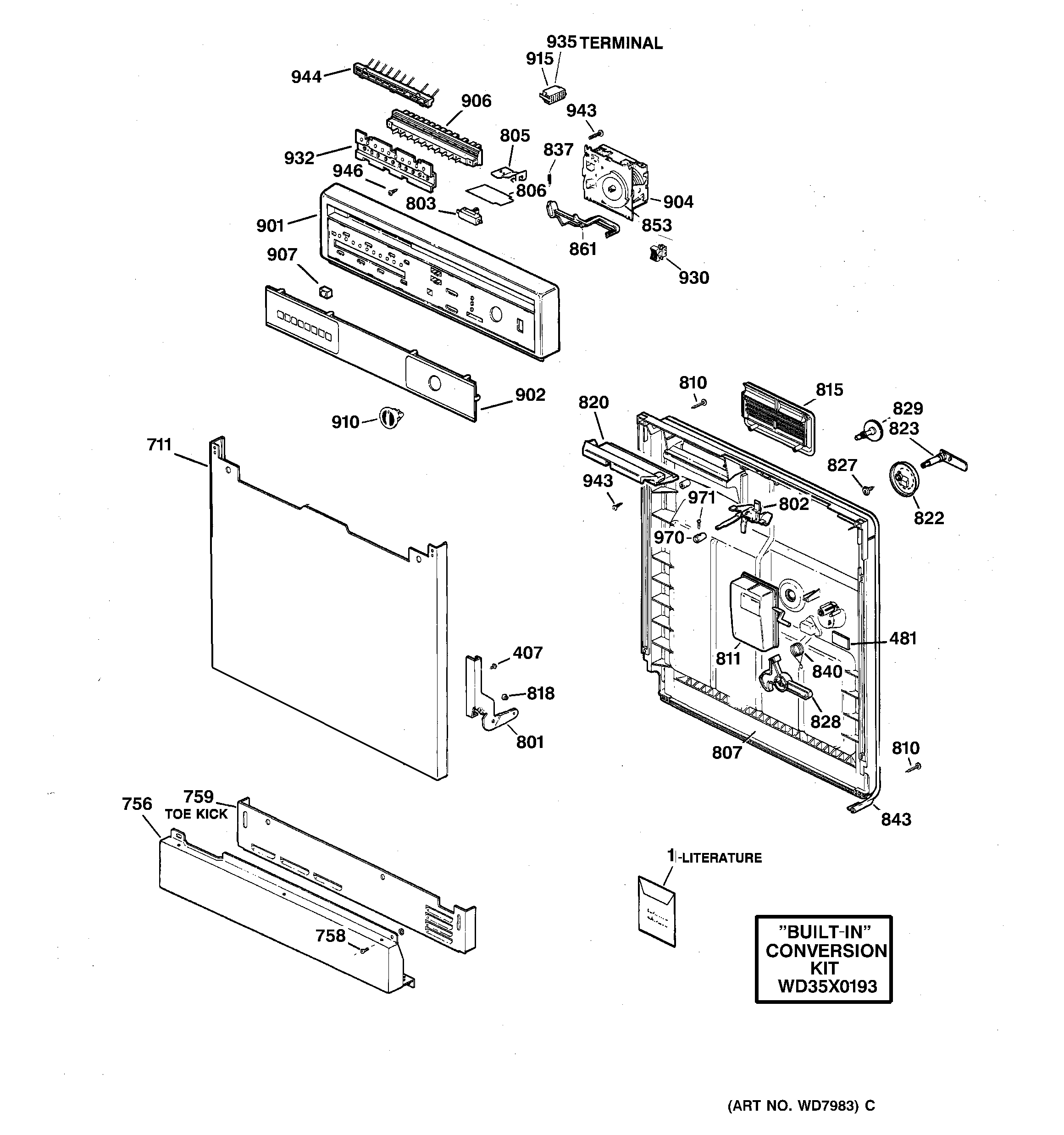

GSC720Y06WH ESCUTCHEON & DOOR ASSEMBLY

GSC720Y06WH ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC720Y06WH ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5755
1GEN 31-30106
1GEN WD01M0232
407WD1X550 GE Dishwasher Screw
481GEN WD01X1348
711GEN WD27M0270
756PANEL ACCESS & SCR WH
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0255
801ARM HINGE COMPLETE – RH
801GEN WD14X10001
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
853GEN WD16X0317
861WD12X324 GE Dishwasher Lever
901GEN WD34X1216
902GEN WD34X1298
904GEN WD21X0804
906GEN WD21X0806
907GEN WD09X0354
910WD9X349 GE Dishwasher Timer Knob
915HOUSING TERMINAL (BLACK)
930GEN WD21X0692
932GEN WD02M0190
935GEN WH01M0937
944GEN WD06X0239
946GEN WD02X0437
970WD9X351 GE Latch Knob
971GEN WZ02X0045
