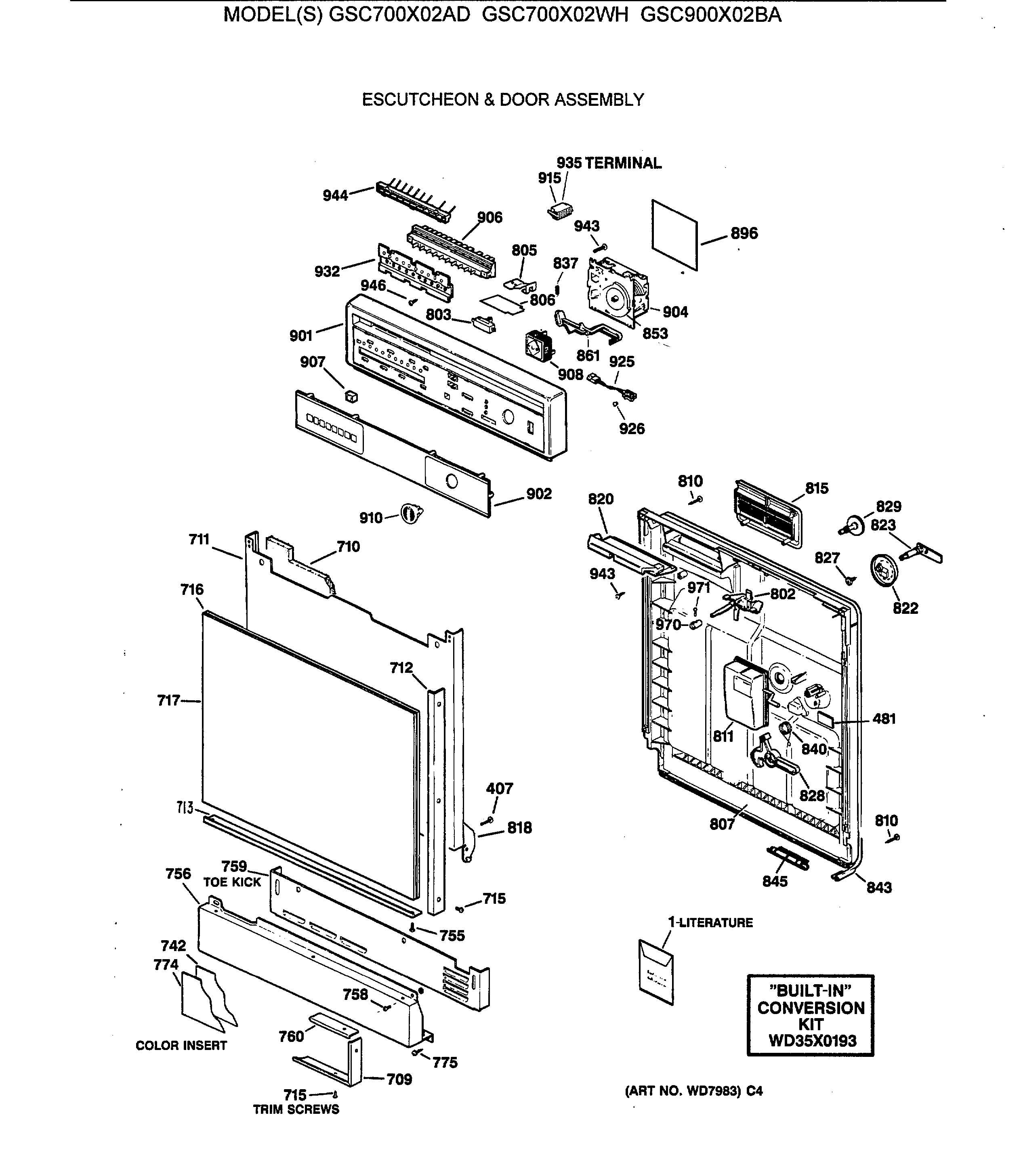

GSC900X02BA ESCUTCHEON & DOOR ASSEMBLY

GSC900X02BA ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSC900X02BA ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5703
1GEN 31-4163
407GEN WD03M0062
481GEN WD01X1348
709GEN WD34X0976
711GEN WD27M0269
711GEN WD27M0268
712GEN WD34X0961
713GEN WD34X0966
715GEN WD03M0068
717GEN WD27X0509
755WZ4X44D GE Screw Package
756PANEL ACCESS
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0255
760GEN WD34X0971
774GEN WD27X0523
775WD2X5166 GE Dishwasher Screw
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818ARM HINGE LH
818ARM HINGE RH
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
853GEN WD16X0309
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X1198
902GEN WD34X1199
904GEN WD21X0777
906GEN WD21X0727
907GEN WD09X0350
908GEN WD21X0774
910WD9X349 GE Dishwasher Timer Knob
915HOUSING TERMINAL (BLACK)
930GEN WD21X0692
932GEN WD02M0190
935GEN WH01M0937
943WZ5X219D GE Screw Package
944GEN WD06X0237
946GEN WD02X0437
971GEN WZ02X0045
