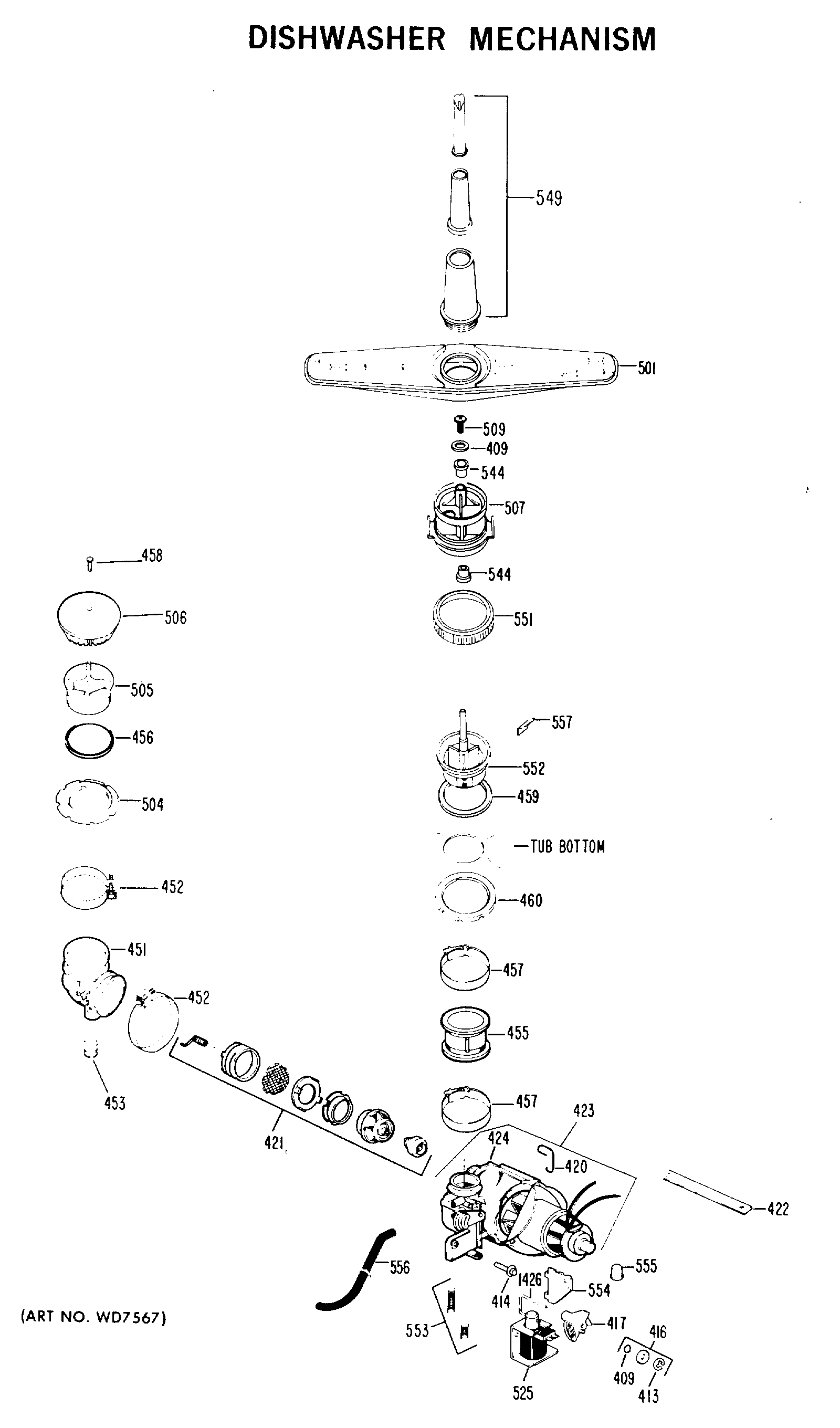

GSC902-02 DISHWASHER MECHANISM

GSC902-02 DISHWASHER MECHANISM

Written by

in

GSC902-02 DISHWASHER MECHANISM

Products

PositionProduct
409WASHER THRUST
413WD3X487D GE Dishwasher Retainer Package
414GEN WD02X5183
416WD8X181 GE Dishwasher Pump Gasket
417GEN WD12X0201
420MOTOR HANGER
421GEN WD17X0057
422GEN WD01X5486
423WD26X10013 GE Dishwasher Motor and Pump Assembly
424GEN WD19X0042
451GEN WD08X5094
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD12X0213
455GEN WD18X0175
456SUPPORT GASKET
457WD1X1376 GE Dishwasher Clamp
458SCR 8-15 A PA 3/4 SS
459GEN WD08X5093
460GEN WD03X0627
501GEN WD22X5056
504SUMP INLET NUT
505GEN WD12X5027
506SUMP COVER
507GEN WD22X0089
509SCR 10-32X.300 TRUSS HD
544BEARING SPRAY ARM
549PS KIT POWER TOWER
551GEN WD19X0044
552GEN WD22X0114
553WD3X721 GE Dishwasher Spring Set
554GEN WD01X1283
556WH1X2036 GE UNIX Clamp
557CHECK VALVE
