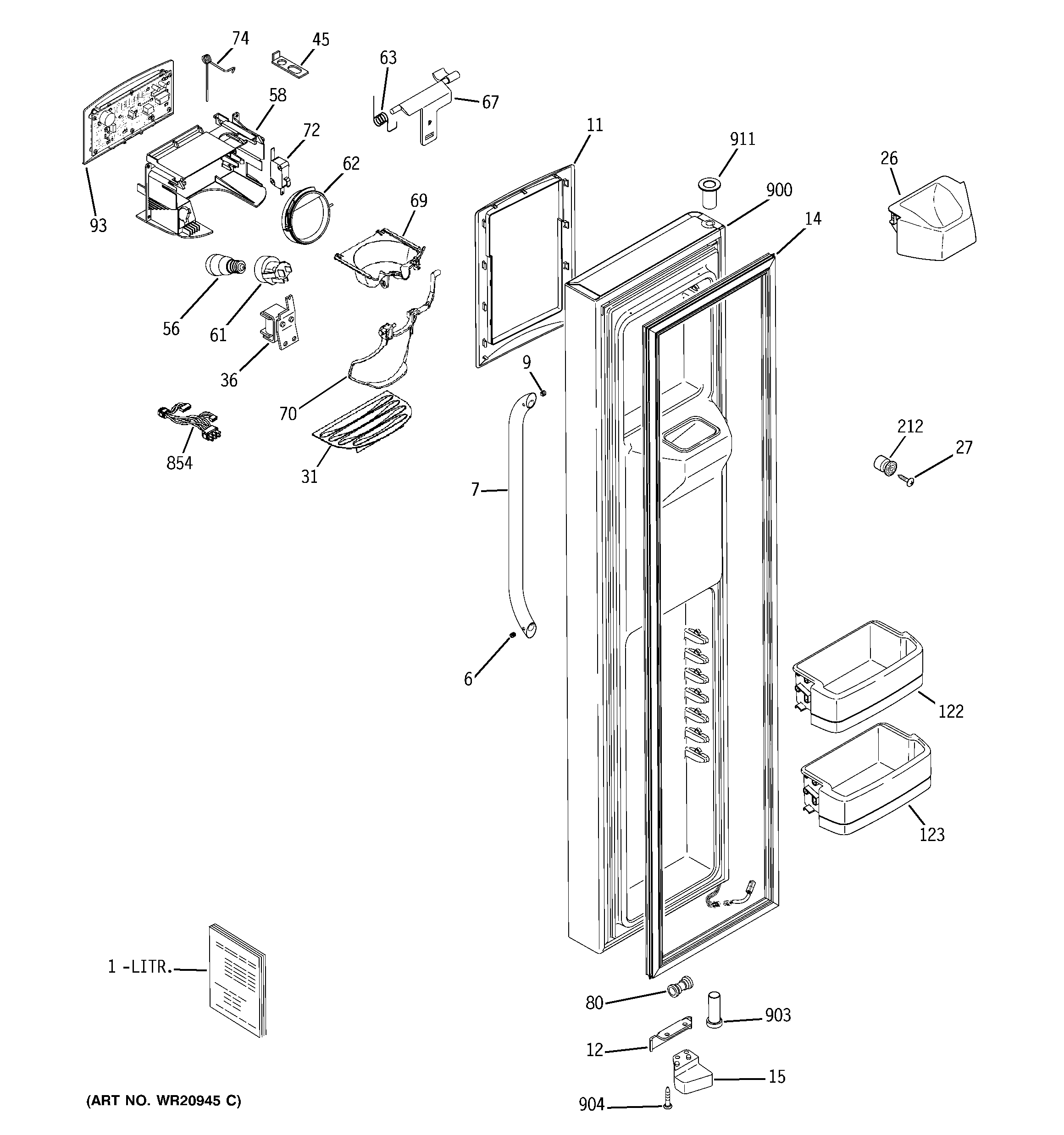

GSCF3PGXGFWW FREEZER DOOR

GSCF3PGXGFWW FREEZER DOOR

Written by

in

GSCF3PGXGFWW FREEZER DOOR

Products

PositionProduct
1GEN 31-51660
1GEN 49-60646
6WR01X10450 GE Refrigerator Screw Set
7WR12X10908 GE Refrigerator Tubulur Handle Assembly
7WR12X10907 GE Refrigerator Tubulur Handle Assembly
9WR02X12800 GE Refrigerator Stainless Steel Handle Fastener
11GEN WR38X10419
11TRIM RECESS DISP CLAD
12WR02X13425 GE Refrigerator Door Stop
12WR02X13424 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
15WR02X10638 GE Refrigerator Cam Closure
26WR71X10705 GE Refrigerator Ice Guide
27WR01X10857 GE Scr 8-18 Ab Flp 7/8 S
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X12785 GE Refrigerator Housing Shield Dispenser
58WR17X12784 GE Refrigerator Housing Shield Dispenser
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X21781 GE Refrigerator Dispenser Ice Funnel
70WR17X12121 GE Refrigerator Paddle Ice Dispenser White
70WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10800
93GEN WR55X10799
122WR71X10291 GE Refrigerator Shelf Module
123WR71X10501 GE Refrigerator Fixed Shelf Module
212WR02X10689 GE Refrigerator Base Grille Grommet
854GEN WR23X10657
900GEN WR78X12204
900DOOR FOAM ASM
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
911WR01X10955 GE Refrigerator Door Thimble
