GSD1200G02 1

GSD1200G02 1

Written by

in

GSD1200G02 1

Products

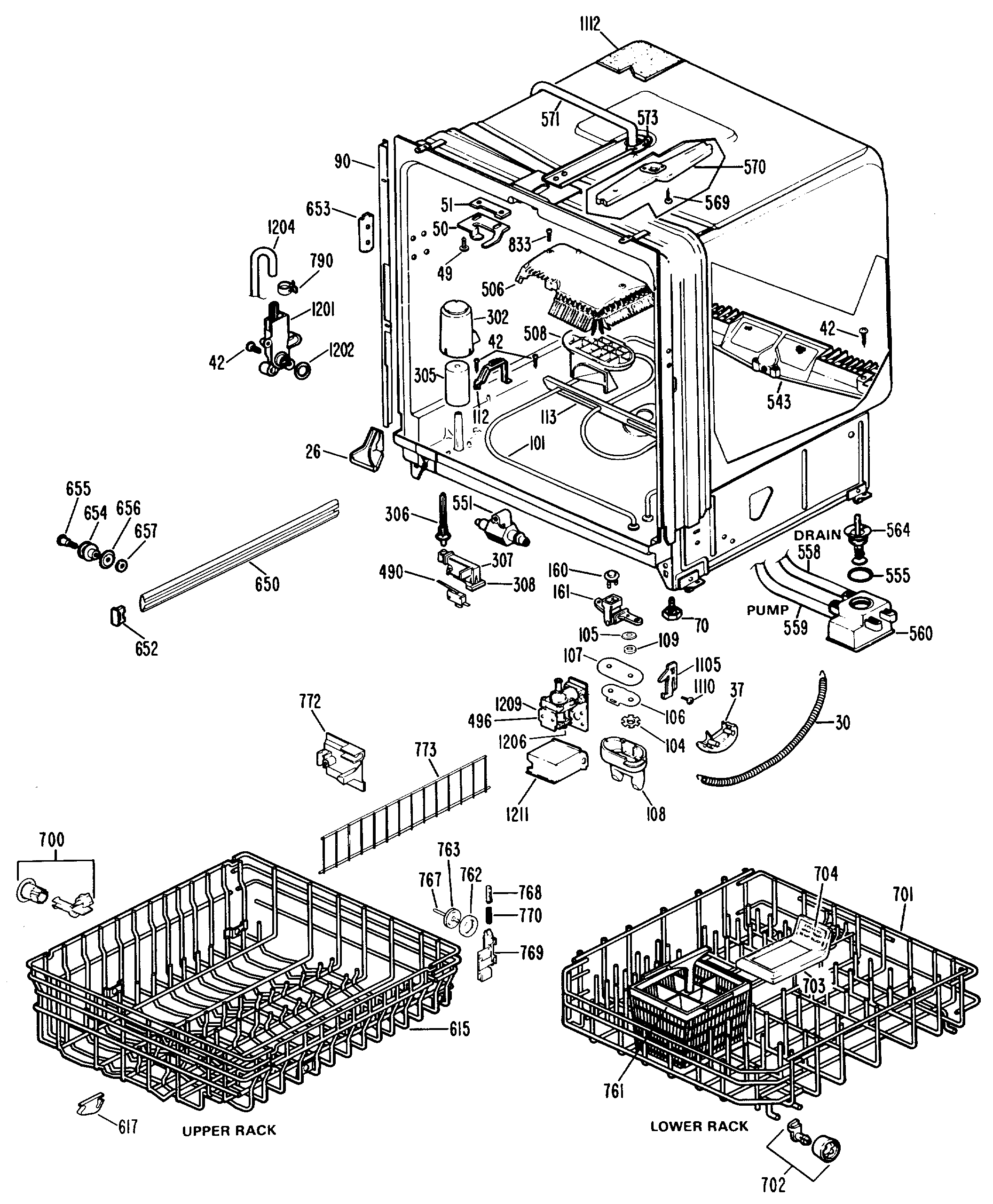

PositionProduct
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
26WD8X227 GE Dishwasher Right Hand Corner Seal
30GEN WD01X1286
37GEN WD12X0203
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
49GEN WD03X0441
50KEEPER LATCH
51GEN WD13X0048
70GEN WD02X0280
90TRIM TUB FLANGE
101WD05X26780 GE Dishwasher Heating Element Assembly
104GEN WD01X1289
105GEN WD01X1168
106GEN WD01X1350
107GEN WD01X1351
108GEN WD01X1352
109GEN WD08X0225
112FRONT HEATER SUPPORT
113REAR HEATER SUPPORT
160GEN WD21X0575
161RECEPTACLE THERMOSTAT
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
408GEN WD02X0296
490WD21X479 GE Dishwasher Switch
496GEN WD12X0349
506WD12X417 GE Dishwasher Cover
543FILTER FRAME ASM
551GEN WD12X0299
555GEN WD08X0219
558GEN WD24X0197
559GEN WD24X0198
560GEN WD24X0196
564WD24X10018 GE Assembly Piston and Nut
569GEN WD01X1297
570WD28X10103 GE Spray Arm Assembly
571POWER SHOWER HOSE
573GEN WD01X1007
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
653GEN WD02X0273
654GEN WD12X0273
655GEN WD01X1275
656GEN WD08X0207
657GEN WD01X1276
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701RACK LOWER ASM
702WD12X271 GE Dishwasher Roller
703GEN WD12X0351
704GEN WD12X0352
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
744WD15X93 GE Dishwasher Water Inlet Fill Valve
745JUNCTION BOX COVER
761SILVERWARE BASKET
762GEN WD12X0312
763GEN WD12X0280
767GEN WD28X0244
768GEN WD12X0283
768GEN WD12X0286
769GEN WD12X0285
769GEN WD12X0284
770GEN WD01X1279
772SUPPORT SHELF
773WD28X31820 GE Dishwasher Upper Final Rack Assembly
776GEN WZ05X0222
780GEN WD24X0191
781GEN WD08X0192
782GEN WD18X0189
787WD2X5166 GE Dishwasher Screw
790WH1X2036 GE UNIX Clamp
833WD2X295 GE Refrigerator Screw
1105GEN WD03X0753
1112INSULATION
