GSD1200L01 1

GSD1200L01 1

Written by

in

GSD1200L01 1

Products

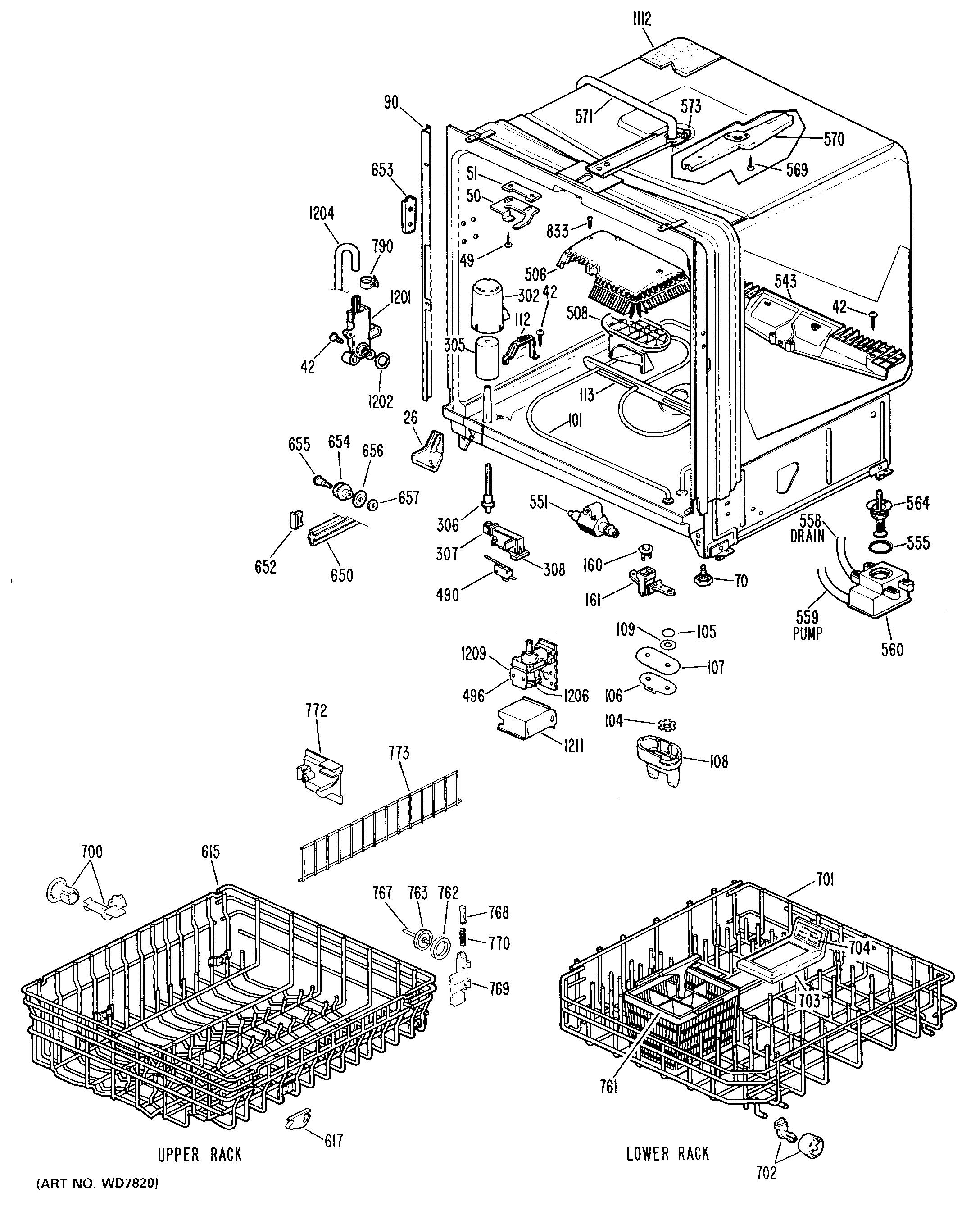

Position	Product
26	WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
26	WD8X227 GE Dishwasher Right Hand Corner Seal
42	WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
49	GEN WD03X0441
50	KEEPER LATCH
51	GEN WD13X0048
70	GEN WD02X0280
90	TRIM TUB FLANGE
101	WD05X26780 GE Dishwasher Heating Element Assembly
104	GEN WD01X1289
105	GEN WD01X1168
106	GEN WD01X1350
107	GEN WD01X1351
108	GEN WD01X1352
109	GEN WD08X0225
112	FRONT HEATER SUPPORT
113	REAR HEATER SUPPORT
160	GEN WD21X0575
161	RECEPTACLE THERMOSTAT
302	WD12X445 GE Dishwasher Float Dome
305	WD12X334 GE Dishwasher Float
306	WD12X335 GE Dishwasher Float Stem
307	WD12X10023 GE Dishwasher Bracket
308	GEN WD12X0377
490	WD21X479 GE Dishwasher Switch
496	GEN WD12X0349
506	WD12X417 GE Dishwasher Cover
508	WD12X418 GE Dishwasher Sump Cap
543	FILTER FRAME ASM
551	GEN WD12X0299
555	GEN WD08X0219
558	GEN WD24X0197
559	GEN WD24X0198
560	GEN WD24X0196
564	WD24X10018 GE Assembly Piston and Nut
569	GEN WD01X1297
570	WD28X10103 GE Spray Arm Assembly
571	HOSE POWER SHOWER
573	GEN WD01X1007
615	RACK UPPER TM
650	WD30X98 GE Dishwasher Slide Assembly
652	WD12X10304 GE Dishwasher Rack Slide Endcap (White)
653	GEN WD02X0273
654	GEN WD12X0273
655	GEN WD01X1275
656	GEN WD08X0207
657	GEN WD01X1276
701	GEN WD28X0268
702	WD12X271 GE Dishwasher Roller
703	GEN WD12X0396
704	GEN WD12X0395
705	WD35X21038 GE Dishwasher Upper Rack Wheel Kit
744	WD15X93 GE Dishwasher Water Inlet Fill Valve
745	JUNCTION BOX COVER
761	SILVERWARE BASKET
762	GEN WD12X0312
763	GEN WD12X0280
767	GEN WD28X0244
768	GEN WD12X0283
768	GEN WD12X0286
769	GEN WD12X0285
769	GEN WD12X0284
770	GEN WD01X1279
772	SUPPORT SHELF TM
773	SHELF RACK TM
777	INSULATION
780	GEN WD24X0191
781	GEN WD08X0192
782	GEN WD18X0189
787	WD2X5166 GE Dishwasher Screw
790	WH1X2036 GE UNIX Clamp
833	WD2X295 GE Refrigerator Screw
