GSD1200T-02 DISHWASHER MECHANISM

GSD1200T-02 DISHWASHER MECHANISM

Written by

in

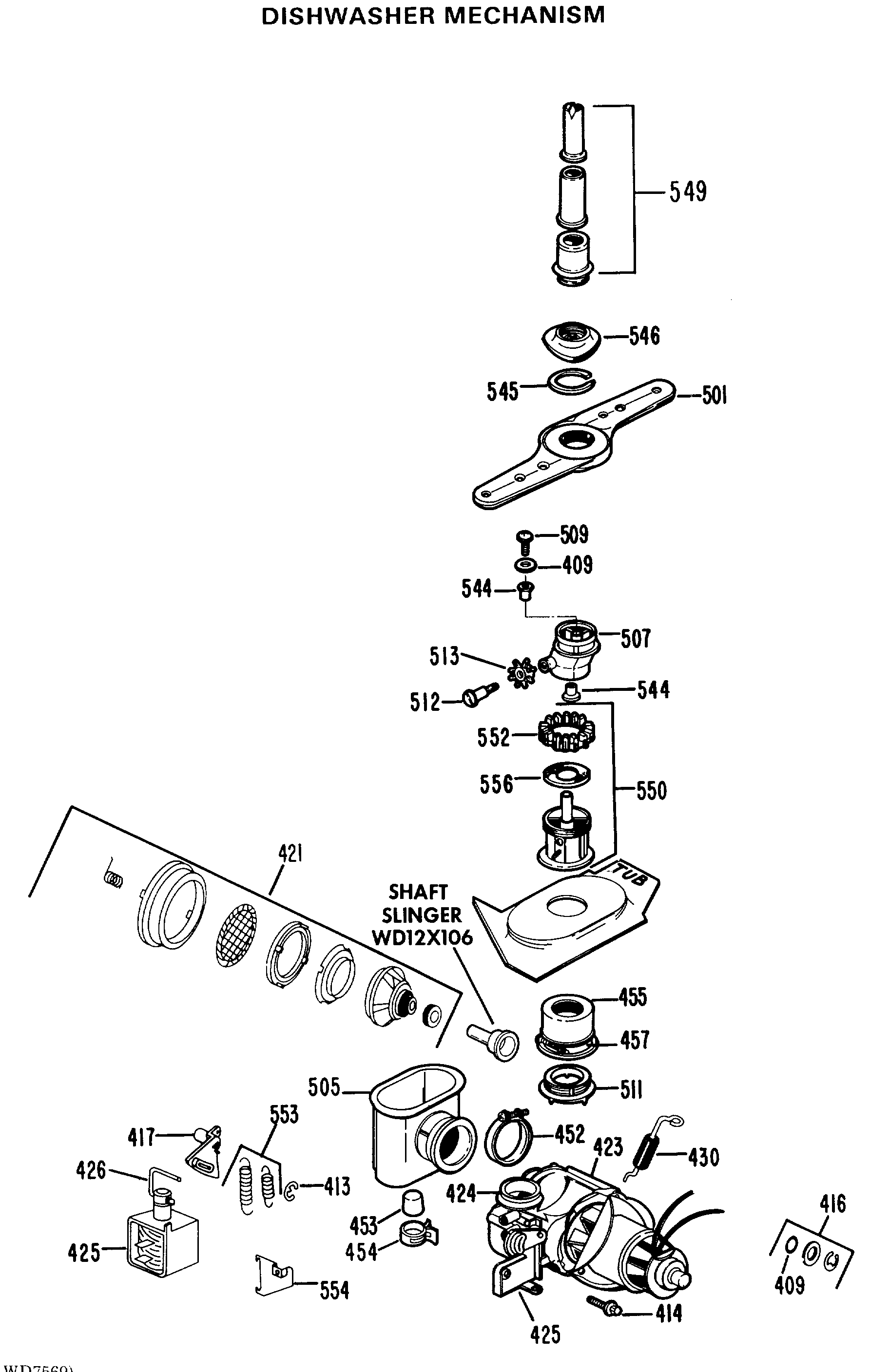

GSD1200T-02 DISHWASHER MECHANISM

Products

PositionProduct
409WASHER THRUST
413WD3X487D GE Dishwasher Retainer Package
414GEN WD02X5183
416WD8X181 GE Dishwasher Pump Gasket
417GEN WD12X0201
421GEN WD17X0057
423WD26X10013 GE Dishwasher Motor and Pump Assembly
424GEN WD19X0042
425WD21X802 GE Dishwasher Drain Solenoid
425GEN WD01X1282
426ARMATURE&LNK
430GEN WD01X1184
430GEN WD02X0291
430GEN WD01X1185
430U TYPE FASTENER
452WD1X1392 GE Dishwasher Sump Clamp
455GEN WD18X0193
457WD1X1376 GE Dishwasher Clamp
505WD12X418 GE Dishwasher Sump Cap
507GEN WD22X0101
509SCR 10-32X.300 TRUSS HD
511SPRAY ARM SUPPORT NUT
512GEN WD02X0314
512GEN WD02X5154
513GEN WD12X0301
544BEARING SPRAY ARM
545GEN WD22X0103
549PS KIT POWER TOWER
550GEN WD22X0108
552GEN WD12X0300
553WD3X721 GE Dishwasher Spring Set
554GEN WD01X1283
556TEFLON SEAL
