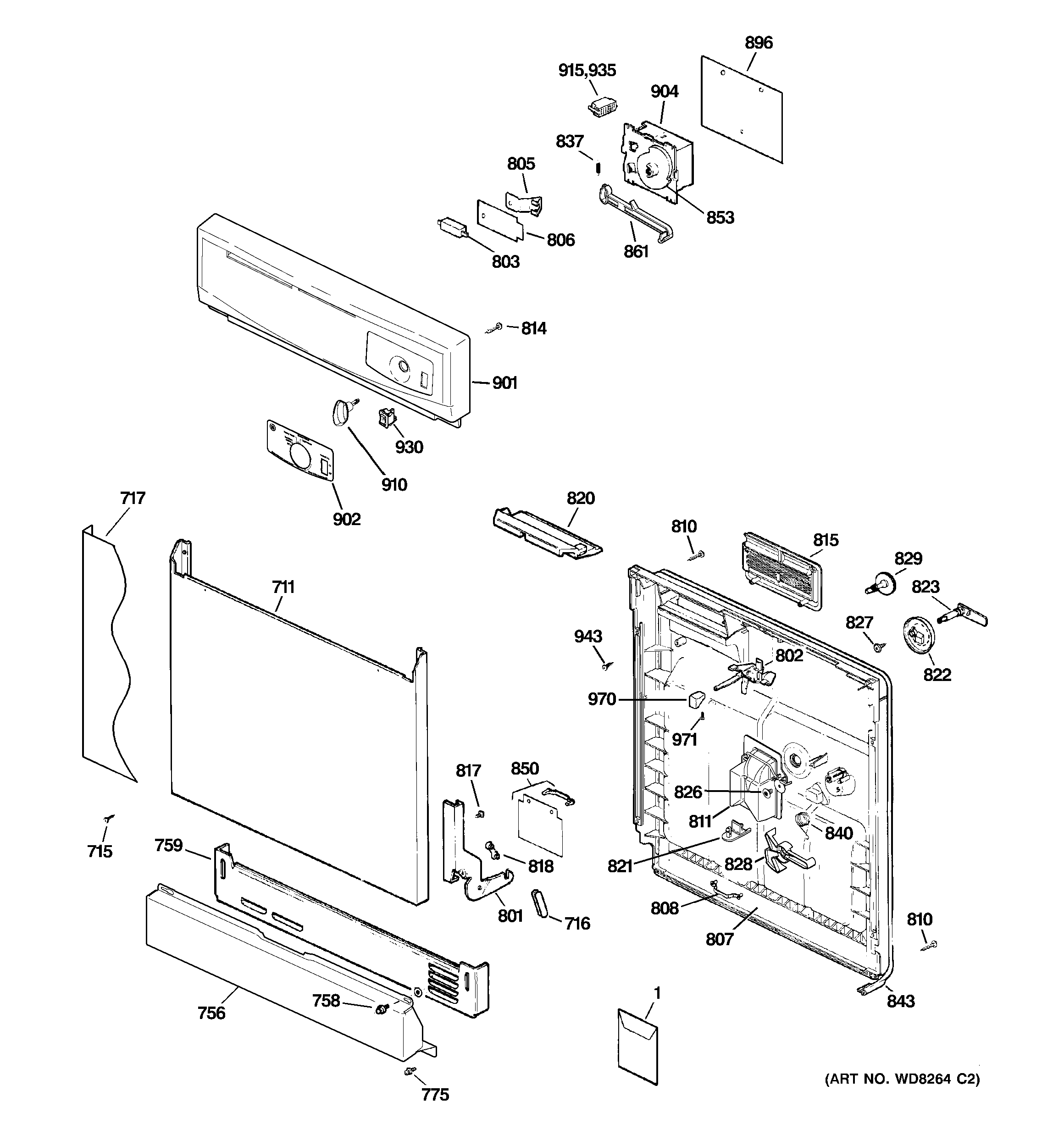

GSD1300N20WW ESCUTCHEON & DOOR ASSEMBLY

GSD1300N20WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD1300N20WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30218
1GEN 31-30491-2
1GEN 31-30491-1
1GEN 49-55023
711WD31X10025 GE Dishwasher Front Panel
716WD14X10009 GE Dishwasher Hinge Link Arm
756WD27X10225 GE Dishwasher Finished Access Panel
758WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
759WD27X10066 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810GEN WD02X0296
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10264 GE Dishwasher Rinse Aid Tank Assembly
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD1X1467 GE Dishwasher Vent Pad
821WD01X10415 GE Dishwasher Rinse Aid Tank Clip
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10010
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X11309
901GEN WD34X11333
902GEN WD34X11355
904WD21X33643 GE Dishwasher Timer
910WD09X10025 GE Dishwasher Timer Control Knob
915WD01X10349 GE Dishwasher Housing Terminal
930WD21X10413 GE Dishwasher Rocker Switch
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
