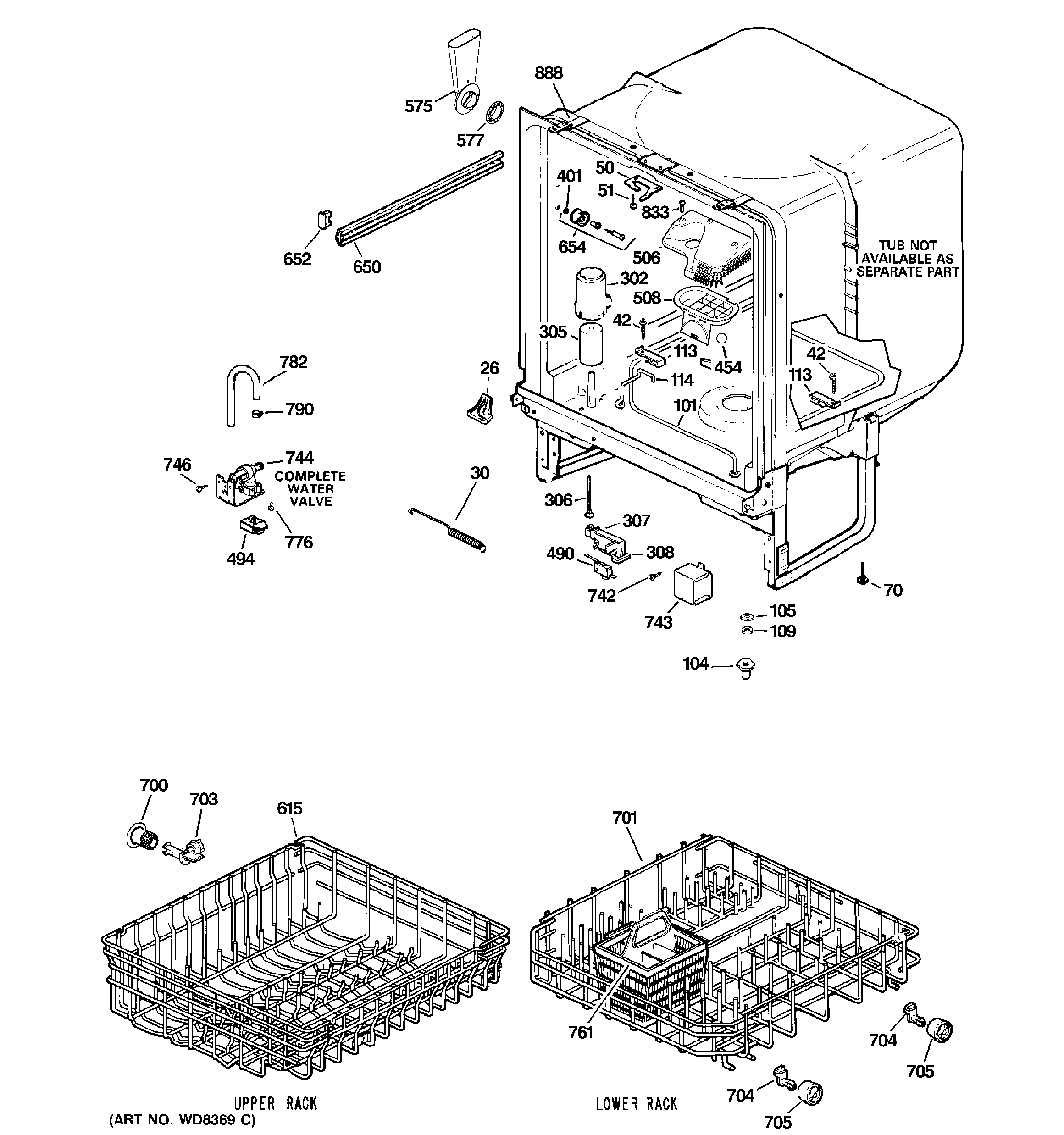

GSD1300N35WW BODY PARTS

GSD1300N35WW BODY PARTS

Written by

in

GSD1300N35WW BODY PARTS

Products

PositionProduct
26WD8X227 GE Dishwasher Right Hand Corner Seal
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
30WD03X10006 GE Dishwasher Door Spring
42SCREW #8-3/4 L HX HD SS
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
101WD05X26780 GE Dishwasher Heating Element Assembly
104WD01X10070 GE Dishwasher Nut
105GEN WD01X1168
109GEN WD08X0225
113WD01X10086 GE Dishwasher Support Calrod Assembly
114WD1X1472 GE Dishwasher Heater Support
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
454WD12X10408 GE Range Filter Cartridge
490WD21X479 GE Dishwasher Switch
506WD12X10356 GE Dishwasher Inlet Cover
508WD12X10358 GE Dishwasher Sump Cap
575WD12X22722 GE Dishwasher Fill Funnel
577WD08X10020 GE Dishwasher Fill Funnel Gasket
615WD28X31820 GE Dishwasher Upper Final Rack Assembly
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
701WD28X31819 GE Dishwasher Lower Rack
704WD35X21039 GE Dishwasher Upper Rack Kit
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
744WD15X10014 GE Dishwasher Water Inlet Fill Valve
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
776WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
782WD18X202 GE Dishwasher Fill Hose
790WH1X2036 GE UNIX Clamp
833WD02X10195 GE Dishwasher Stainless Steel Screw 8-16 AB 1HXW 1.25
888WD35X200 GE Dishwasher Mounting Kit
