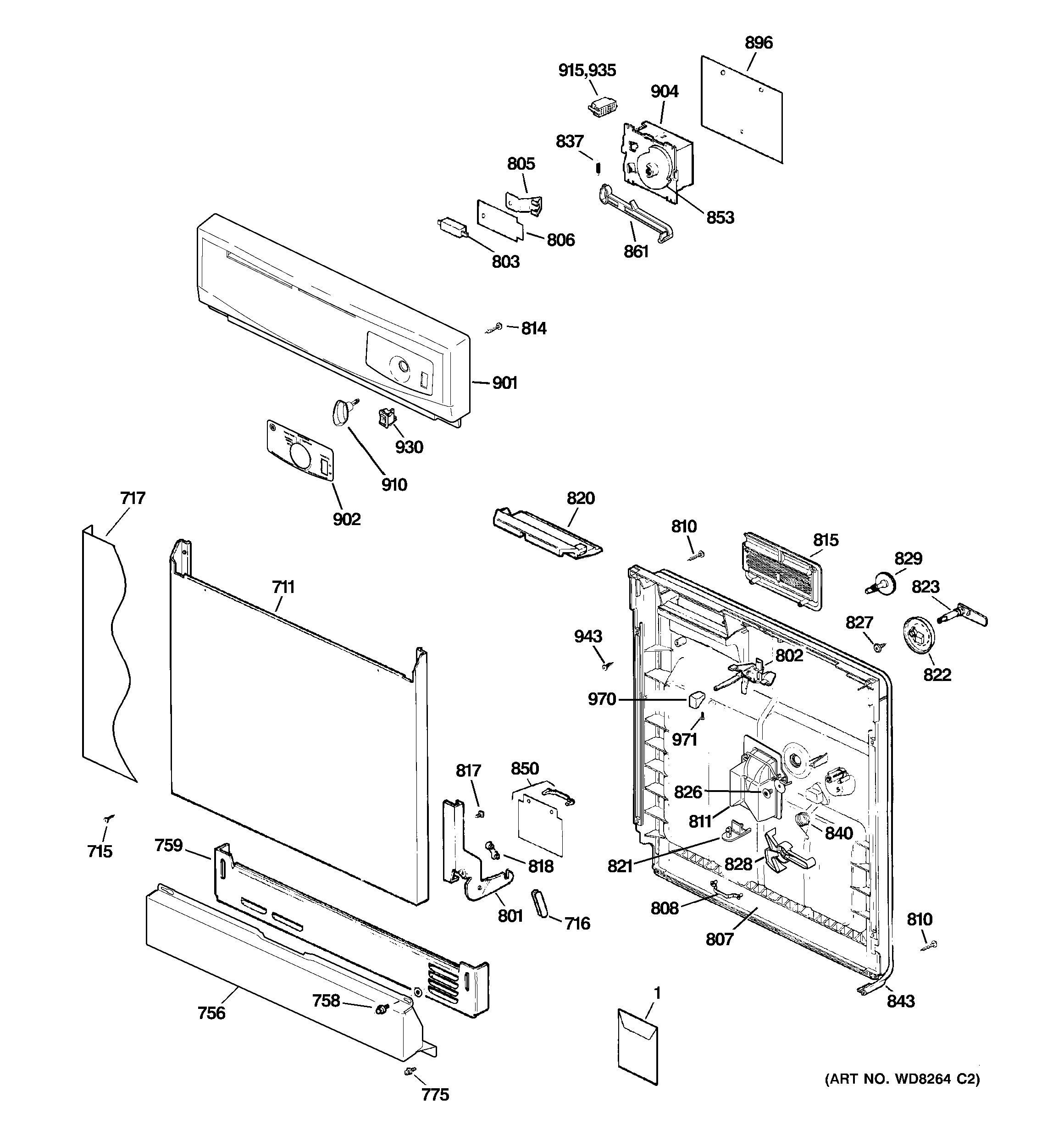

GSD1300N35WW ESCUTCHEON & DOOR ASSEMBLY

GSD1300N35WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD1300N35WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN WD21X10473
1HARNESS REPLACED LABEL
1GEN 31-30255
1GEN 49-55076-1
1GEN 31-30627
711WD31X10025 GE Dishwasher Front Panel
716WD14X10009 GE Dishwasher Hinge Link Arm
756WD27X10225 GE Dishwasher Finished Access Panel
758WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
759WD27X10066 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD2X5166 GE Dishwasher Screw
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10264 GE Dishwasher Rinse Aid Tank Assembly
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10026 GE Dishwasher Vent Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
826WD01X10415 GE Dishwasher Rinse Aid Tank Clip
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837WD03X10034 GE Dishwasher Timer Lever Spring
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10010
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X11843
902GEN WD34X11355
904GEN WD21X10438
910WD09X10025 GE Dishwasher Timer Control Knob
915WD01X10349 GE Dishwasher Housing Terminal
930WD21X10413 GE Dishwasher Rocker Switch
935GEN WD01X1434
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
