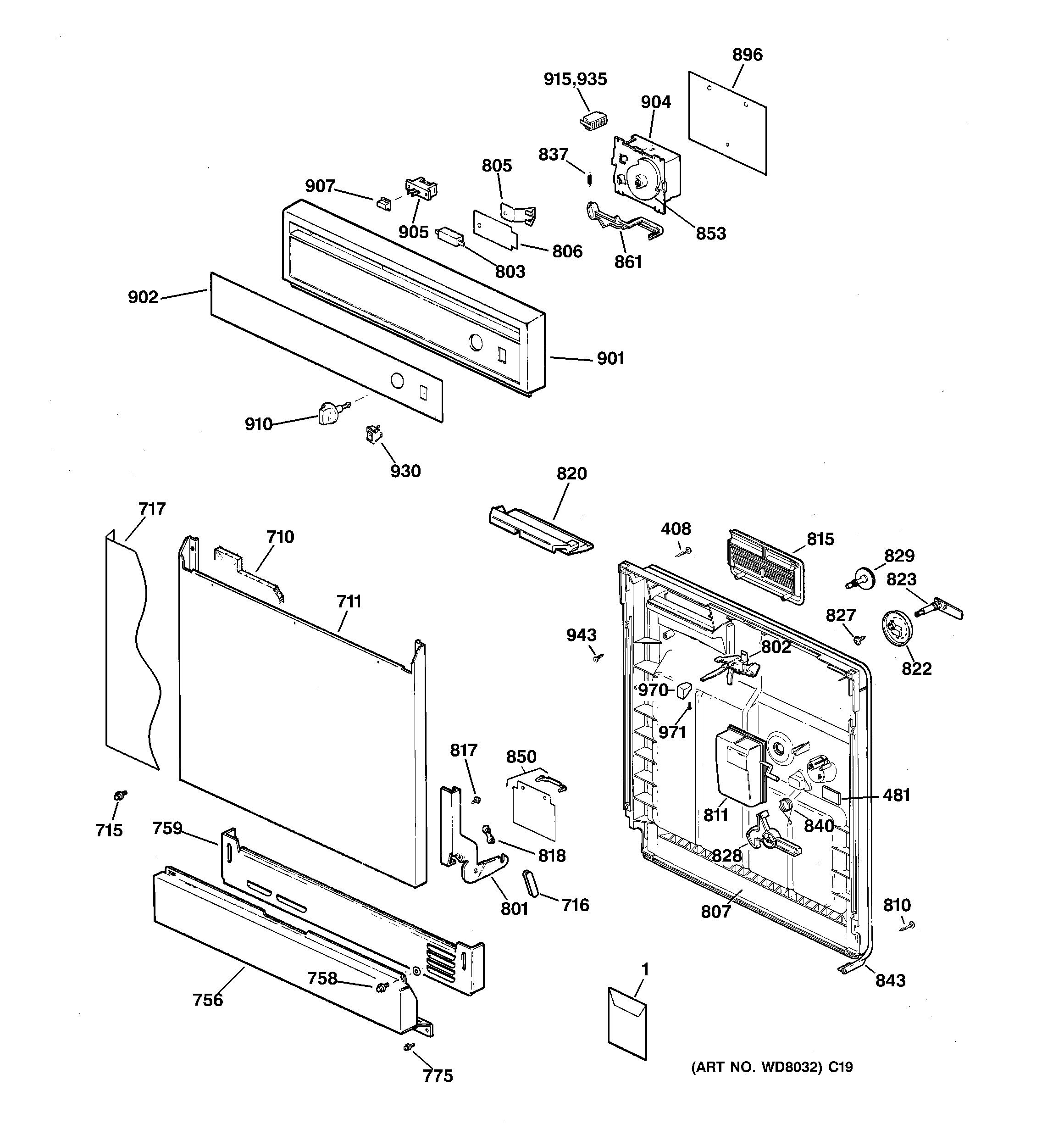

GSD2422F00BB ESCUTCHEON & DOOR ASSEMBLY

GSD2422F00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD2422F00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30301
1GEN 49-5885
1GEN 31-30515
408GEN WD02X0296
711GEN WD31X10010
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10043
756PANEL ACCESS FIN BK
758GEN WD02X10056
759GEN WD27X10009
775WD02X10057 GE Dishwasher Screw 10-16 x 1
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10001
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10432
901GEN WD34X10256
902GEN WD34X10443
904WD21X10013 GE Dishwasher Control Timer
905GEN WD21X0806
907GEN WD09X0354
910WD09X10024 GE Dishwasher Timer Control Knob
915GEN WD01X1432
930GEN WD21X10083
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
971GEN WZ02X0045
