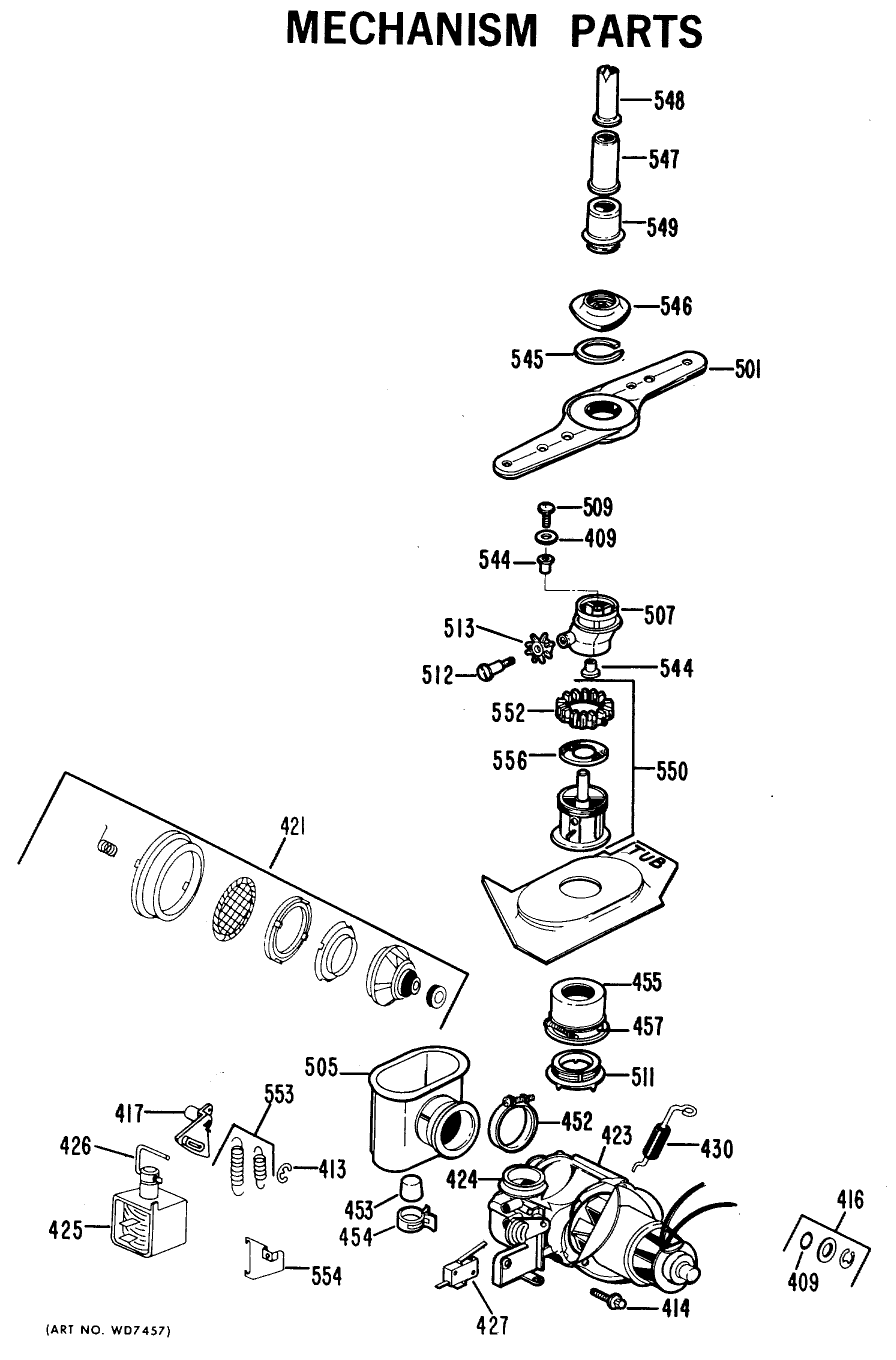

GSD2500-02 MECHANISM PARTS

Products

Position	Product
409	WASHER THRUST
413	WD3X487D GE Dishwasher Retainer Package
414	GEN WD02X5183
416	WD8X181 GE Dishwasher Pump Gasket
417	GEN WD12X0201
421	GEN WD17X0057
423	WD26X10013 GE Dishwasher Motor and Pump Assembly
424	GEN WD19X0049
425	WD21X802 GE Dishwasher Drain Solenoid
425	GEN WD01X1282
426	ARMATURE&LNK
427	GEN WD01X1325
427	WD21X479 GE Dishwasher Switch
430	U TYPE FASTENER
430	GEN WD01X1185
430	GEN WD01X1184
430	GEN WD02X0291
452	WD1X1392 GE Dishwasher Sump Clamp
453	PUMP CONNECTOR
454	WH1X2036 GE UNIX Clamp
455	GEN WD18X0193
457	WD1X1376 GE Dishwasher Clamp
505	WD12X418 GE Dishwasher Sump Cap
507	GEN WD22X0101
509	SCR 10-32X.300 TRUSS HD
511	SPRAY ARM SUPPORT NUT
512	GEN WD02X0314
512	GEN WD02X5154
513	GEN WD12X0301
544	BEARING SPRAY ARM
545	GEN WD22X0103
546	GEN WD22X0102
547	GEN WD22X0105
548	GEN WD00X0026
549	GEN WD22X0104
550	GEN WD22X0108
552	GEN WD12X0300
553	WD3X721 GE Dishwasher Spring Set
554	GEN WD01X1283
556	TEFLON SEAL
