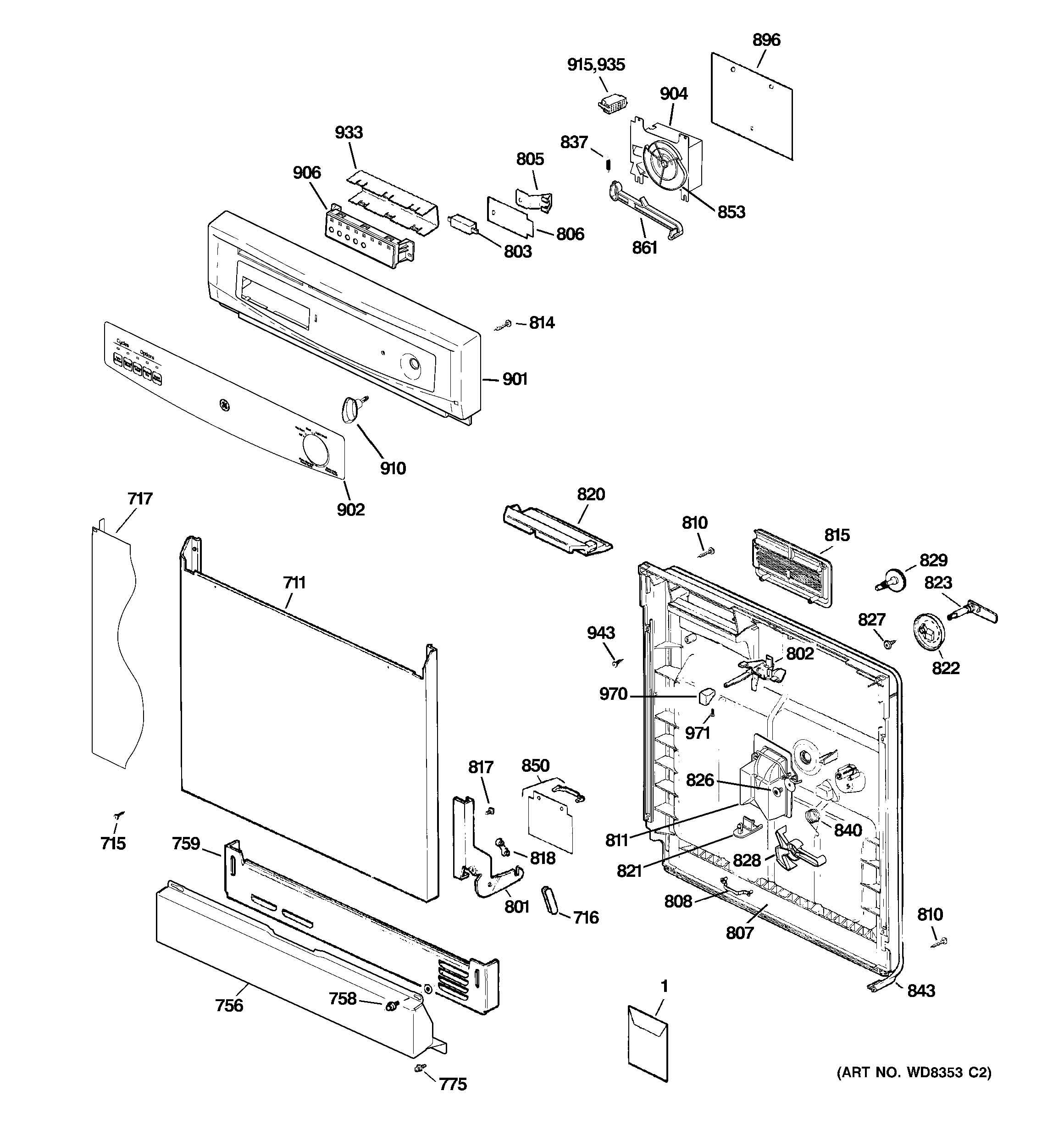

GSD3300R00BB ESCUTCHEON & DOOR ASSEMBLY

GSD3300R00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD3300R00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55063
1GEN 31-30612
1GEN 31-30255
711WD31X10026 GE Dishwasher Long Front Panel
711WD31X10024 GE Dishwasher Black Front Panel
711WD31X10025 GE Dishwasher Front Panel
715WD2X432 GE Dishwasher Screw
715WD2X434 GE Dishwasher Trim Screw
715WD2X433 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
717WD27X10255 GE Dishwasher Long Front Cover
717GEN WD27X10078
756WD27X10222 GE Dishwasher Finished Access Panel CC
756WD27X10225 GE Dishwasher Finished Access Panel
756WD27X10223 GE Dishwasher Access Panel Finished Black
758WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
759WD27X10066 GE Dishwasher Toe Panel Kit
759WD27X10068 GE Dishwasher Toe Panel Kit
759WD27X10072 GE Dishwasher Toe Panel Kit
775GEN WD02X10127
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
810GEN WD02X0296
811WD12X10264 GE Dishwasher Rinse Aid Tank Assembly
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD1X1467 GE Dishwasher Vent Pad
821WD01X10415 GE Dishwasher Rinse Aid Tank Clip
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853WD16X10012 GE Dishwasher Timer Cam
861WD12X324 GE Dishwasher Lever
896DRIP SHIELD
901GEN WD34X11328
901GEN WD34X11539
901ESCUTCHEON
901GEN WD34X11329
901GEN WD34X11541
901GEN WD34X11540
902GEN WD34X11573
902GRAPHIC & INSERT ASM
902GEN WD34X11572
904WD21X33642 GE Dishwasher Timer
906WD21X10267 GE Dishwasher Pushbutton Switch
910WD09X10024 GE Dishwasher Timer Control Knob
910WD09X10025 GE Dishwasher Timer Control Knob
910WD09X10031 GE Dishwasher Timer Knob
915WD01X10349 GE Dishwasher Housing Terminal
933WD12X10154 GE Dishwasher Switch Cover
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD09X10020 GE Dishwasher Knob Latch Handle
970WD9X351 GE Latch Knob
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
