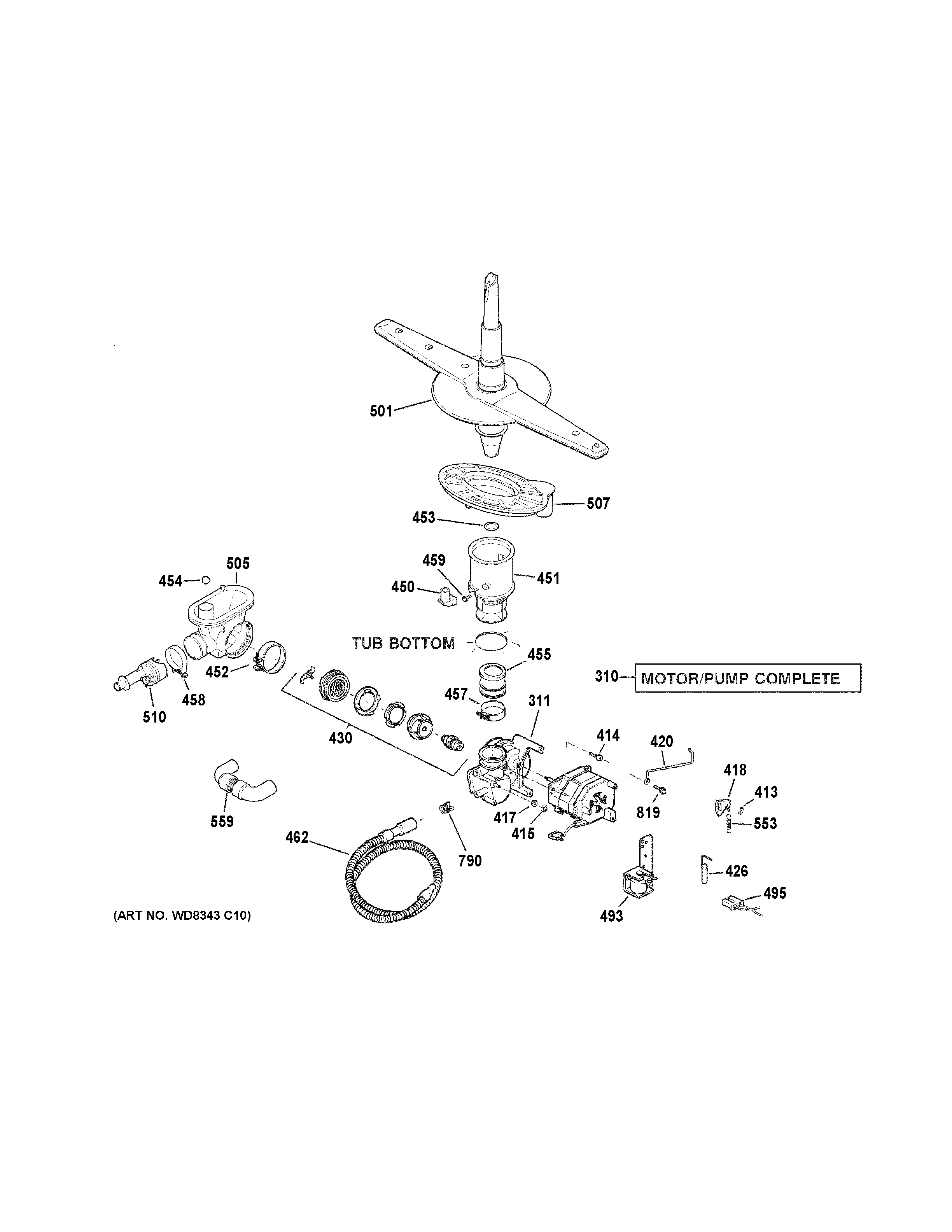

GSD3301K65WW MOTOR-PUMP MECHANISM

GSD3301K65WW MOTOR-PUMP MECHANISM

Written by

in

GSD3301K65WW MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10051 GE Dishwasher Drain Pump and Motor Assembly
311WD19X10020 GE Dishwasher Pump Housing
413E RING
414WD2X444 GE Dishwasher Mechanical Screw
415WR2X7054 GE Refrigerator Push-On Nut
417WD8X181 GE Dishwasher Pump Gasket
418WD01X22721 GE Dishwasher Arm Valve
420HANGER MECH
426ARMATURE&LNK
430WD19X10038 GE Dishwasher Impeller Kit
450WD01X10342 GE Dishwasher Coupler
451WD12X10244 GE Lower Spray Arm Supoort Base
452WD1X1392 GE Dishwasher Sump Clamp
453WD01X10340 GE Dishwasher Bearing
454WD12X10408 GE Range Filter Cartridge
455WD18X214 GE Dishwasher Pump to Wash Arm Rubber Connector
457WD1X1376 GE Dishwasher Clamp
458WD01X10341 GE Dishwasher Clamp
459WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
462WD24X10014 GE Dishwasher Drain Hose
493BRACKET & SOLENOID
495WD21X10356 GE Dishwasher Housing SPECIAL-Drain Solen
501WD22X10055 GE Dishwasher Spray Arm Weld
505WD18X10049 GE Dishwasher Sump Inlet
507WD12X10357 GE Replacement Filter
510WD12X22352 GE Dishwasher Collection Chamber
553WD3X721 GE Dishwasher Spring Set
559WD24X10041 GE Dishwasher Pump Hose
790WD01X10065 GE Dishwasher Hose Clamp
819WD02X10141 GE Dishwasher Screw 10-32 TT Hex
