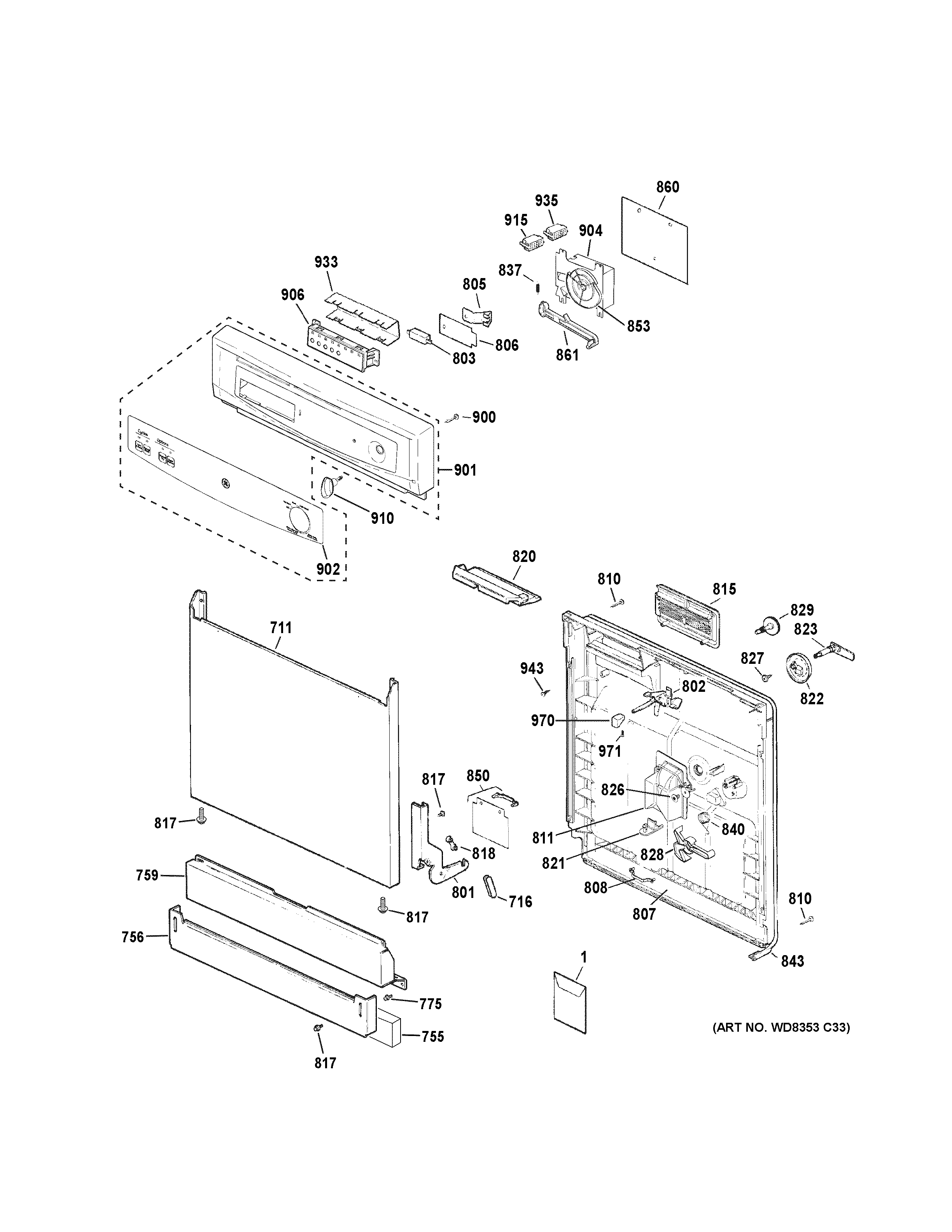

GSD3340K65SA ESCUTCHEON & DOOR ASSEMBLY

GSD3340K65SA ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD3340K65SA ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
1PM QUICK START GUIDE
1PM OWNERS MANUAL
711WD31X10080 GE Dishwasher Front Panel Finished WM
716WD14X10009 GE Dishwasher Hinge Link Arm
755WD27X21334 GE Insulation
756WD27X21876 GE Dishwasher Access Panel
759WD27X10068 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10264 GE Dishwasher Rinse Aid Tank Assembly
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD1X1467 GE Dishwasher Vent Pad
821WD01X10415 GE Dishwasher Rinse Aid Tank Clip
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837WD03X10034 GE Dishwasher Timer Lever Spring
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850WD31X10141 GE Dishwasher Timer Cover
853WD16X10012 GE Dishwasher Timer Cam
861WD12X324 GE Dishwasher Lever
900GEN WD02X10104
901WD34X22376 GE Dishwasher Escutcheon and Insert Assembly
902WD34X24199 GE Dishwasher Insert and Graphics Assembly
904TIMER
906WD21X10267 GE Dishwasher Pushbutton Switch
910WD09X10024 GE Dishwasher Timer Control Knob
915WD01X10349 GE Dishwasher Housing Terminal
933WD12X10154 GE Dishwasher Switch Cover
935GEN WD01X1434
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
970WD9X351 GE Latch Knob
971GEN WZ02X0045
