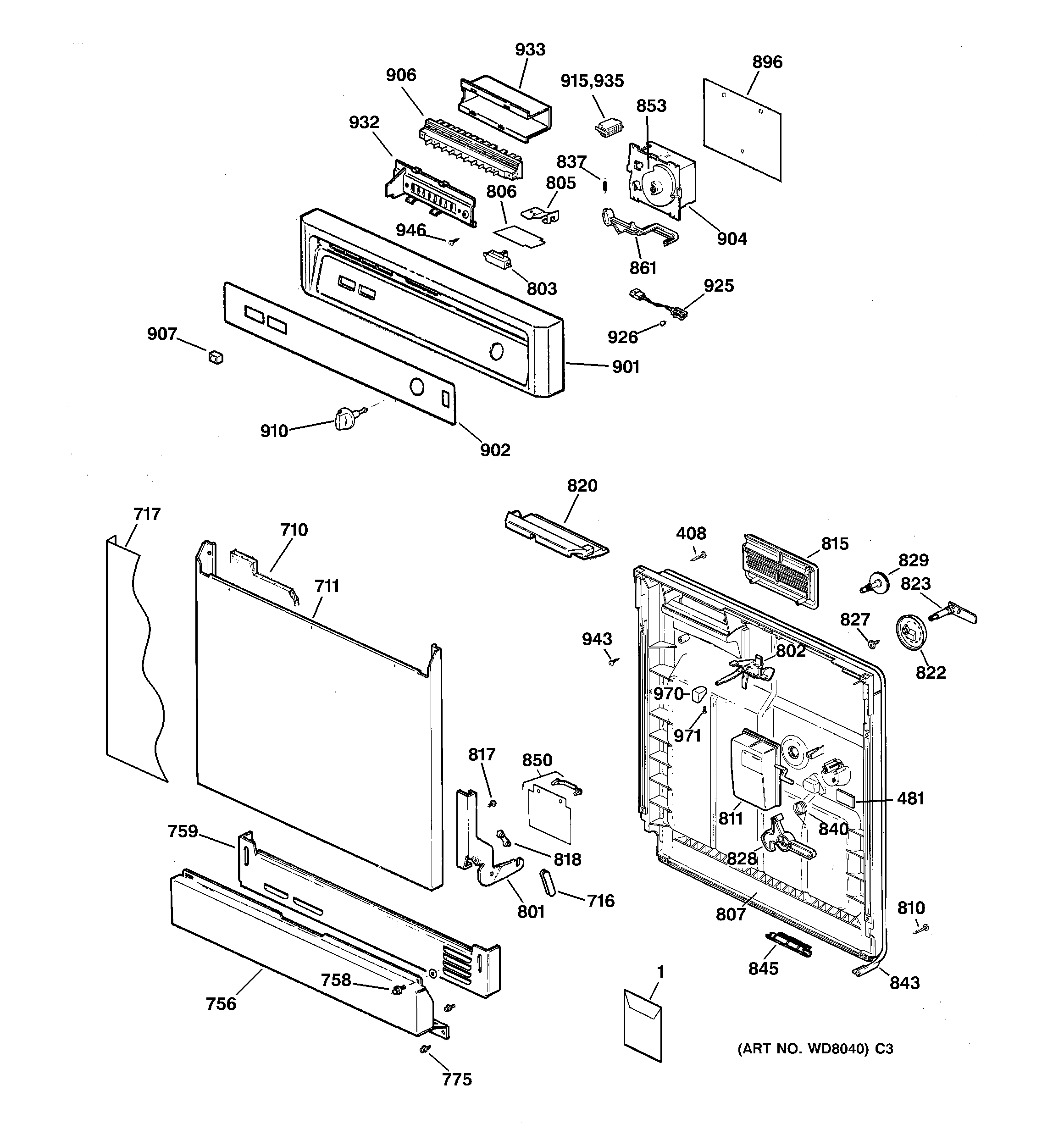

GSD3410Z05AA ESCUTCHEON & DOOR ASSEMBLY

GSD3410Z05AA ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD3410Z05AA ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-3081
1GEN 49-5870
1GEN 31-30130
408GEN WD02X0296
481GEN WD01X10016
710GEN WD01X10023
711PANEL FRONT
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10045
756GEN WD27X10031
758WD02X10054 GE Dishwasher Screw 8-32
759TOEKICK ASM
775WD2X5166 GE Dishwasher Screw
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801GEN WD14X10008
801GEN WD14X10007
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X0338
853GEN WD16X10003
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10176
901GEN WD34X10177
902GEN WD34X10084
904GEN WD21X10027
906GEN WD21X10028
907GEN WD09X0357
910GEN WD09X0356
915GEN WD01X1432
925GEN WD06X0242
926GEN WD01X1475
932GEN WD12X432
933COVER SWITCH
935GEN WD01X1434
943WZ5X219D GE Screw Package
946SCREW 6-22 X 13/32
970GEN WD09X0348
971GEN WZ02X0045
