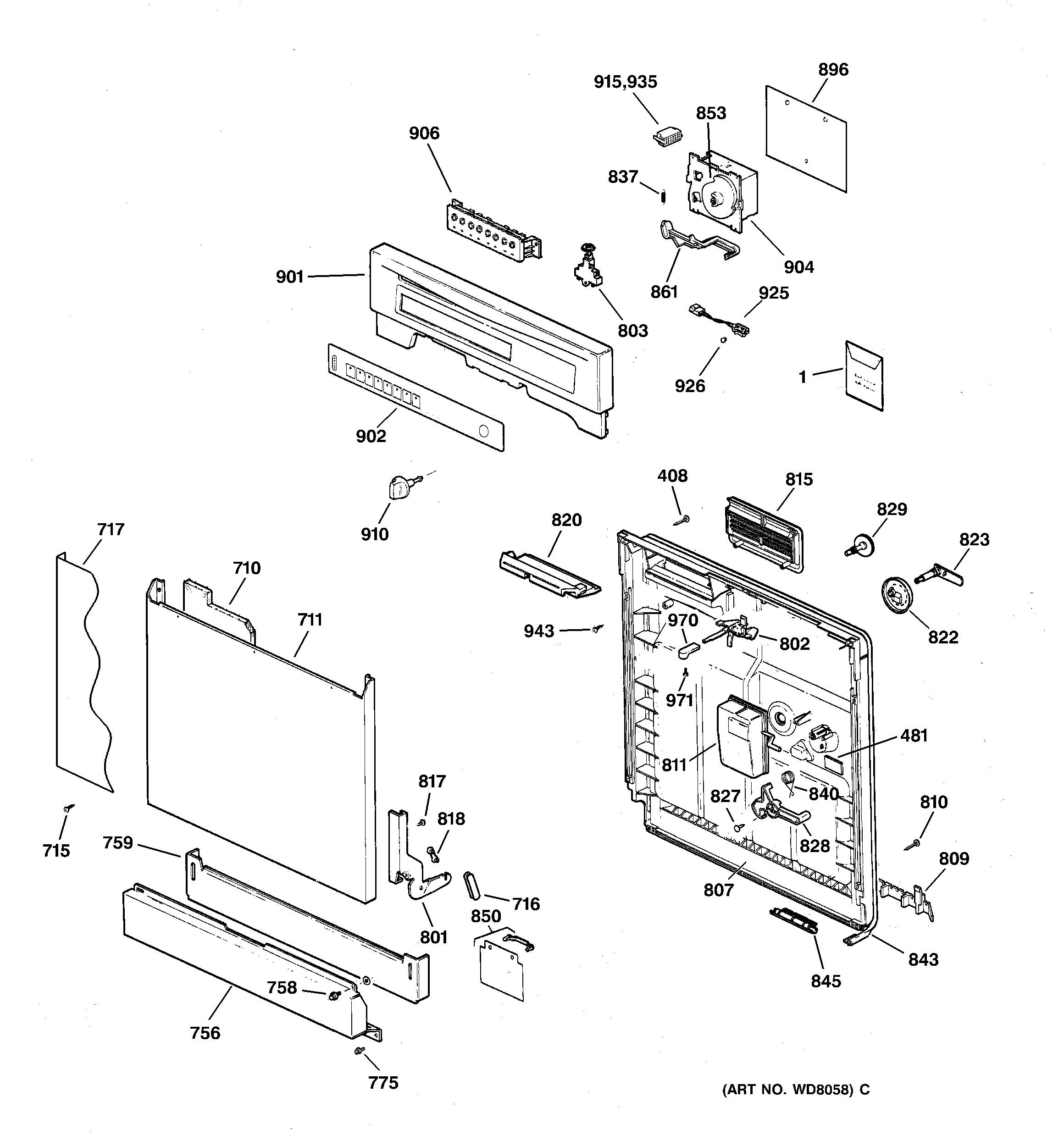

GSD3715D01AA ESCUTCHEON & DOOR ASSEMBLY

Written by

Products

Position	Product
1	GEN 49-5872
1	GEN 31-30312
1	GEN 31-30513
408	GEN WD02X0296
481	GEN WD01X10016
710	GEN WD01X10019
711	GEN WD31X10007
715	WD2X434 GE Dishwasher Trim Screw
716	WD14X10009 GE Dishwasher Hinge Link Arm
717	GEN WD27X10048
756	GEN WD27X10031
758	WD02X10054 GE Dishwasher Screw 8-32
759	TOEKICK ASM
775	WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775	WD2X5166 GE Dishwasher Screw
801	GEN WD14X10007
801	GEN WD14X10008
802	WD13X10003 GE Dishwasher Latch Assembly
803	GEN WD06X10003
807	WD31X10004 GE Door Inner Panel
809	GEN WD31X0312
810	WD2X322 GE Dishwasher Screw 8-18 x 7/8
811	WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815	WD12X10026 GE Dishwasher Vent Assembly
817	WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817	WD1X550 GE Dishwasher Screw
818	GEN WD12X10025
820	WD1X1467 GE Dishwasher Vent Pad
822	WD16X297 GE Dishwasher Detachable Cup Cover
823	WD16X313 GE Dishwasher Detergent Cup Shaft
827	GEN WD02X0425
828	WD16X10011 GE Dishwasher Detergent Dispenser Arm
829	WD12X10284 GE Dishwasher Fill Cap
837	GEN WD03X0749
840	WD3X764 GE Dishwasher Detergent Door Spring
843	WD08X10057 GE Dishwasher Door Gasket
845	WD08X10015 GE Dishwasher Gasket Insert
850	GEN WD12X0338
853	GEN WD16X10003
861	WD12X324 GE Dishwasher Lever
896	WD31X10141 GE Dishwasher Timer Cover
901	GEN WD34X10288
901	GEN WD34X10327
902	GEN WD34X10328
904	GEN WD21X10073
906	GEN WD21X10074
910	GEN WD09X10021
915	GEN WD01X1432
925	GEN WD06X10004
926	GEN WD01X10069
935	GEN WD01X1434
943	WZ5X219D GE Screw Package
970	GEN WD09X0348
971	GEN WZ02X0045
